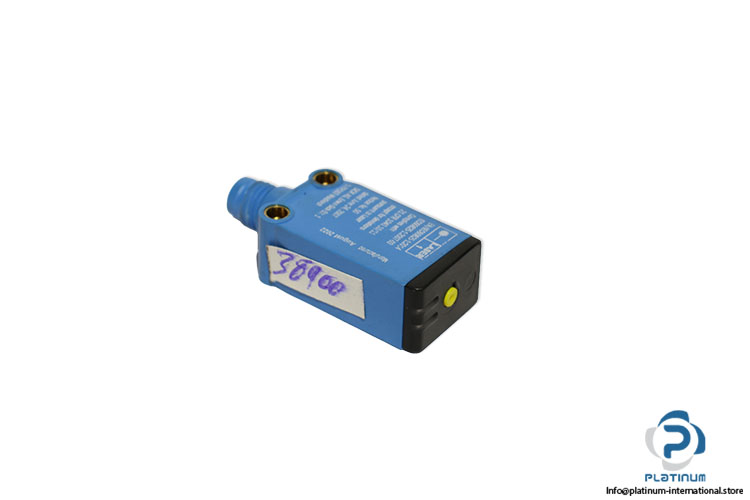

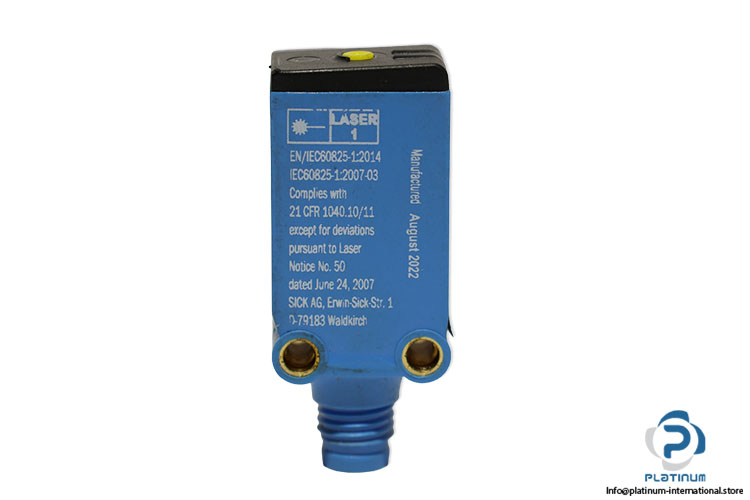

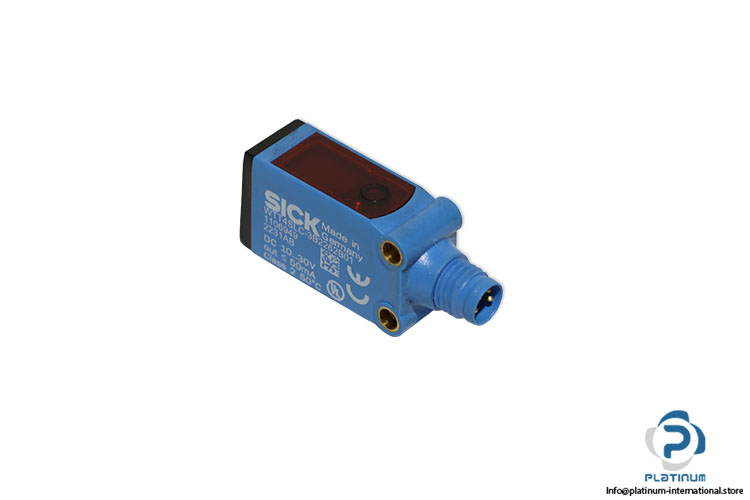

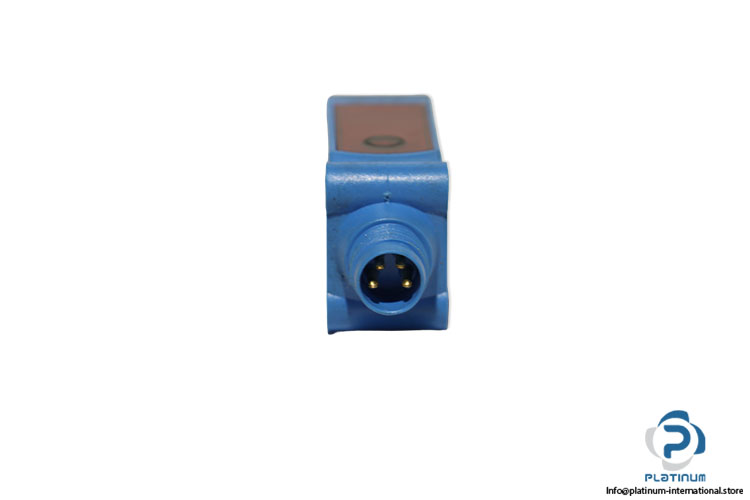

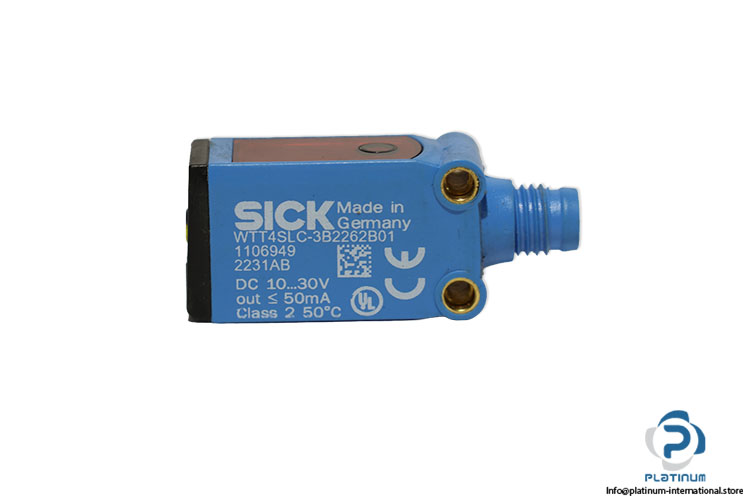

Sick WTT4SLC-3B2262B01 Time-OF-Flight Sensor
Usado
En stock1 unidadListo para enviar
Time of Flight Sensor The SICK WTT4SLC-3B2262B01 is a compact time-of-flight sensor with background suppression, laser technology and IO-Link, designed for precise industrial object detection and distance measurement.
Nuevo
En stock
Este producto también está disponible completamente nuevo
Ver nueva versión →
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 1106949 |
| Code | 2231AB |
| Functional principle | detail Background suppression, Optical time-of-flight, distance value |
| Supply voltage | 10 to 30 V DC |
| Output current Imax. | 50 mA |
| Switching frequency | 100 Hz |
| Switching mode | Light/dark switching |
| Switching output | Push-pull: PNP/NPN |
| Housing design | (light emission) Rectangular |
| Sensing range | 100 mm ... 1,300 mm |
| Connection type | Male connector M8, 4-pin |
| Type of light | Visible red light |
| Light source | Laser |
| Wave length | 658 nm |
| Class | 2 |
| Ambient operating temperature | -40 to +50 °C |
| Adjustment | Single teach-in button, IO-Link |
| Cycle time | 0.8 ms |
| Certificate | CE |
| Dimensions | 12.2 mm x 41.8 mm x 17.3 mm |
| Housing material | Plastic, MABS ABS |
| Optics material | Plastic, PMMA |
| Standard | EN/IEC60825-1:2014,EC60825-1:2007-03 |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100666 |
| Weight | 0,02 |
