Siemens 3LD2203-0TK51 Main Switch Disconnector
Nuevo
En stock1 unidadListo para enviar

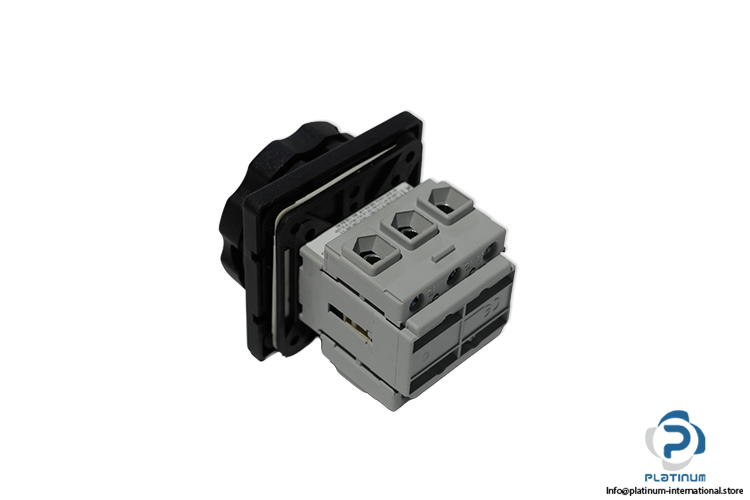

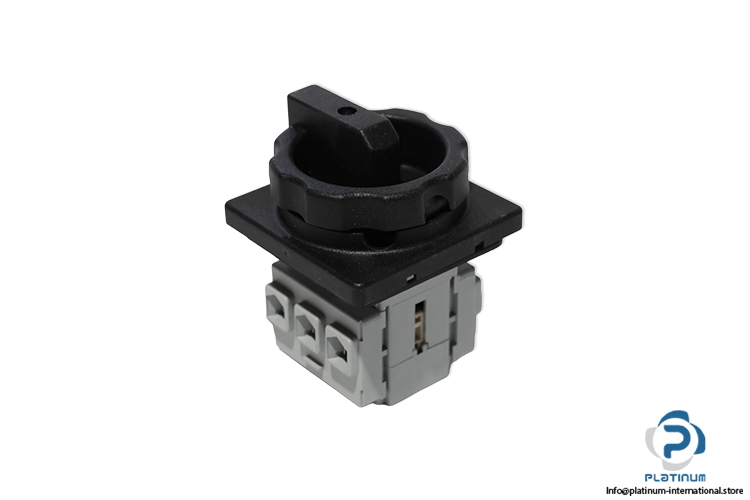

Main Switch Disconnector The SIEMENS 3LD2203-0TK51 SENTRON is a 3-pole main switch disconnector rated at 32 A and 690 V AC, with IP65 protection for industrial applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 3ZX1012-0LD20-1AT1 |
| Size | 2 |
| Brand | SENTRON |
| Operating Voltage | 690 V AC |
| Rated Current | 32 A |
| Frequency | 50 … 60 Hz |
| Poles No. | 3-Pole |
| Power AC-3 | 400/440 VAC 10/11.5 kW |
| Power Loss | 0.98 W |

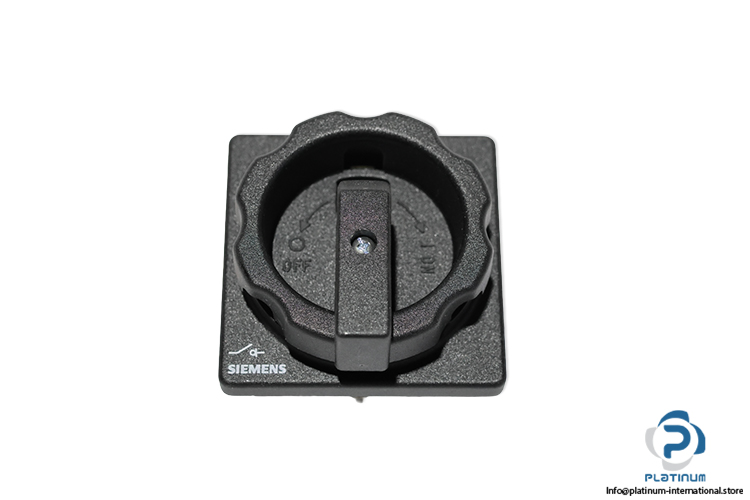

| Control Type | Short Rotary Knob |
| Protection Class | IP65 |
| Ambient Temperature | -25 … 55 °C |
| Dimensions | 83 x 63 x 93 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103757 |
| Weight | 0,20 |
