Siemens 3LD2830-0TK11 Switch Disconnector
Nuevo
En stock11 unidadesListo para enviar

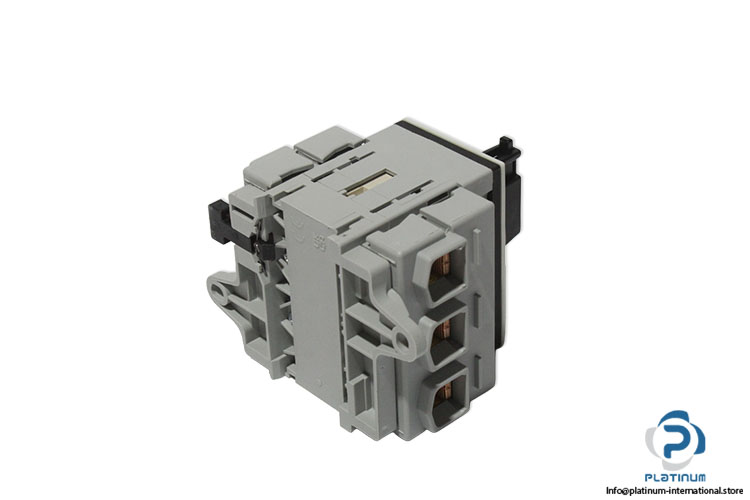

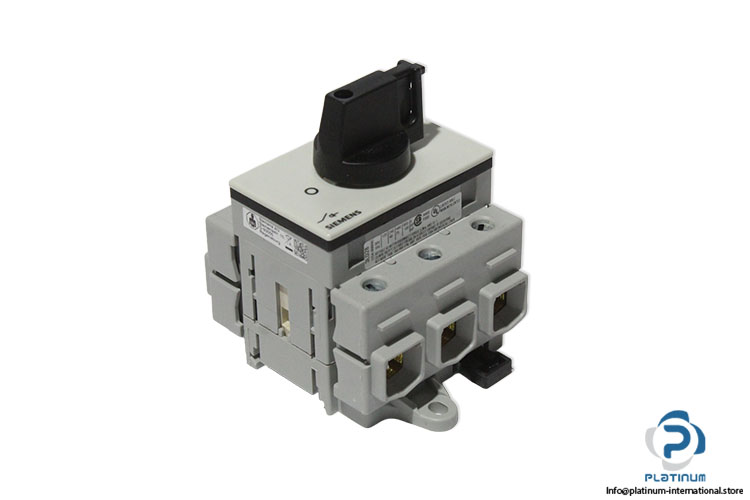

The SIEMENS SENTRON 3LD2830-0TK11 is a three-pole DIN-rail mounted switch disconnector rated for 690 V operation. Featuring a black knob-operated handle, IP40 protection, and AC-3 power rating up to 37 kW, it provides reliable isolation and switching for industrial electrical systems.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Code | 4422 |
| Brand Name | SENTRON |
| Type Of Switch | DIN-Rail Mounting |
| Display Version for Switch Position Indicator Manual Operation | 1 ON -0 OFF |
| Design Of Handle | Knob-Operated Mechanism, Black |
| Insulation Voltage | 690V |
| Surge Voltage Resistance | 6 kV |
| Operating Voltage | 690 V |
| Power Loss | 12 W |
| Power | at 400V: (AC23A: 4kW), (AC3: 37kW) |
| Number Of Poles | 3 |
| Size Of Switch Disconnector | 4 |
| Operating Frequency | 50 To 60 Hz |
| Fastening Method | Built-in unit fixed-mounted version |
| Dimensions | 83x71x97 mm |
| Ambient Temperature | -25 to 55 °C |
| Protection Degree | IP40 |
| Standard | IEC/EN 60947-3 |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093366 |
| Weight | 0,38 |
