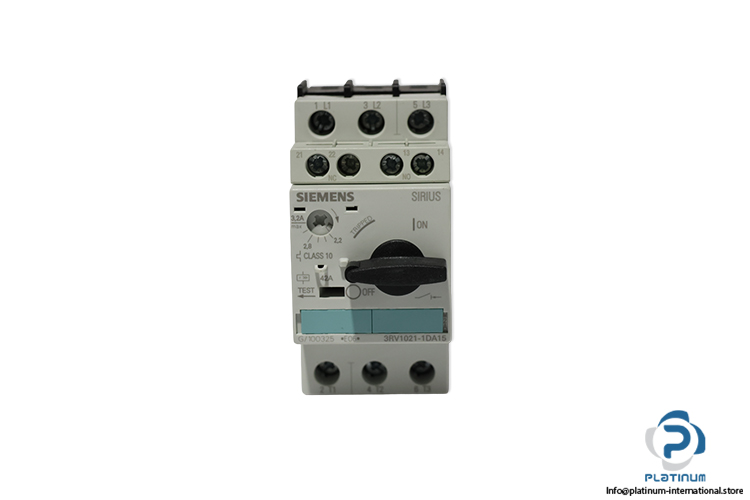

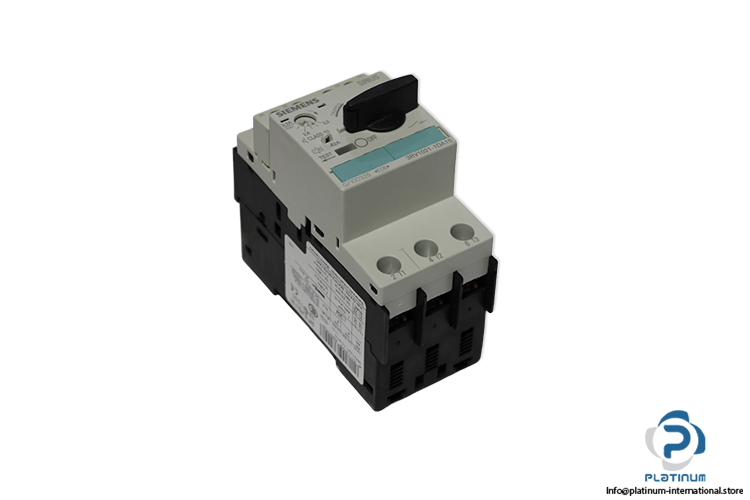

Siemens 3RV1021-1DA15 Circuit Breaker
Nuevo
En stock2 unidadesListo para enviar
Circuit Breaker The SIEMENS 3RV1021-1DA15 SIRIUS is a 3-pole motor protection circuit breaker with 2.2–3.2 A adjustable current and 690 V AC operating voltage.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Ord. No. | 3ZX1012-0RV02-1AA1 |
| Brand Name | SIRIUS |
| Size | S0 |
| Used for | Motor Protector |
| Operating Voltage | 690 V AC |
| Operating Current | 3.2 A |
| Short-Circuit Release Current | 42 A |
| Frequency | 50 … 60 Hz |
| Adjustable Current | 2.2 … 3.2 A |
| Operating Power | 1.1 kW |
| Power Loss | 6 W |
| Poles No. | 3-Poles |
| Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Rated Service Short-Circuit Breaking Capacity (Icu) | 400AC (100 kA) 690 (8 kA) |
| Protection Class | IP20 |
| Operation Temperature | -20 … 60 °C |
| Dimensions | 97 x 45 x 96 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103759 |
| Weight | 0,42 |
