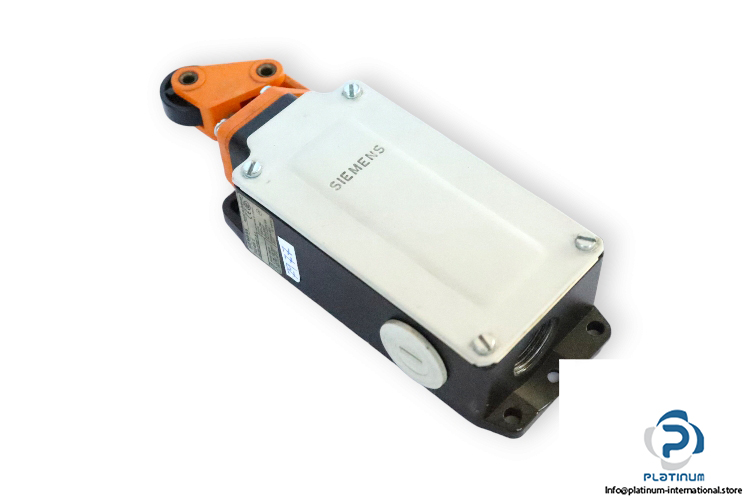

Siemens 3SE2 404-1E Position Switch

Manufacture: Siemens
Type: Position Switch

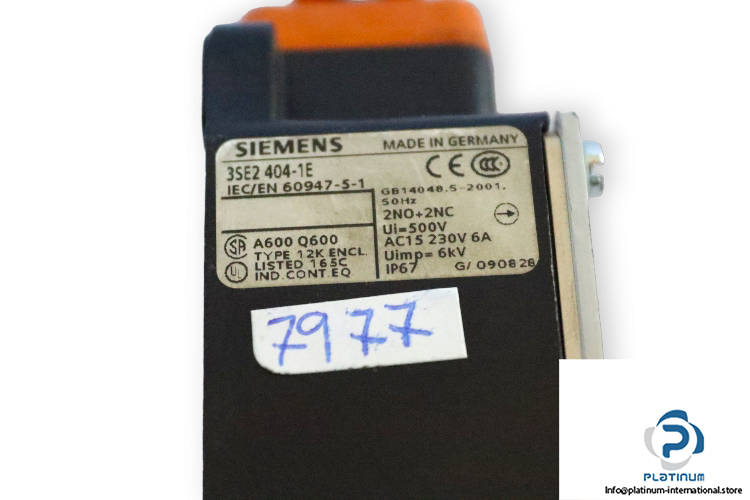

MNR: 3SE2 404-1E

Rated insulation voltage Ui: 500 V
Output Configuration: 2 NO+ 2 NC
Switching Voltage max.: 230 V AC
Contact Current max.: 6 A
Impulse with stand voltage Uimp: 6 kV

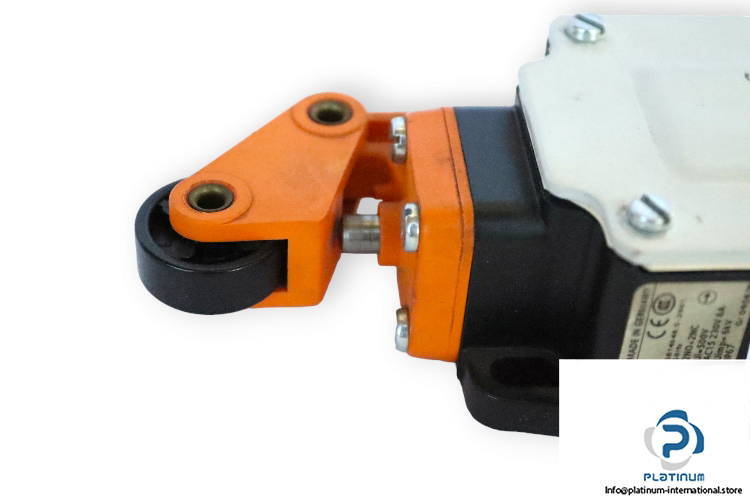

Design of the actuating element: roller lever
Design of the switching function: positive opening
Circuit principal: snap-action contacts
Protection Class: IP67
Fastening method: screw fixing
Type of electrical connection: screw-type terminals
Cable entries: 3 cables, M 20 x 1.5
Ambient temperature during operation: -30 … +85 °C
Dimensions: 56 x 166 x 39 mm
