Siemens 3SF1324-1SD21-1BK4 Safety Position Switch With Lock
Nuevo
Disponible bajo solicitud
SAFETY POSITION SWITCH WITH LOCK
Siemens SIRIUS mechanical safety switch with 1000 N locking force, 24 V DC magnet coil, IP66/IP69K protection, and multi-directional actuation for reliable industrial safety.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

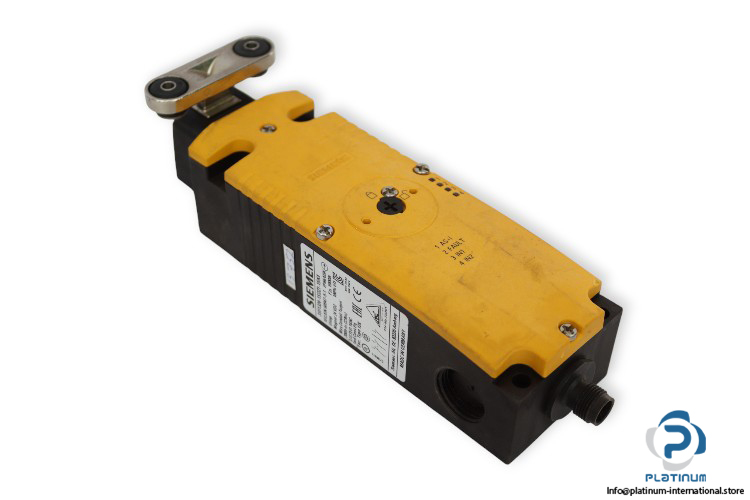

SIEMENS SIRIUS SAFETY POSITION SWITCH WITH LOCK “ 3SF13241SD211BK4
The Siemens SIRIUS 3SF13241SD211BK4 is a high-reliability mechanical safety switch with integrated locking, engineered for industrial safety applications. Designed in accordance with IEC/EN 60947-5-1 standards, it provides secure position monitoring and robust locking force for demanding environments.
Manufacturer: Siemens
Type: Safety Position Switch with Lock
Product Brand Name: SIRIUS
Product Designation: Mechanical Safety Switch
Product Type Designation: 3SF13
MNR: 3SF13241SD211BK4
| Supply Voltage of Magnet Coil | 24 V DC |
| Insulation Voltage Rated Value | 30 V |
| Surge Voltage Resistance Rated Value | 0.8 kV |
| Locking Force | 1000 N |
| Standard | IEC/EN 60947-5-1 |
| Monitoring Actuator Contact | 2 NC / 1 NO |
| Monitoring Magnet Contact | 2 NC / 1 NO |
| Design of the Housing | Special Design |
| Material of the Enclosure | Plastic |
| Design of the Switching Function | Positive Opening |
| No. of Actuation Directions | 5 |
| Mounting Type | Screw Fixing |
| Torque | 22 Nm |
| Type of Electrical Connection | M12 Plug, Fixed |
| Degree of Pollution | Class 3 |
| Protection Class | IP66, IP69K |
| Ambient Temperature During Operation | -25 / +60 °C |
| Dimensions | 159 x 44 x 60 mm |
