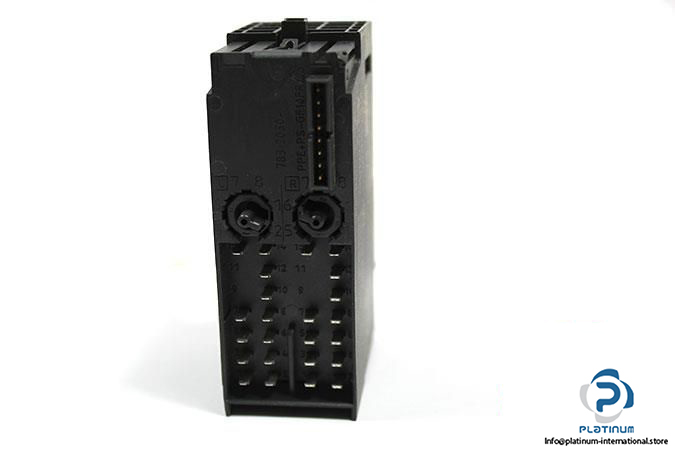

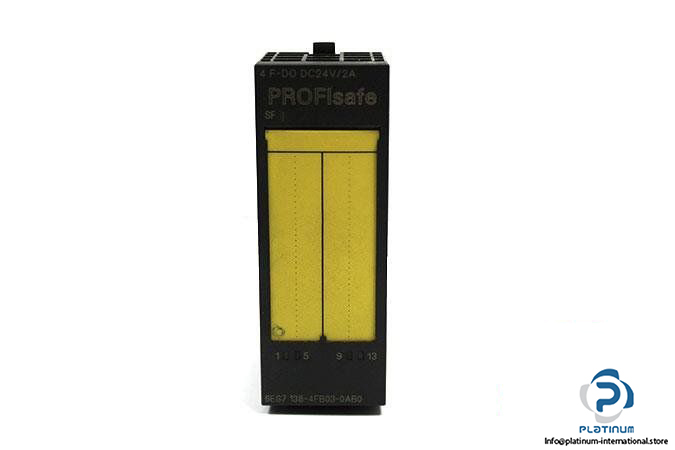

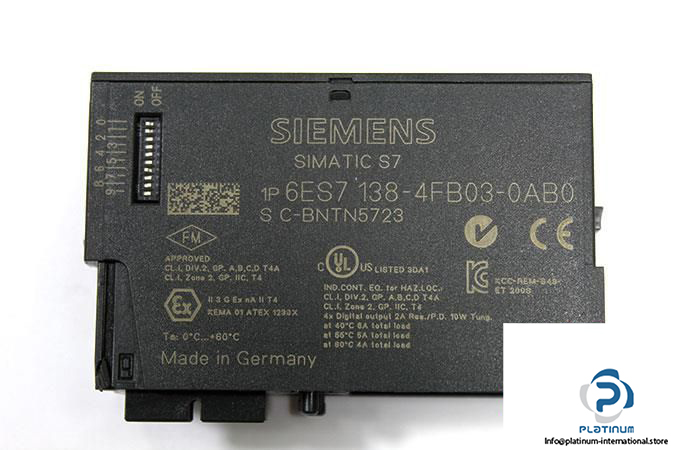

Siemens 6ES7 138-4FB03-0AB0 Electronics Module
MÓDULO ELECTRÓNICO Siemens 4 F-DO PROFIsafe módulo de salida digital para sistemas SIMATIC S7 y ET200S, 24VDC, 4 salidas, conforme a seguridad, con protección EX. Ideal para configuraciones PROFINET.
SIEMENS 4 F-DO PROFIsafe ELECTRONICS MODULE
The Siemens 4 F-DO PROFIsafe electronics module is a reliable digital output module designed for use with the SIMATIC S7 family, especially in ET200S decentralized I/O systems. It offers safety-compliant digital outputs and supports integration with PROFINET via IM 151-3 HF interfaces.
Manufacturer: SIEMENS
Type: Electronics Module
Model: 4 F-DO PROFIsafe
Family: SIMATIC S7
MRN: 6ES7138-4FB03-0AB0
Serial No.: C-BNTN5723
Uses: For ET200S, compatible with PROFINET via IM 151-3 HF
| Supply Voltage L+ | 24 V DC |
| Input Current | 28 mA from backplane bus (3.3 V DC) |
| Power Loss | 3.5 W |
| No. of Digital Outputs | 4 |
| Output Signal œ1 | Min L+ (-2 V), Rated 2A |
| Switching Frequency | 30 Hz (resistive), 0.1 Hz (inductive) |
| Switching Capacity | Max. 10 W on lamp load |
| Explosion Proof | EX |
| Dimensions (W x H x D) | 30 mm x 81 mm x 52 mm |
