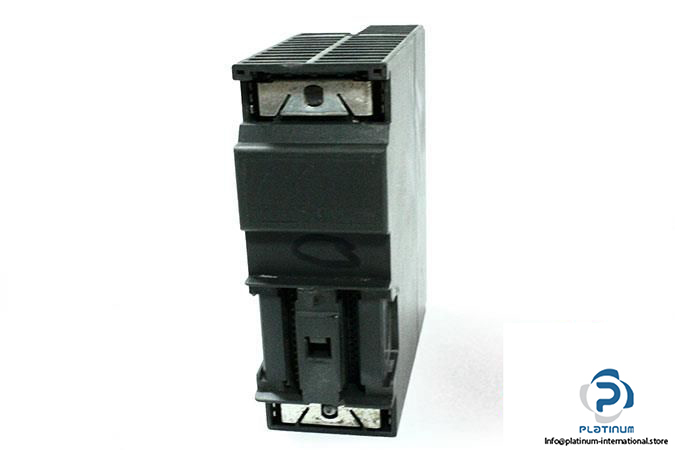

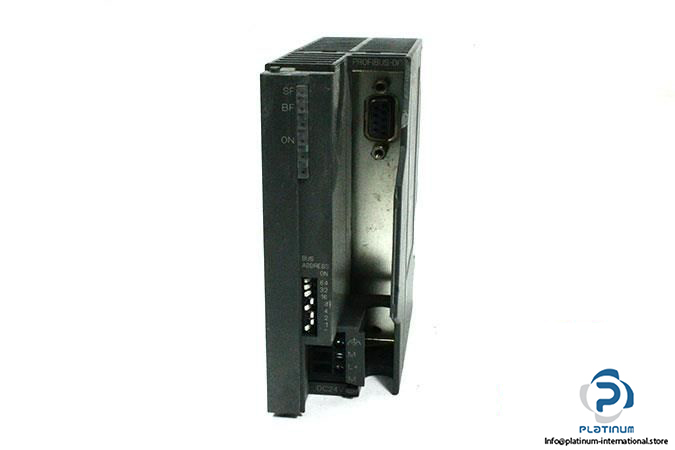

Siemens 6ES7 153-1AA03-0XB0 Interface Module
75,00$
MÓDULO DE INTERFAZ Siemens SIMATIC DP S7-300 IM 153-1 módulo de conexión que permite la comunicación PROFIBUS DP para sistemas de E/S ET 200M. Funciona a 24 V CC con alta eficiencia y diseño compacto.
SIEMENS SIMATIC DP S7-300 IM 153-1 INTERFACE MODULE
The Siemens SIMATIC DP S7-300 IM 153-1 is a high-performance connection interface module designed for ET 200M distributed I/O systems. This unit ensures seamless data communication via PROFIBUS DP for automation tasks, making it essential for reliable Siemens PLC integration.
Manufacturer: SIEMENS
Family: SIMATIC DP S7-300
Type: Connection Interface Module
Model: IM 153-1

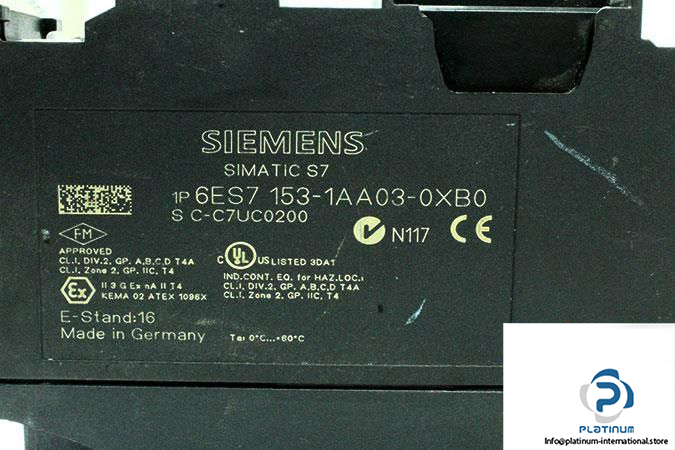

MRN: 6ES7153-1AA03-0XB0
SN: C-C7UC0200
E STAND: 16
Uses: For ET 200M Siemens PLC
| Supply Voltage | 24 V DC |
| Input Current | 350 mA |
| Inrush Current | typ. 2.5 A |
| Rated Output Voltage | 5 V DC |
| Output Current | 1 A for backplane bus 5 V DC |
| Power Loss | 3 W |
| Connection of PROFIBUS | 9-pin sub D socket |
| Isolation | Tested with 500 V |
| Protection | IP20 |
| Dimensions (W x H x D) | 40 × 125 × 117 mm |
| Operating Temperature | 0 / 60°C |
