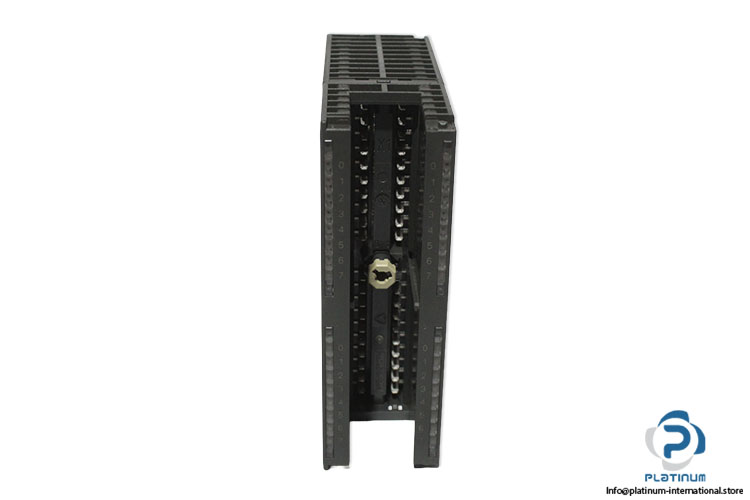

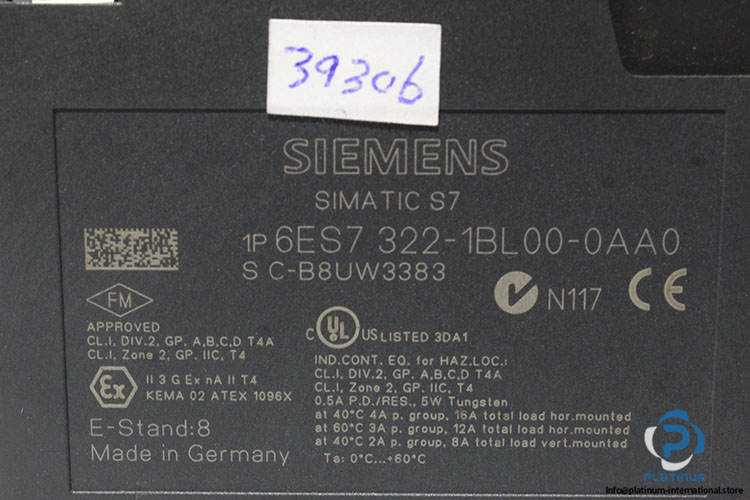

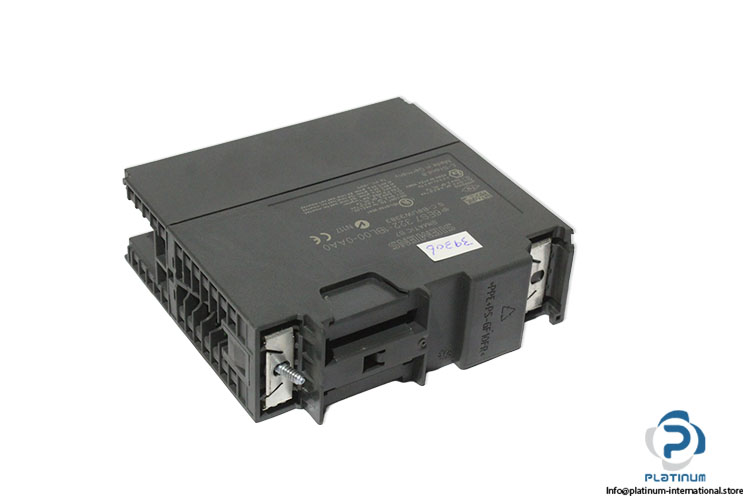

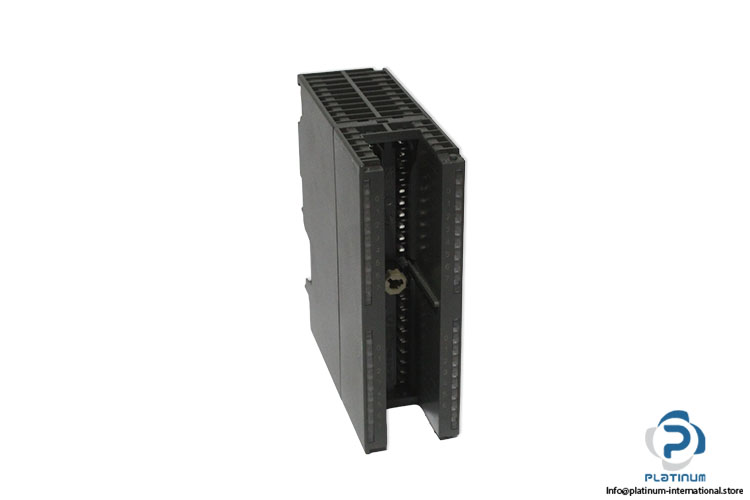

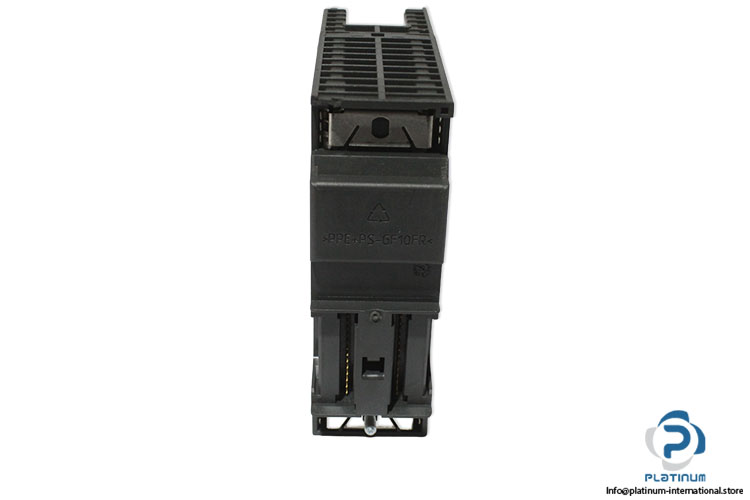

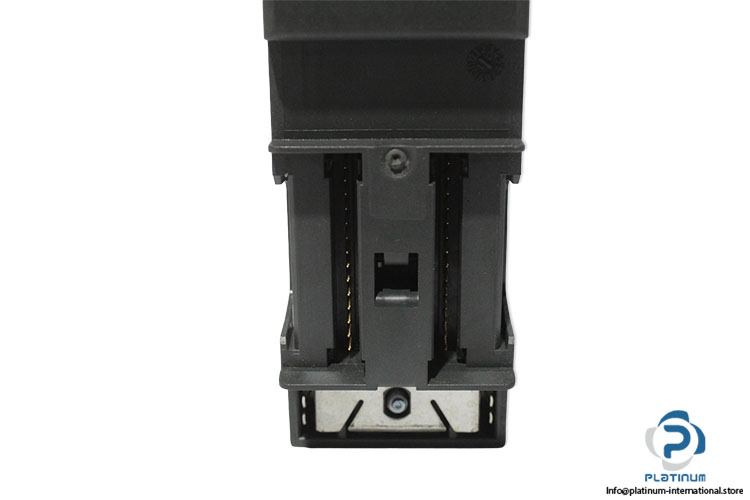

Siemens 6ES7 322-1BL00-0AA0 Digital Output Module
Nuevo
En stock1 unidadListo para enviar
Digital Output Module Siemens SIMATIC S7-300 digital output module with 32 digital outputs and 24 V DC supply, designed for industrial automation and control applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Serial NO. | C-B8UW3383 |
| Family | SIMATIC S7-300 |
| Supply Voltage | 24 V DC |
| Input Current | From load voltage L+ (max. 160 mA), From backplane bus 5 V DC (max. 110 mA) |
| Power Loss | 6.6 W |
| Number of Digital Outputs | 32 |
| Switching Capacity | Max. 5 W (lamp load) |
| Connection | 40-pin front connector required |
| Output Delay | Max. 100 µs (0 to 1), Max. 500 µs (1 to 0) |
| Dimensions | 40 x 125 x 120 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093735 |
| Weight | 0,26 |
