Siemens 6ES7 532-5HD00-0AB0 Analog Output Module
Nuevo
En stock2 unidadesListo para enviar
Analog Output Module SIEMENS SIMATIC S7-1500 analog output module with 4 analog outputs and 24 V DC supply, designed for industrial automation and control systems.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Serial NO. | C-DNS78926 |
| Family | SIMATIC S7-1500 |
| FS | 01 |
| FW | V2.0.0 |
| Product type designation | AQ 4xU/I ST |
| HW functional status | FS04 |
| Firmware version | V2.2.0 |
| Rated value | 24 V DC |
| permissible range, lower limit | 20.4 V DC |
| permissible range, upper limit | 28.8 V DC |
| Current consumption | max. 190 mA; with 24 V DC supply |
| Power | 0.6 W |
| Power loss | 4 W |
| Number of analog outputs | 4 |
| Voltage output, short-circuit current | max. 24 mA |
| Current output, no-load voltage | max. 22 V |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |

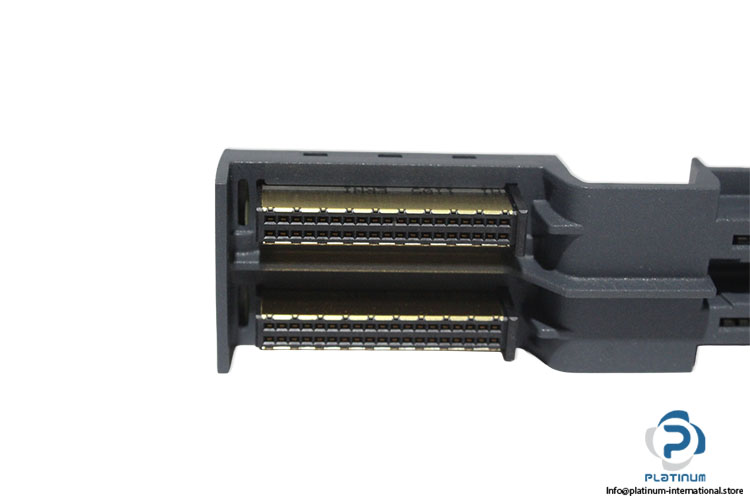

| Attachment1 | (Type of Attachment1: Front Connector Strip ,40-pin push-in terminal strip) |

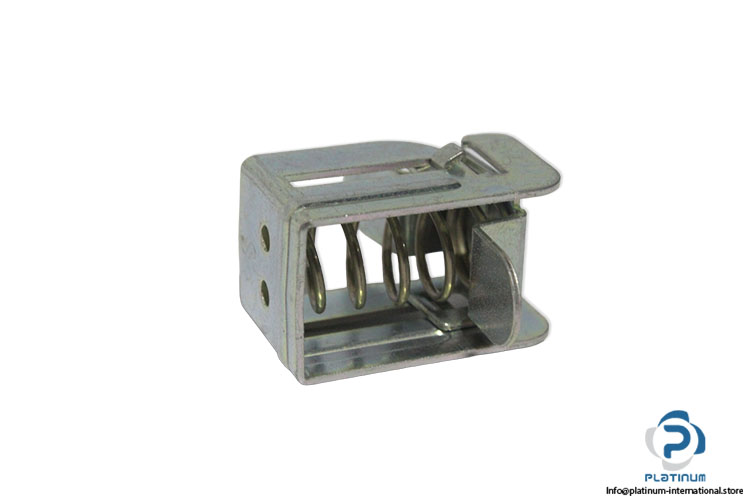

| Attachment2 | (Type of Attachment2: Shield Terminal Clamp) |

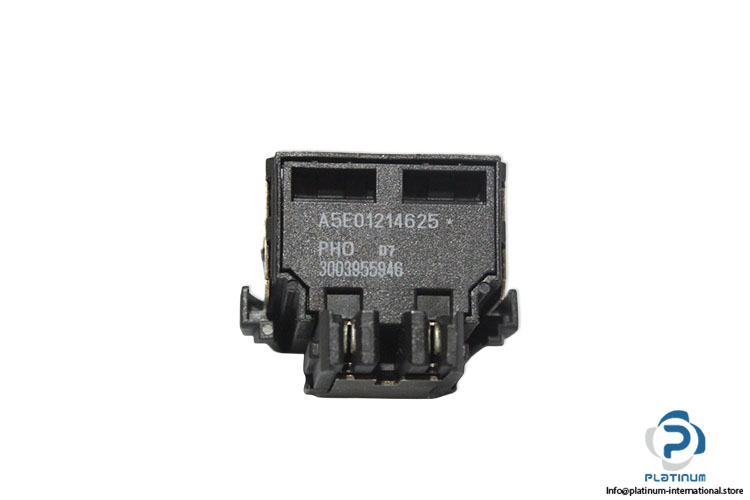

| Attachment3 | (Type of Attachment3: Infeed Power Connector Plug |
| Model of Attachment3 | A5E01214625, 3003955946 |
| Manufacturer of Attachment3 | PHO (Phoenix Contact)) |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093729 |
| Weight | 0,44 |
