Siemens 7ME65204BC122JB1 Electromagnetic Flow Sensor
Usado
En stock1 unidadListo para enviar
1 219,99$
Electromagnetic Flow Sensor
Siemens 7ME65204BC122JB1 Electromagnetic Flow Sensor with DN 125 diameter, Hastelloy C electrodes, and EPDM lining. Features a flow rate of 100 m3/h, max pressure of 16 bar, and temperature range of -10 to 70 °C.1005100W7ME65204BC122JB1CElectrodeelectromagneticEpdmFflowHastelloyIndustrialLiningMm³/hMAGRateSensorSiemensSitrans
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

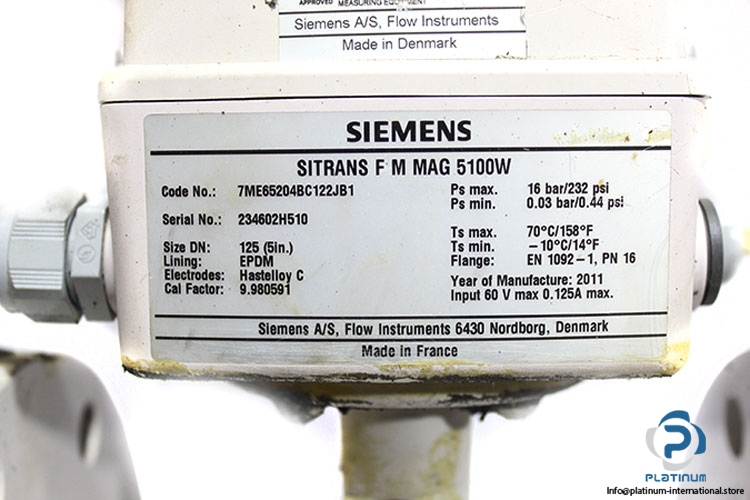

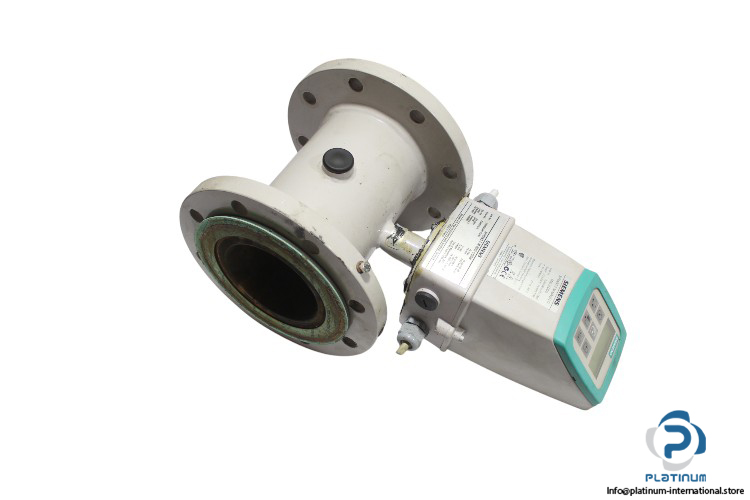

Siemens 7ME65204BC122JB1 Electromagnetic Flow Sensor
The Siemens 7ME65204BC122JB1 Electromagnetic Flow Sensor offers precise measurement for flow rate, ideal for industrial applications requiring high accuracy. The SITRANS F M MAG 5100W family provides reliable operation with excellent corrosion resistance.
Manufacturer: Siemens
Model: 7ME65204BC122JB1
Type: Electromagnetic Flow Sensor
Serial No.: 234602H510
Family: SITRANS F M MAG 5100W
Technical Information:
| Input Max. Voltage [V] | 60 |
| Input Max. Current [A] | 0.125 |
| Flow Rate [m3/h] | 100 |
| Diameter Nominal [mm] | DN 125 (5 inch) |
| Lining | EPDM |
| Electrodes | Hastelloy C |
| Cal Factor | 9.980591 |
| Max. Pressure [bar] | 16 |
| Min. Pressure [bar] | 0.03 |
| Range Temperature [°C] | -10 to 70 |
| Material (Housing and Flanges) | Carbon steel ASTM A 105, with corrosion resistant coating |
| Flange | EN 1092-1, PN 16 |

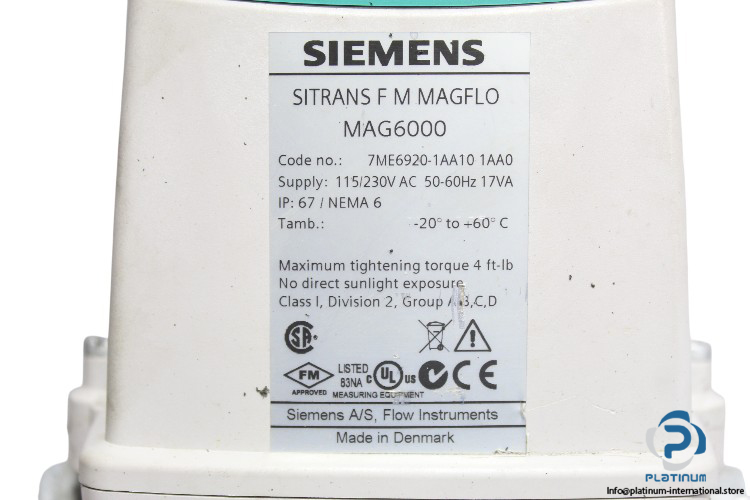

| Attachment | SIEMENS 7ME6920-1AA10 1AA0 TRANSMITTER |
| Family | SITRANS F M MAGFLO MAG6000 |
| Supply | 115 to 230 V AC |
| Frequency | 50-60 Hz |
| Power | 17 VA |
| Temperature | -20 to 60 °C |
| Maximum Tightening Torque | 4 ft-lb |

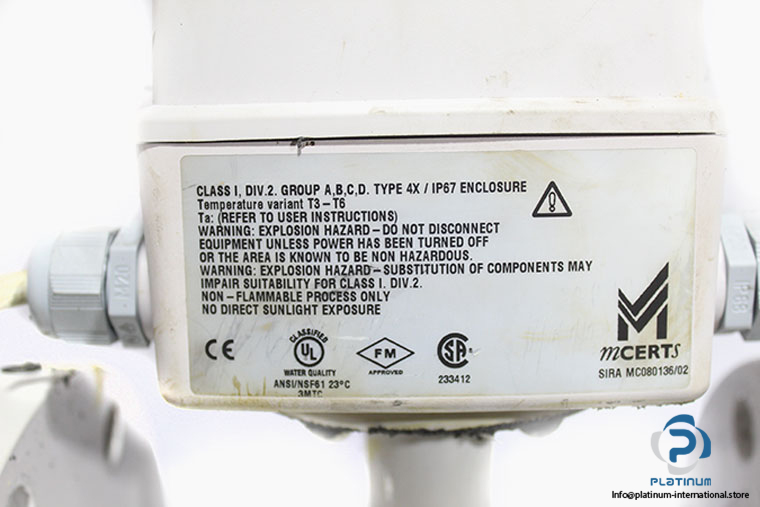

| Class | I |
| Group | A, B, C, D |
| Enclosure Protection [IP] | IP67 / NEMA 4X/6 |
