Siko IG07-3057 Incremental Encoder
Usado
En stock1 unidadListo para enviar
177,50$
Codificador incremental óptico SIKO IG073057 (ABO117PP) con eje hueco, resolución 1024 PPR, funcionamiento 10-30 V CC, protección IP64/IP65 y cuerpo de zinc fundido para uso industrial.
ABO117PPAutomationEncoderHighhollowIG073057IncrementalIndustrialIP65OpticalPositionResolutionSensorshaftSiko
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

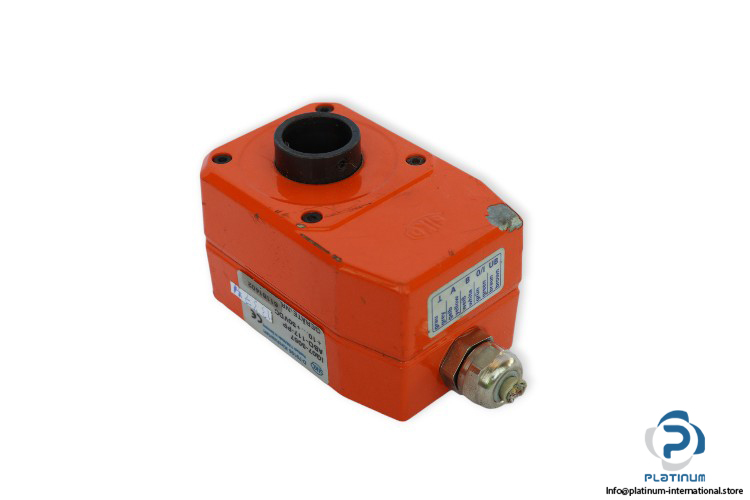

SIKO IG073057 INCREMENTAL ENCODER
The SIKO IG073057 (Alternative Model: ABO117PP) is a high-performance optical incremental encoder engineered for precision positioning and reliable signal transmission in industrial automation systems. Its rugged build and high resolution make it ideal for demanding environments.

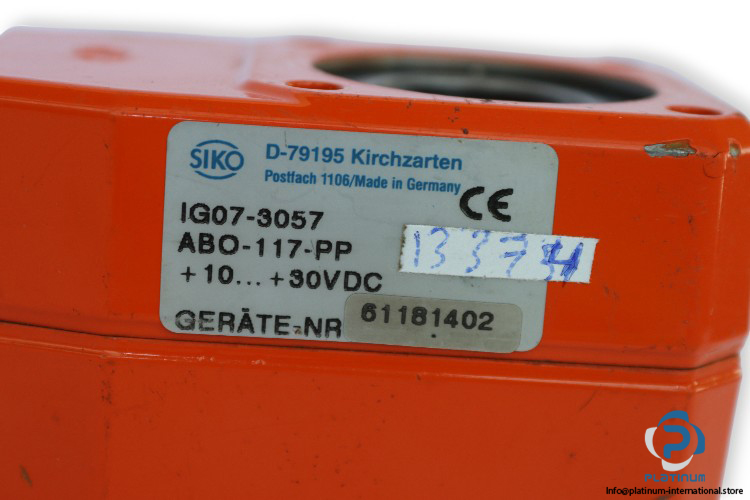

Manufacturer: SIKO
Type: Incremental Encoder
Model: IG073057
Alternative Model: ABO117PP
Part No: 61181402
| Measuring Mode | Optical |
| Shaft Type | Hollow Shaft |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption Max. | 40 mA |
| Resolution Max. | 1024 PPR (Pulses/Revolution) |
| Shaft Load Rating | 1400 N Axial / 5600 N Radial |
| Shaft Diameter Max. | 20 mm |
| Connection | Cable |
| Material | Zinc, Die-Cast |
| Protection Class | IP64 / IP65 |
| Operating Temperature | 0 / 60 °C |
| Dimensions | 89 x 58 x 52 mm |
