SKF Nukre 80 A Stud Type Track Roller
Rodillo de vía de tipo espárrago El rodillo de vía de tipo espárrago SKF NUKRE 80 A cuenta con un diámetro exterior de 80 mm, rosca M30x1.5 y sellos dobles a ambos lados, diseñado para alta capacidad de carga y estabilidad en aplicaciones industriales.

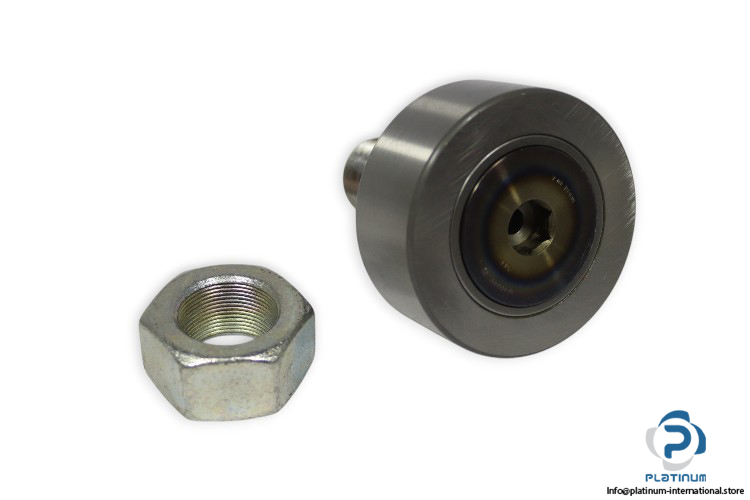

SKF NUKRE 80 A Stud Type Track Roller
The SKF NUKRE 80 A Stud Type Track Roller is engineered for high-load applications, offering durability and reliability. This roller is designed with dual side seals and a hexagonal recess for tightening, ensuring stable performance in demanding industrial environments.
Manufacturer: SKF
Type: STUD TYPE TRACK ROLLER
Model: NUKRE 80 A
Basic Load Ratings:
This SKF stud type track roller is built to deliver high performance and durability in heavy-duty applications, ensuring smooth operation and long-lasting stability in industrial systems.
| Outside Diameter (D) | 80 mm |
| Attachment Diameter (d) | 35 mm |
| Total Length (B) | 100 mm |
| Width Outer Ring (C) | 35 mm |
| Thread Stud (G) | M30x1.5 |
| Dynamic Load Rating (C) | 69.3 kN |
| Static Load Rating (C0) | 86.5 kN |
| Fatigue Load Limit (Pu) | 10.8 kN |
| Limiting Speed | 1900 r/min |
| Sealing | Seal on both sides |
| Number of Flanges (Outer Ring) | 2 |
| Feature for Tightening | Hexagonal recess |
