SKF Nutr 20 Support Roller
Nuevo
En stock2 unidadesListo para enviar
Rodillo de soporte SKF NUTR 20 con agujero de 20 mm, diámetro exterior de 47 mm y alta capacidad de carga dinámica, diseñado para guía lineal de precisión y aplicaciones industriales de alta resistencia.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

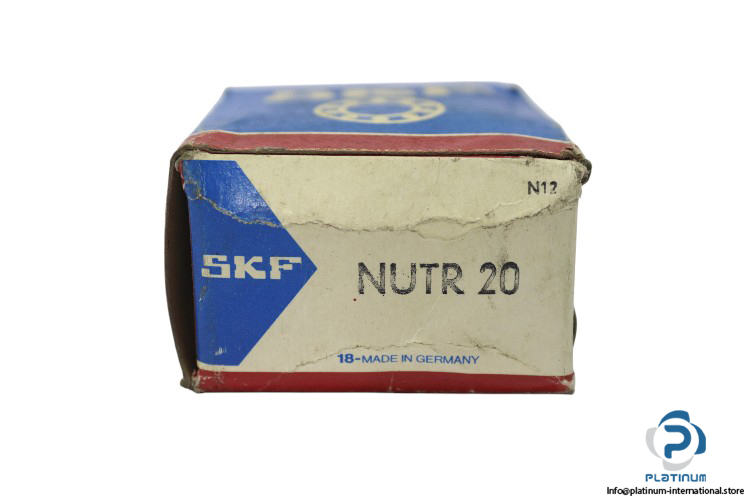

SKF NUTR 20 SUPPORT ROLLER
The SKF NUTR 20 is a high-performance support roller designed for applications requiring heavy radial load handling, durability, and precise motion support. Built with SKF's trusted engineering, it offers superior static and dynamic load ratings, making it ideal for track runner systems and industrial machinery.
Manufacturer: SKF
Type: Support Roller
Model: NUTR 20
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width Outer Ring (C) | 24 mm |
| Total Width | 25 mm |
| Dynamic Load Rating (C) | 28.6 kN |
| Static Load Rating (C0) | 33.5 kN |
| Fatigue Load Limit (Pu) | 3.9 kN |
| Maximum Dynamic Radial Loads (Fr) | 17.6 kN |
| Maximum Static Radial Loads (F0R) | 25 kN |
| Limiting Speed | 3800 rpm |
