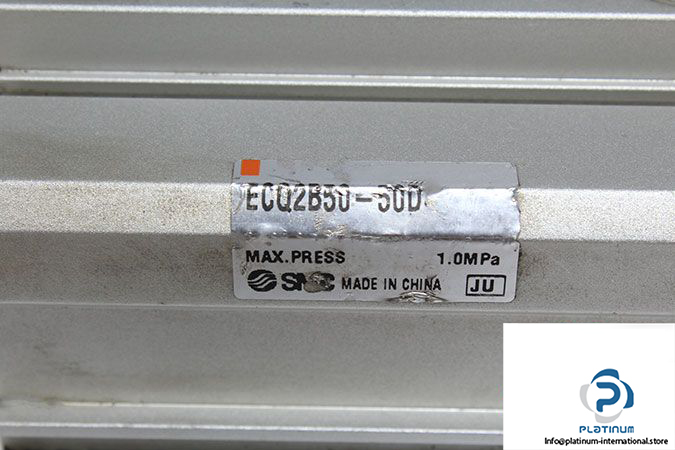

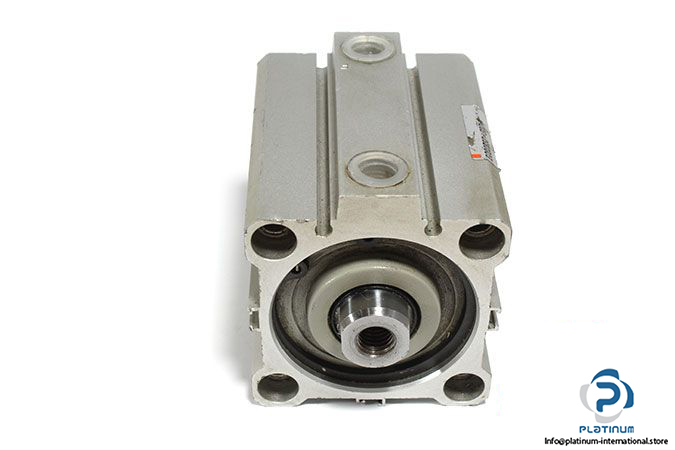

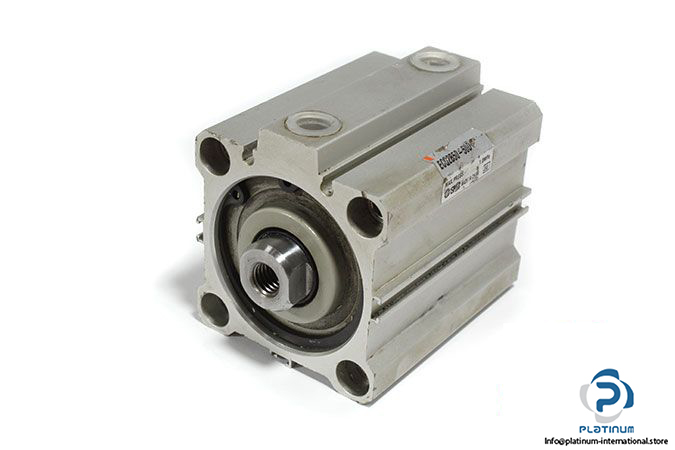

SMC ECQ2B50-50D Compact Cylinder

Manufacturer: SMC

Type: Double Acting Compact Cylinder

Model: ECQ2B50-50D

Mounting: Through-hole (Standard)

Bore size: 50 mm

Stroke Length: 50 mm

Mode of operation: Double Acting

Piston rod thread: Female thread

Pneumatic Connection: G 1/4

Compact cylinder type: Standard

Fluid: Air

Max. Operating pressure: 1.0 Mpa

Temperature: -5 … 60 °C

Weight: 0.65 kg
