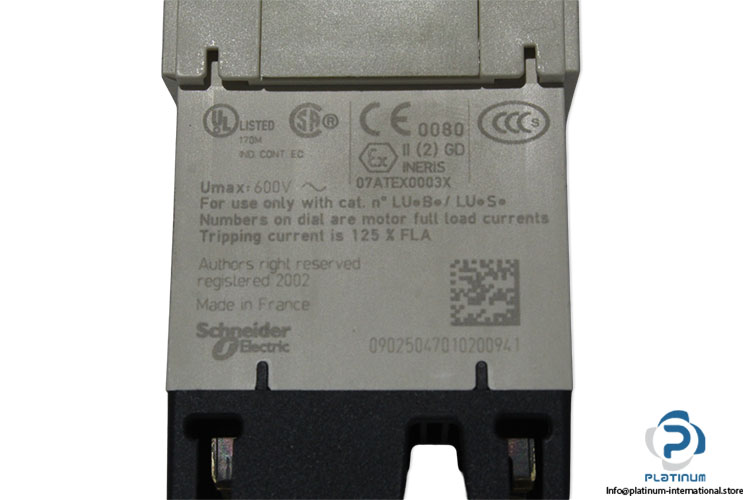

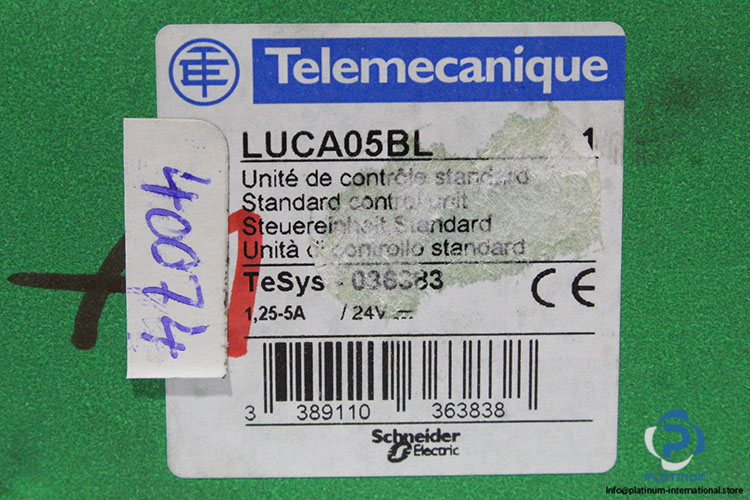

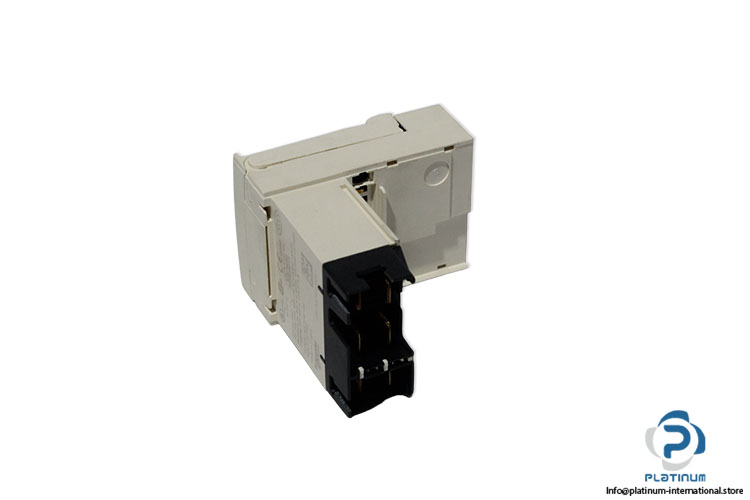

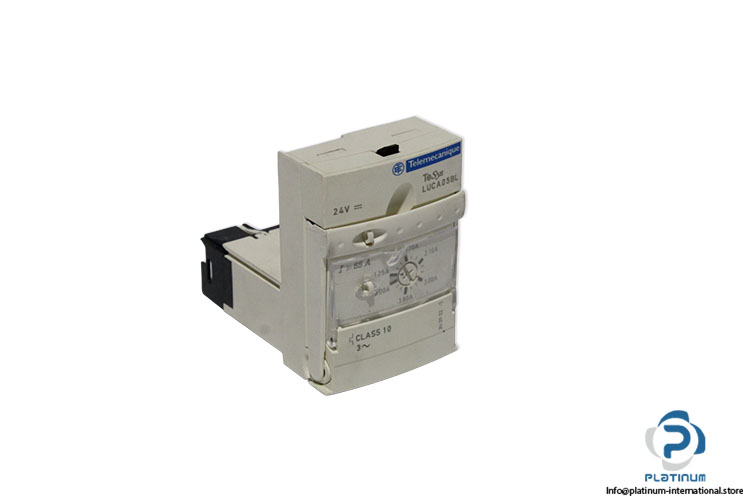

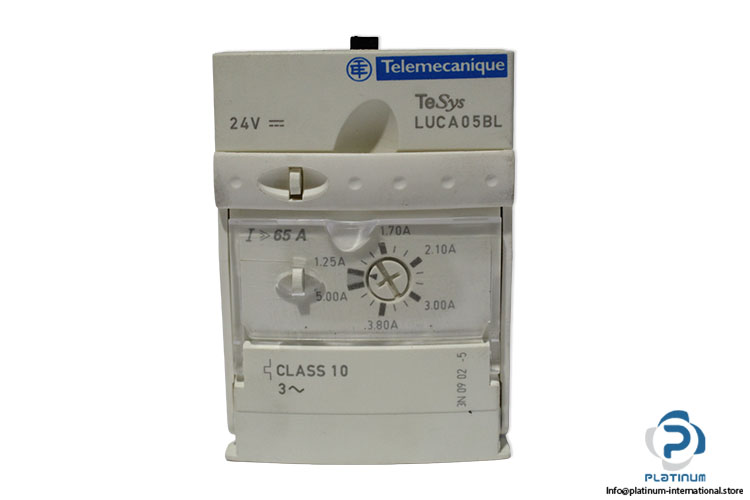

Telemecanique LUCA05BL Control Unit
Nuevo
En stock1 unidadListo para enviar
Control Unit The Telemecanique LUCA05BL is a TeSys control unit designed for reliable motor control and protection, with a 1.25–5 A adjustment range.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 036383 |
| Range | TeSys |
| Short Name | LUCA |
| Application | Motor Control / Motor Protection |
| Coil Voltage | 24 V DC |
| Rated Operational Voltage | 690 V AC |
| Rated Motor Current Adjustment Range | 1.25 … 5 A |
| Frequency | 40 … 60 Hz |
| Motor Power | 0.25 kW, 400 ... 440 V AC, 50 … 60 Hz |
| Load Type | 3-Phase Motor Self-Cooled |
| Rated Insulation Voltage Ui | 600 / 690 V |
| Rated Impulse Voltage (Uimp) | 8 kV |
| Protection Class | IP20 |
| Ambient Temperature | -25…70 °C |
| Dimensions | 66 x 45 x 60 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103877 |
| Weight | 0,12 |
