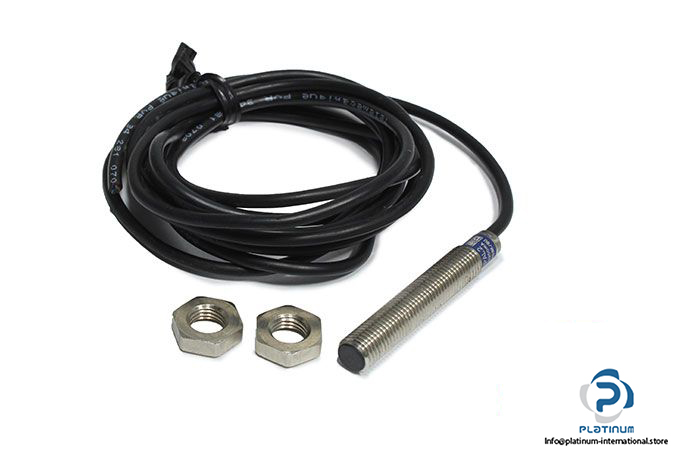

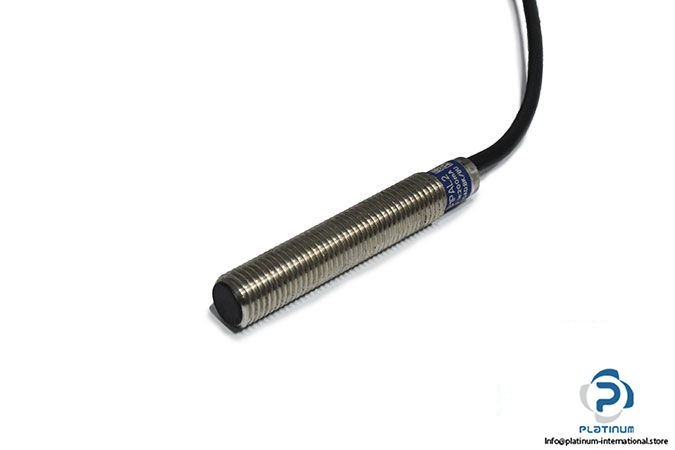

Telemecanique XS608B1PAL2 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: inductive Sensor

Model: XS608B1PAL2

Sensor Design: Cylindrical M8

Detector Flush Mounting Acceptance: Flush mountable

Material: Stainless steel

Wiring Technique: 3-wire

Nominal Sensing Distance: 2.5 mm

Discrete Output Function: 1 NO

Discrete Output Type: PNP

Electrical Connection: Cable

Cable Length: 2 m

Rated Supply Voltage: 12 … 48 VDC

Switching Capacity: <= 200
Degree of Protection: IP67

Thread Type: M8 x 1

Ambient Air Temperature for Operation: -25 … 70 °C

Diameter, Length: 8 mm, 51 mm

Weight: 0.035 Kg
