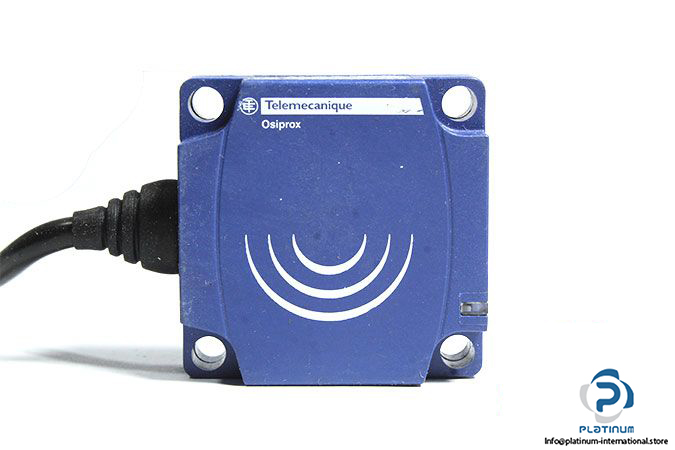

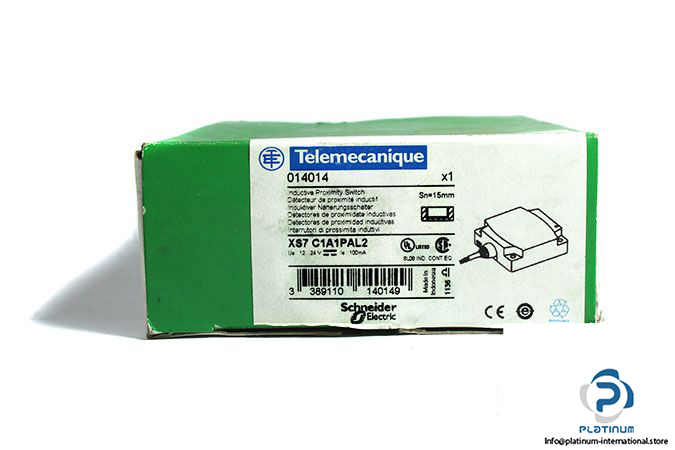

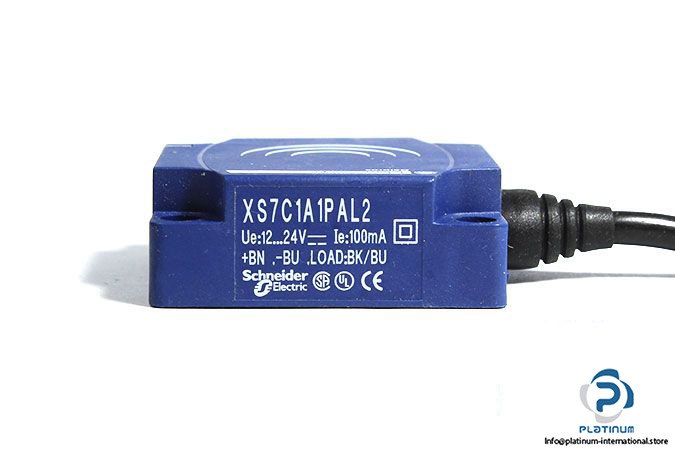

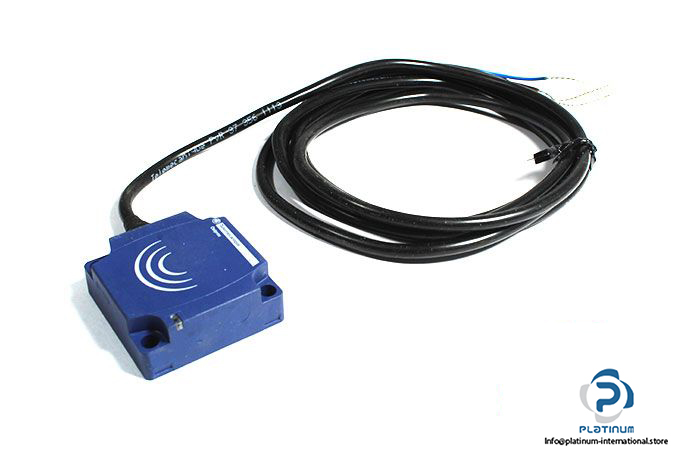

Telemecanique XS7C1A1PAL2 Inductive Sensor

Manufacturer: Schneider  Telemecanique

Type: Inductive Sensor

Model: XS7C1A1PAL2

Part No.: 014014



Range of Product: OsiSense XS

Series Name: General Purpose

Nominal Sensing Distance: 15 mm

Voltage Limits: 12 … 24 V DC

Switching Capacity: 100 mA

Current Consumption, No-Load: 10 mA

Detector Acceptance: Flush Mountable

Output Type: PNP

Output Function: Normally Open

Switching Frequency: 1000 Hz

Body Type: Fixed

Material: Plastic

Enclosure Material: PBT

Connection: Cable 2m, 3 Wire

Type of Output Signal: Discrete

Output State: LED (yellow)

Dimensions: 40 x 40 x 15 mm

Degree of Protection: IP68

Ambient Temperature: -25 … 70 °C

Weight: 0.12 kg
