THK BLK1510-5.6ZZ Ball Screw
Usado
En stock1 unidadListo para enviar

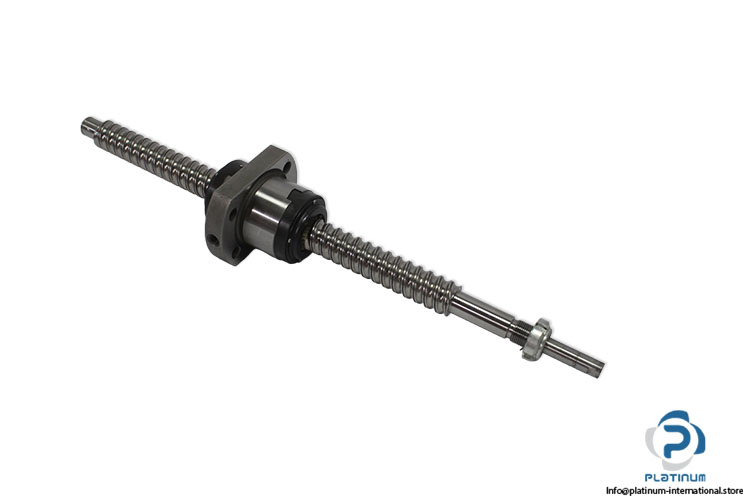

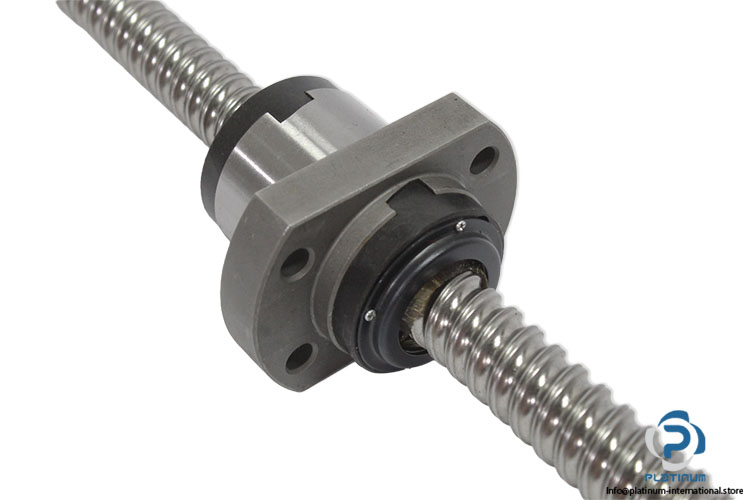

Ball Screw THK BLK series precision ball screw with a 15 mm nominal diameter, 10 mm lead, right-hand thread, and ZZ brush seals, designed for accurate linear motion and industrial automation applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Series | BLK |

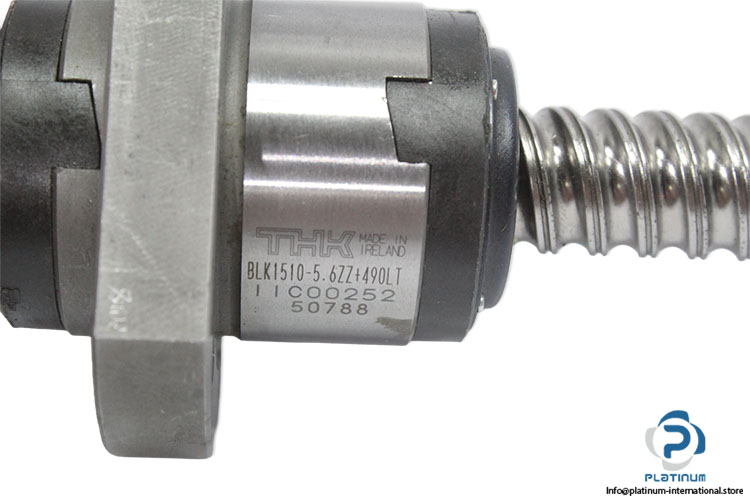

| Code | IIC00252/50788/BLK1510-5.6ZZ+490LT |
| Size | 15X10R |
| Nominal Diameter | 15 mm |
| Lead P | 10 |
| Number of starts | 2 |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 34 mm |
| Flange diameter | 57 mm |
| Flange thickness | 10 mm |
| Cutting Flange Width | 40 mm |
| Nut length | 51 mm |
| Threaded length | 195 mm |
| Total screw length | 275 mm |
| ZZ | brush seal attached to both ends of the ball screw nut |
| Dynamic Load Rating C | 9.8 kN |
| Static Load Rating C0 | 25.2 kN |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100116 |
| Weight | 0,55 |
