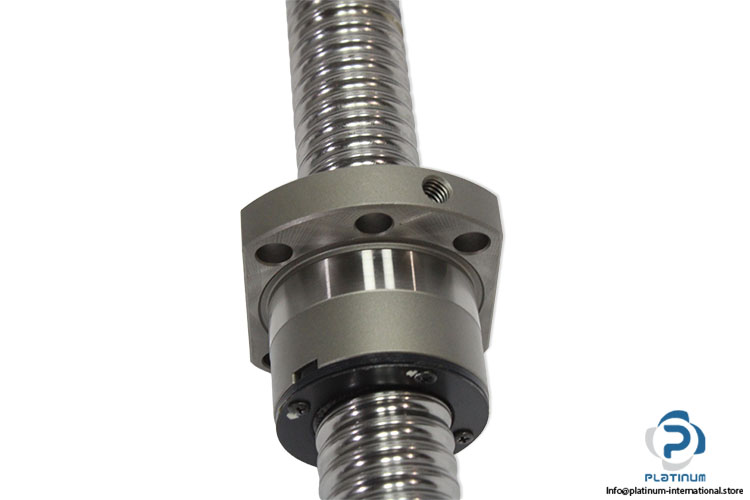

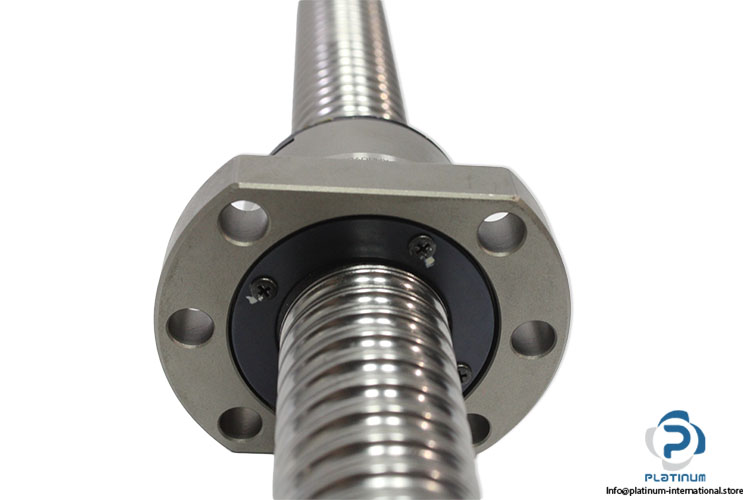

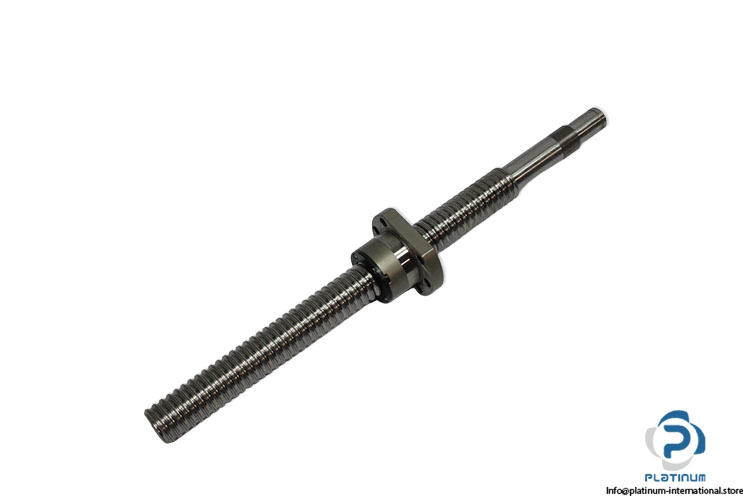

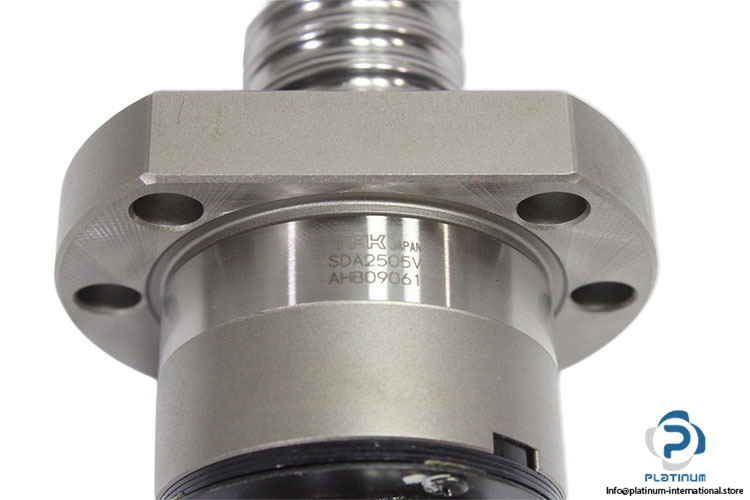

THK SDA2505V Ball Screw
Nuevo
En stock2 unidadesListo para enviar
Compact Caged Ball Screw THK SDA 2505V compact caged ball screw featuring a 25 mm nominal diameter, 5 mm lead, right-hand thread, and compact nut design for precise linear motion and automation applications.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Code | AHB09061 |
| Series | SDA-V |
| Size | 25 x 5 R |
| Nominal Diameter | 25 mm |
| Lead P | 5 |
| Number of starts | 1 |
| Direction of Lead | Right-Hand Thread |

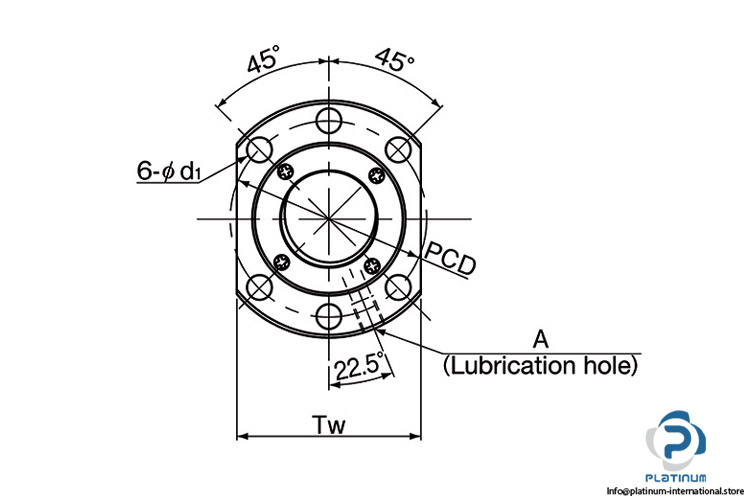

| Flange diameter | 62 mm |
| Nut outer diameter | 40 mm |
| Nut length | 37 mm |
| Flange thickness | 10 mm |
| Cutting flange width | 48 mm |
| Threaded length | 280 mm |
| Total screw length | 370 mm |
| Dynamic Load rating | 12.9 N |
| Static Load rating | 22 N |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099721 |
| Weight | 1,43 |
