TR Electronic 312-01134 Linear Encoder
CODIFICADOR LINEAL TR Electronic LA 66 K es un codificador lineal de alta precisión con una carrera de 537 mm y una resolución de 0.1 mm, ideal para la integración en cilindros hidráulicos. Cuenta con detección magnetostricción y interfaz PROFIBUS-DP.
TR ELECTRONIC LA 66 K LINEAR ENCODER

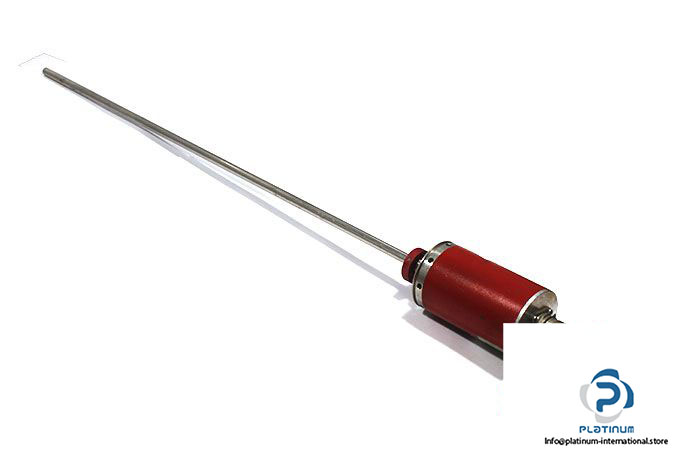

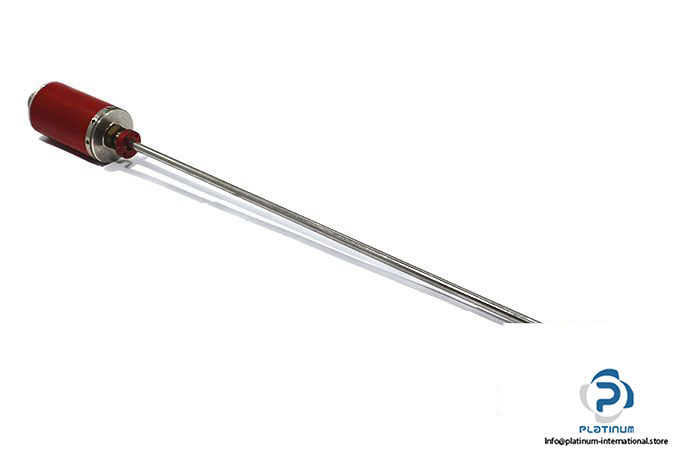

The TR Electronic LA 66 K Linear Encoder is engineered for high-precision position measurement within industrial automation systems. Featuring magnetostrictive measuring principles, it ensures reliable and accurate feedback even in harsh hydraulic environments. Designed for direct integration into hydraulic cylinders, this encoder is a robust and efficient solution for demanding linear positioning applications.

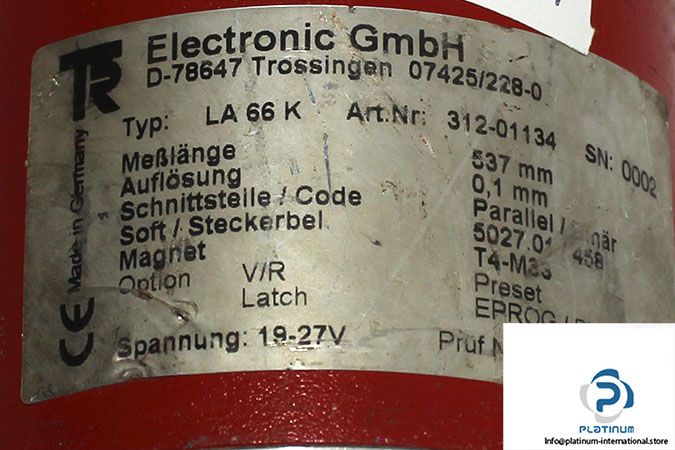

Manufacturer: TR Electronic
Type: Linear Encoder
Model: LA 66 K
Part No.: 312-01134
SN: 0002
| Application | Suitable for direct installation in hydraulic cylinders |
| Supply Voltage | 19 / 27 V DC |
| Measuring Principle | Magnetostrictive |
| Measuring Length | 537 mm |
| Resolution | 0.1 mm |
| Output Code | Parallel “ Binary |

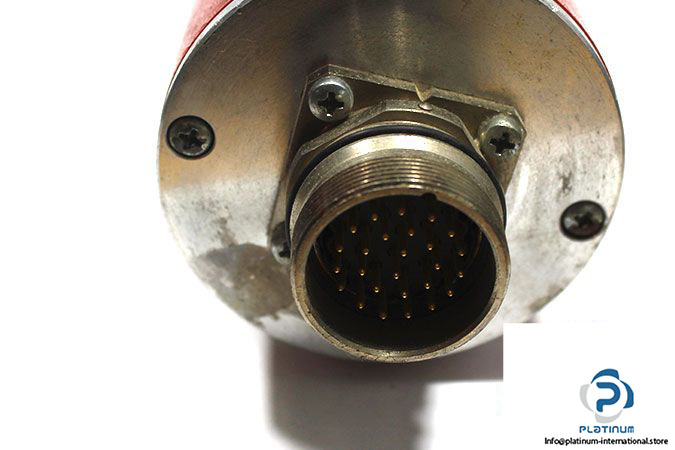

| Connection Cable | 5027.01/458 |
| Magnet | T4-M33 |
| Interface Type | PROFIBUS-DP |
