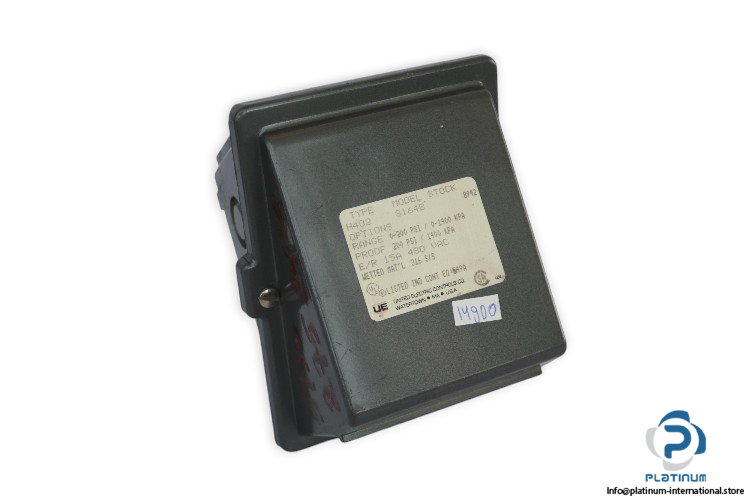

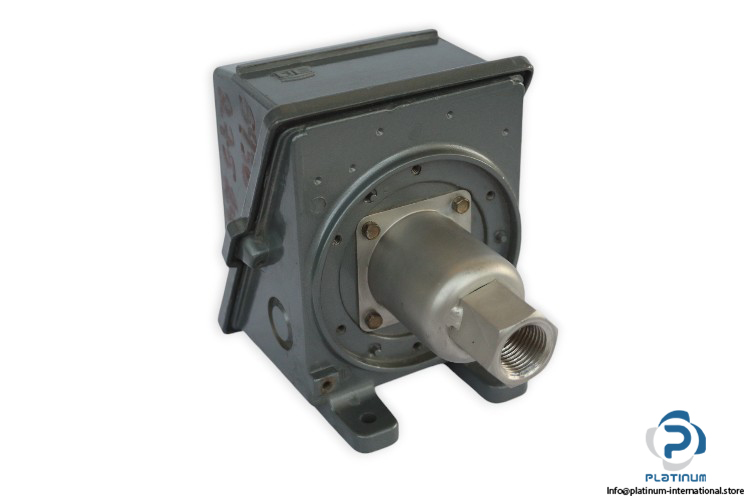

United Electric Controls UE H402-S164B Differential Pressure Switch
Usado
En stock1 unidadListo para enviar
Manufacturer:
UNITED ELECTRIC CONTROLS UE
Type:
Differential Pressure Switch
Model:
H402-S164B
Part No.:
8942
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

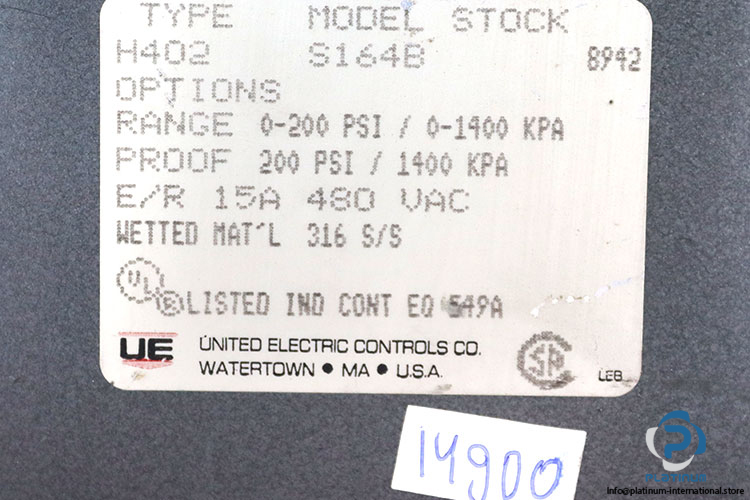

Manufacturer: UNITED ELECTRIC CONTROLS UE
Type: Differential Pressure Switch
Model: H402S164B
Part No.: 8942
Series: H402, Dual Switch Output with Internal Hex Screw Adjustment
Set Point Range: 0 … 200 PSI (0 … 13.8 bar)/ 0 … 1400 KPA
Deadband: 0.3 … 2 PSI / 20.7 … 137.9 mbar
Over Range Pressure: 200 PSI / 13 .8 bar
Proof Pressure: 200 PSI / 13.8 bar / 1400 KPA
Rated Voltage: 480 V AC
Rated Current: 15 A
Switch Output: 2-SPDT
Electrical Connection: One 3/4” NPT and Two 7/8” Diameter Knockouts
Pressure Connection: 1/2” NPT (Female)
Wetted Material: 316L Stainless Steel
Temperature: -40 … 71 °C
Dimensions: 160.3 x 129.7 x 139.4 mm
