WEG 160M-02 3 Phase Electric Motor
Nuevo
En stock3 unidadesListo para enviar
3 Phase Electric Motor The WEG 160M-02 is a 15 kW three-phase electric motor operating at 480 V AC and 3545 rpm, with S1 duty, Class F insulation and IP55 protection.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada
| Part No. | 17446222 |

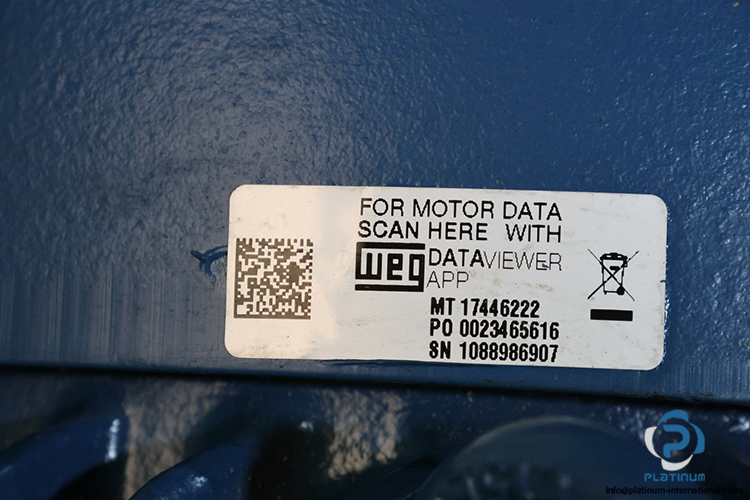

| MT NO | 17446222 |
| PO NO | 0023465616 |
| SN | 1088986907 |
| Voltage,Delta | 480 V AC |
| Current (delta) | 14.5 / 14.7 / 15.2 A |
| Speed | 3545 rpm |
| Frequency | 60 Hz |
| Power | 15 kW |
| Frame | 160M |
| Ambient Temperature | -20…40 °C |
| IE code | JE3 |
| Design | N |
| Duty Cycle | S1 |
| Insulation Class | F |
| Protection Class | IP55 |

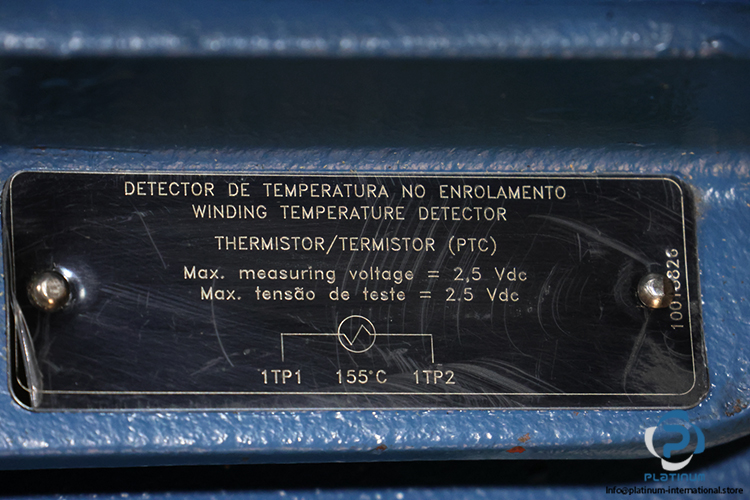

| Max. measuring voltage | 2,5 Vdc |
| Connection | Terminal box |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101324 |
| Weight | 121 |
