Weidmuller UR20-4RO-CO-255 U-Remote
Módulo de salida digital Weidmüller U-REMOTE UR20-4RO-CO-255 con 4 salidas, 6 A por canal, voltaje de conmutación máximo de 255 V AC y tipo de contacto CO. Funciona a 24 V DC, adecuado para temperaturas de -20°C a +60°C.

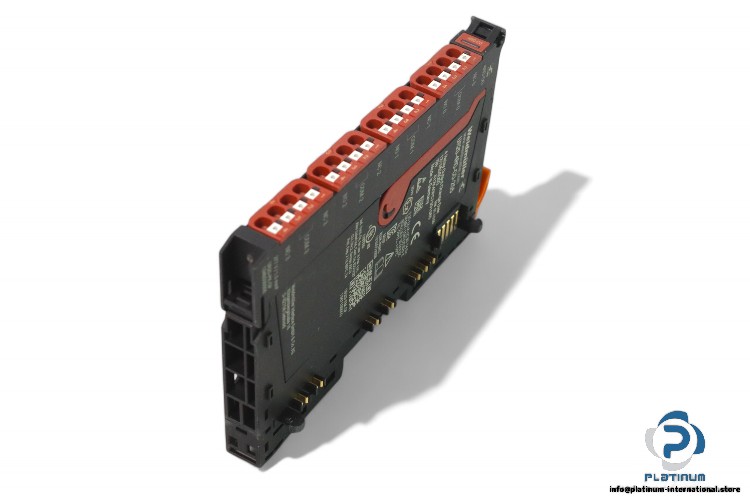

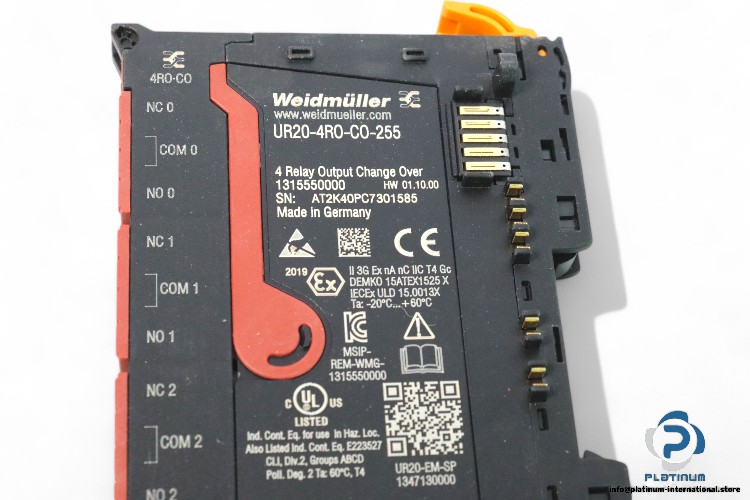

Weidmüller U-REMOTE Digital Output Modules UR20-4RO-CO-255
The Weidmüller U-REMOTE Digital Output Modules are designed for robust and efficient control of industrial systems. This module, model UR20-4RO-CO-255, provides four digital outputs with a maximum output current of 6 A per channel and a total module current of up to 24 A. It is ideal for applications where high voltage switching is required, with a maximum switching voltage of 255 V AC (UL: 277 V AC) and DC. The module operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.
🔧 Technical Specifications:
- Manufacturer: Weidmüller
- Type: U-REMOTE Digital Output Modules
- Model: UR20-4RO-CO-255
- Voltage Supply: 24 V DC
- Number of Outputs: 4
- Output Current per Channel (Max.): 6 A
- Output Current per Module (Max.): 24 A
- Switching Voltage (Max.): 255 V AC, UL: 277 V AC, DC
- Type of Contact: CO contact
- Operating Temperature Range: -20°C to +60°C
- Dimensions: 76 x 120 x 11.5 mm
