25X5RX300 Ball Screw
Utilisé
En stock1 unitéPrêt à être expédié

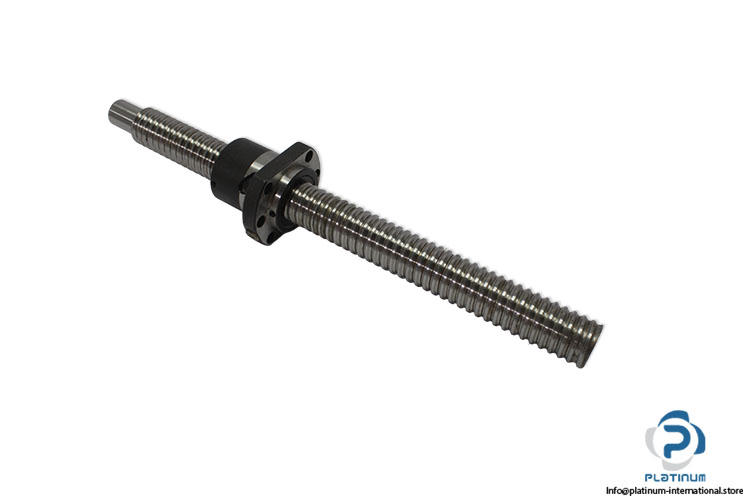

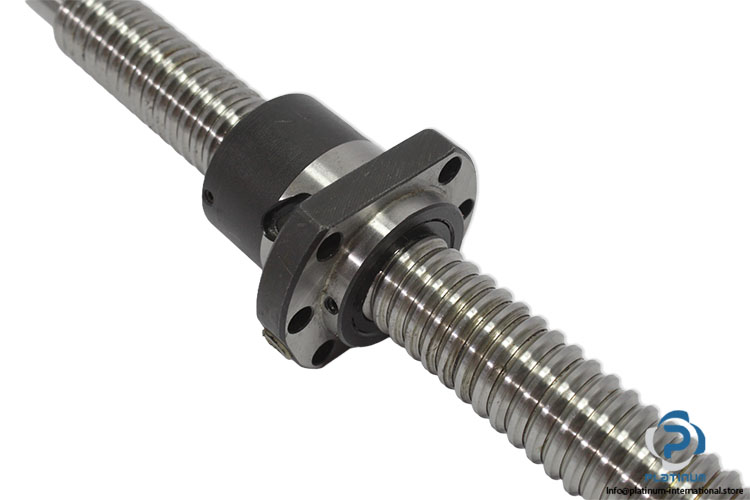

Ball Screw Industrial ball screw with a 25 mm nominal diameter, 5 mm lead, right-hand thread, and precision-machined nut for accurate linear motion and power transmission applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Size | 25X5R |
| Nominal Diameter | 25 mm |
| Lead P | 5 |
| Number of starts | 1 |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 40 mm |
| Flange diameter | 62 mm |
| Flange thickness | 10 mm |
| Cutting Flange Width | 48 mm |
| Nut length | 49 mm |
| Threaded length | 300 mm |
| Total screw length | 325 mm |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100121 |
| Weight | 1,4 |
