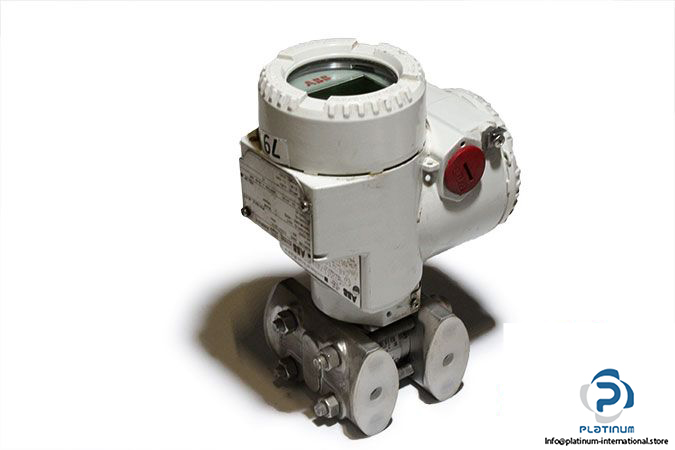

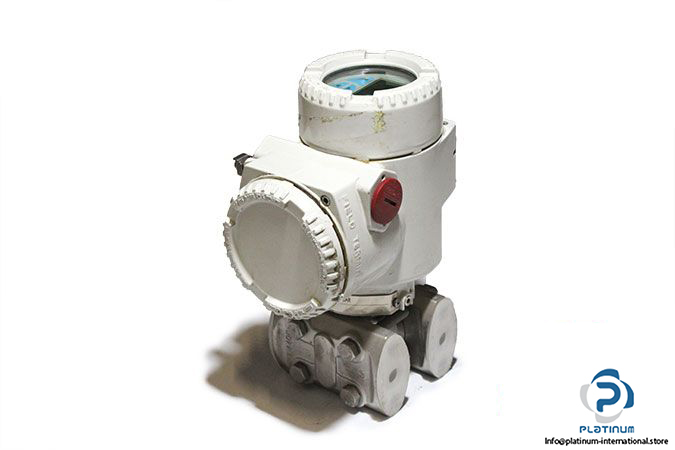

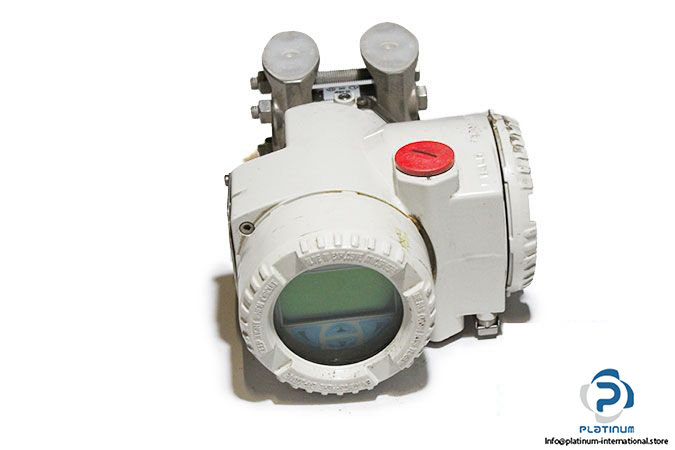

ABB 260MST CCKA6J1 L1B1CC Pressure Transmitter ‎

Manufacturer: ABB Automation

Type: Pressure Transmitter ‎

Model: 260MST CCKA6J1 L1B1CC

Sensor Span Limit: 2 and 60 mbar

Maximum Working Pressure: 160 bar

Diaphragm Material: Hastelloy® C-276

Fill Fluid: Silicone oil (NACE)

Process Flanges and Adapters Material: AISI 316L SST (1.4404 / 1.4408)

Connection: 1/4 in –18 NPT female direct (horizontal connection) (NACE)

Bolts Material: AISI 316 SST (NACE – not exposed to H2S)

Gaskets Material: Perbunan

Housing Material: Aluminum alloy (DIN type)

Electrical Connection: M20 x 1.5

Output: HART digital communication and 4 to 20 mA

Integral LCD: With integral LCD display

Mounting Bracket Shape: For pipe mounting

Material: Carbon steel (Not suitable for AISI housing)

Weight: 3.8 kg
