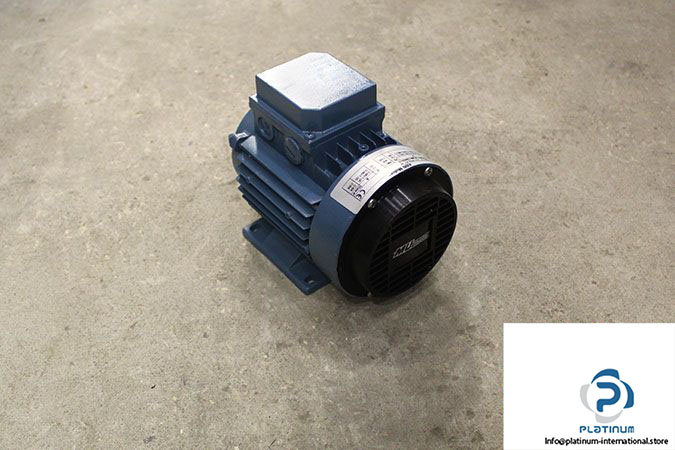

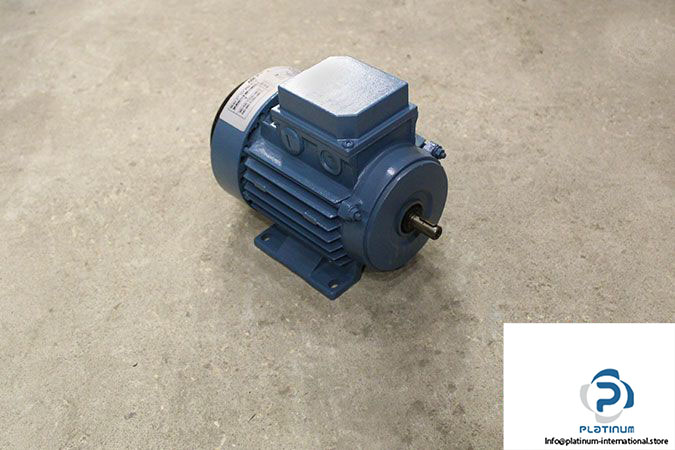

ABB MU63B11-6 MK129023-S 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

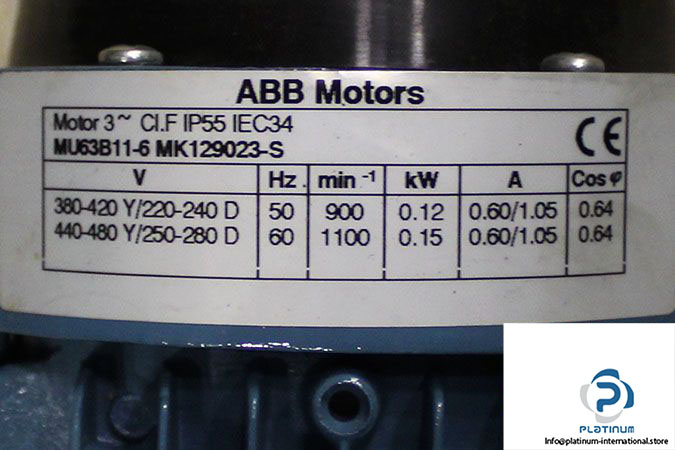

Model: MU63B11-6 MK129023-S

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 900 min^-1

Rated Power: 0.12 kW

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1100 min^-1

Rated Power: 0.15 kW

Rated Current (Star): 0.6 A

Rated Current (Delta): 1.05 A

Power Factor: 0.64

Shaft Diameter: 11 mm

Motor Size: 63B

Number of Poles: 6

Protection Class: IP55

Insulation Class: F

Weight: 3.88 kg
