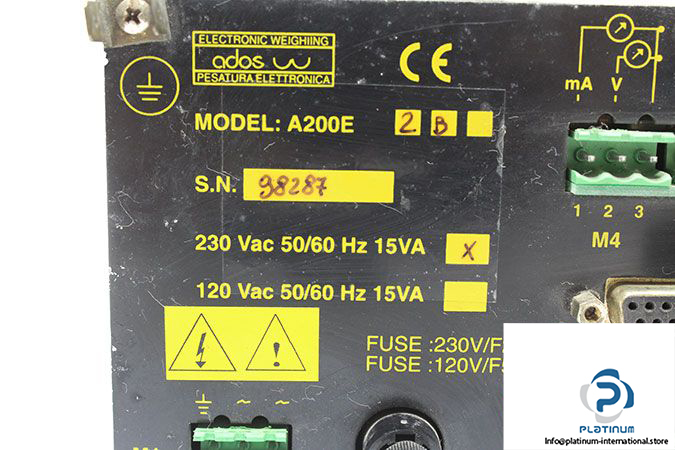

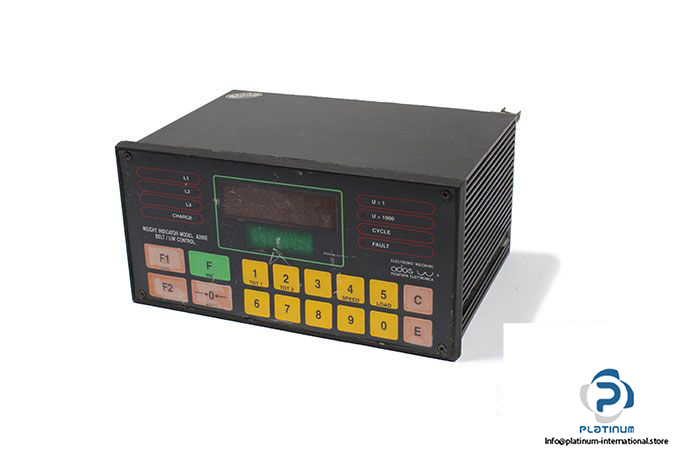

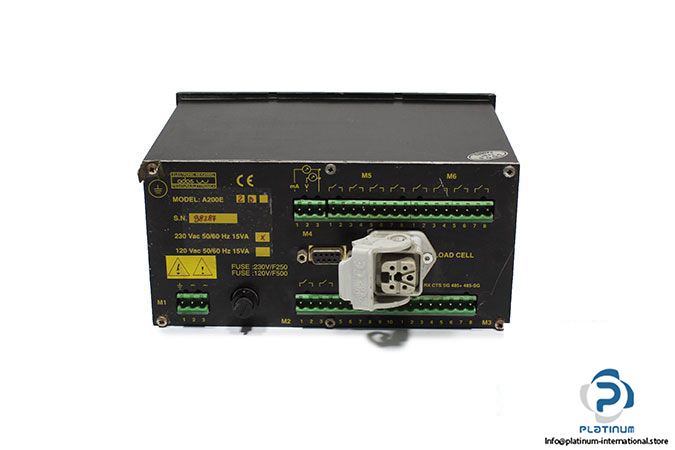

Ados A200E Digital Weight Indicator

Manufacturer: Ados

Type: Digital Weight Indicator

Model: A200E

Power Supply: 230 VAC

Frequency: 50/60 Hz

Power Consumption: 15 VA

Fuse: 125 mAT

Load Cell Power Supply: 8 VDC

Max. Current: 190 mA

Electric Connection: 4 wires (standard), 6 wires with sense on request

Analog Signal: 0.5 … 2.5 mV/V

Conversion Speed: 55 conversion/sec

Mounting: Front panel mounting with two holding brackets mounted on the sides of the enclosure

Operating Temperature: – 10 … + 40 °C

Dimensions: 96 X 192 X 140 mm

Weight: 1.5 Kg
