Allen-Bradley MSR131RTP Monitoring Safety Relay
Utilisé
En stock1 unitéPrêt à être expédié
49,99$
Relais de sécurité de surveillance Allen-Bradley MSR131RTP avec alimentation 24 V AC/DC, boîtier IP40, et sortie de 250 V AC à 6 A ou 24 V DC à 3 A, idéal pour les applications industrielles.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

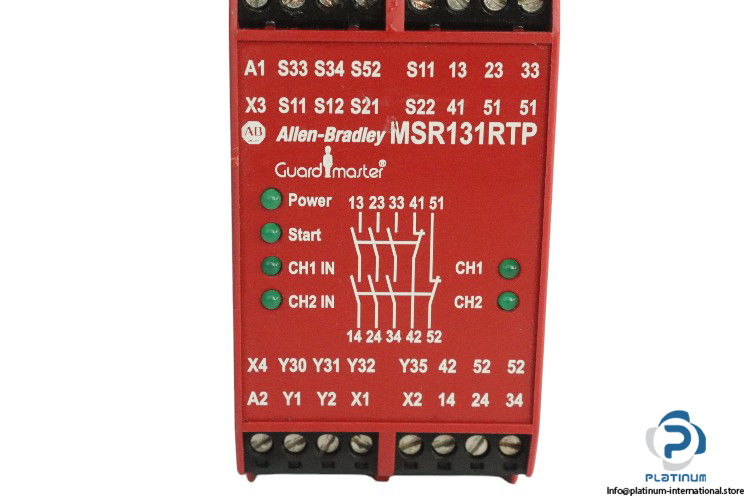

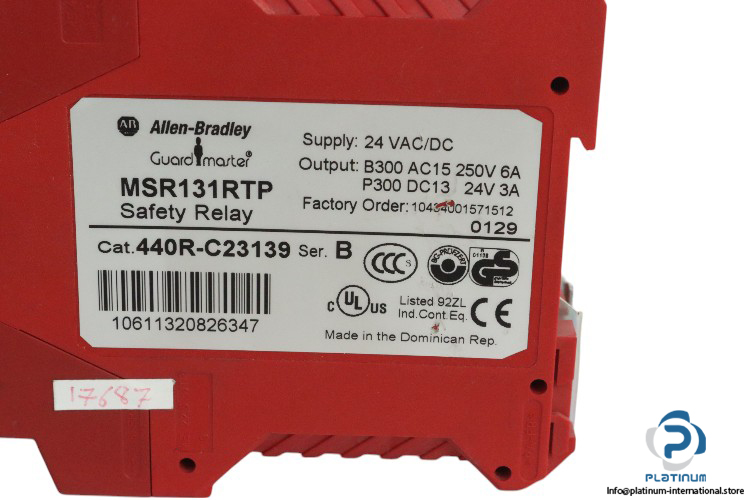

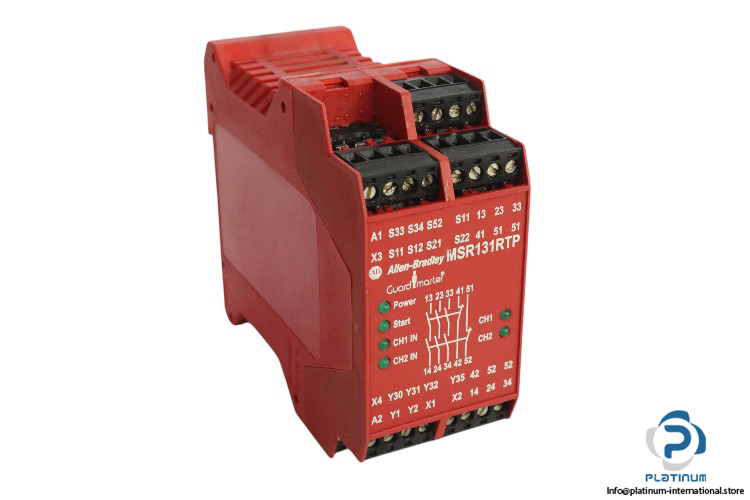

Allen-Bradley Monitoring Safety Relay MSR131RTP
The Allen-Bradley MSR131RTP Monitoring Safety Relay, Part No. 440R-C23139, is a reliable safety device for industrial applications. It operates on 24 V AC/DC with outputs of 250 V AC at 6 A and 24 V DC at 3 A, ensuring robust performance. Built with IP40 enclosure protection and IP20 terminal protection, it provides safety and durability in various environments.
Specifications:
- Manufacturer: Allen-Bradley
- Type: Monitoring Safety Relay Series B
- Model: MSR131RTP
- Part No.: 440R-C23139
- Supply Voltage: 24 V AC/DC
- Voltage Output: 250 V AC at 6 A, 24 V DC at 3 A
- Impulse Withstand Voltage: 2500 V
- Recovery Time: 100 ms
- Pollution Degree: 2
- Enclosure Protection: IP40 (NEMA 1)
- Terminal Protection: IP20
- Conductor Size: 0.2…2.5 mm² (24 / 12 AWG)
- Torque: 0.6 / 0.8 N·m (5 / 7 lb·in)
- Case Material: Polyamide PA 6.6
- Operating Temperature: -5 / +55 °C
