Asco SCXE353.060 Solenoid Valve
Nouveau
En stock3 unitésPrêt à être expédié
Solenoid Valve
The ASCO JOCOMATIC SCXE353.060 is a stainless steel 316L two way normally closed solenoid valve, 24 V DC operated, for oil and air control. It includes a DIPRAX 2006/615 pulse jet valve and ASCO SCXG353.060 coil rated IP65.2006/61524353ActuatedAirAscoClosedcoildcDipraxElectricIP65JetJocomaticNormallyoilPulseSCXE353.060SCXG353.060SeriessolenoidstainlessSteelVValve
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

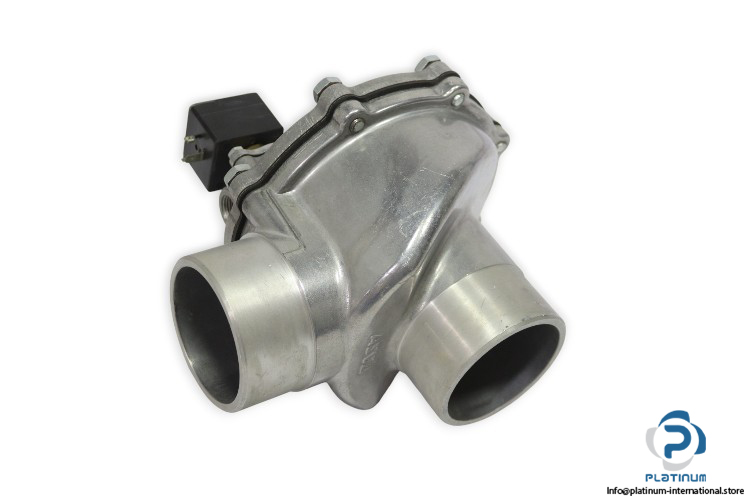

ASCO JOCOMATIC SCXE353.060 Solenoid Valve Assembly
The ASCO JOCOMATIC SCXE353.060 Solenoid Valve is a high quality two way normally closed valve designed for reliable control of oil and air in industrial automation systems. Built with a stainless steel 316L body and electric actuation, it provides durable performance and precise operation under demanding conditions.
Manufacturer: ASCO JOCOMATIC
Type: Solenoid Valve
Model: SCXE353.060

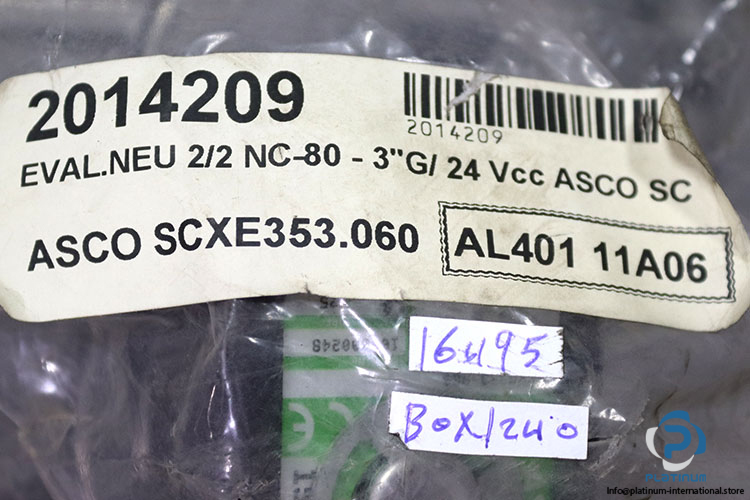

MNR: EVAL.NEU 2/2 NC-80-3G
Reference No.: AL401 11A06
Serial No.: 2014209
Series: 353
Attached Components
| Fluid | Oil, Air |
| Type of Actuation | Electric |
| Body Material | Stainless Steel 316L |
| Voltage | 24 V DC |
| Function | Normally Closed (NC) 2/2 Way Solenoid Valve |
| Port Size | G3 |

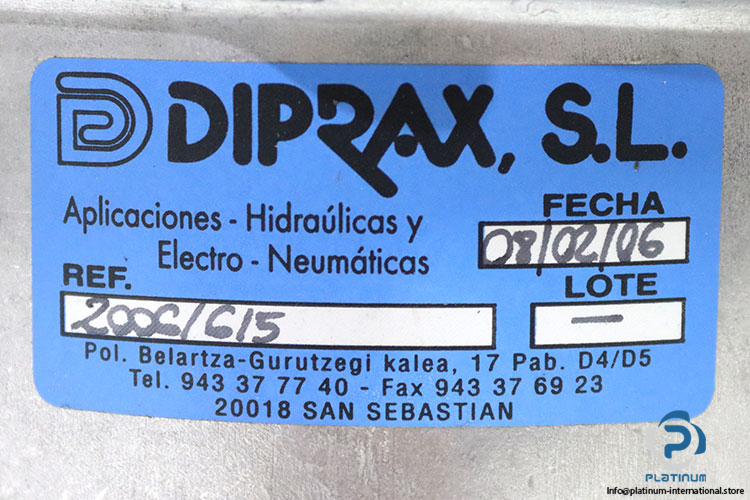

| Valve Unit | DIPRAX 2006/615 Pulse Jet Valve |
| Reference | 2006/615 |

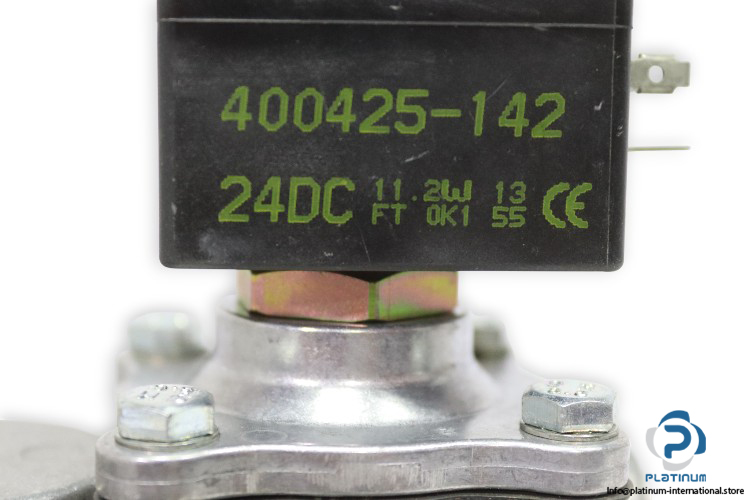

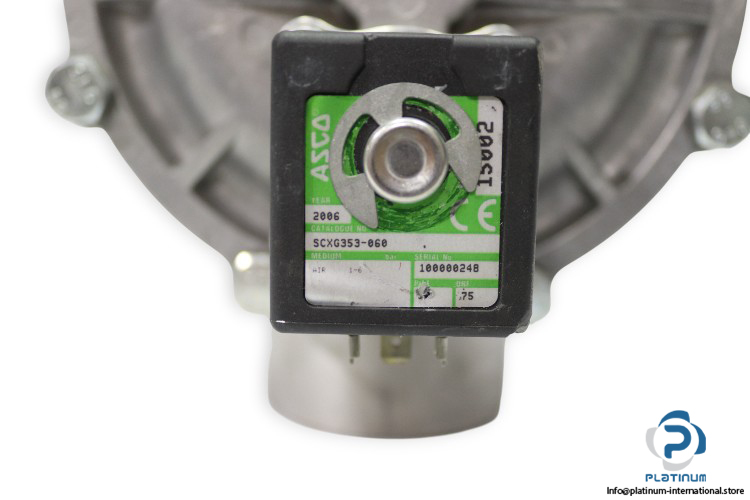

| Coil Unit | ASCO SCXG353.060 Solenoid Coil |
| Reference No. | 400425-142, FT 0K1 55 |
| Serial No. | 100000248 |
| Pressure | 1 “ 6 bar |
| Voltage | 24 V DC |
| Power | 11.2 W |
| Connection | 3 pin type |
| Ingress Protection | IP65 |
