Atos DH-0231/2 40 Mechanical Directional Valve

Name: ATOS DH-0231/2 40 MECHANICAL DIRECTIONAL VALVE
SKU: 1017982
Price: 139.99 USD
Availability: InStock

Atos-DH-0231_2-40-solenoid-directional-valve-direct-operated-(used)

Atos-DH-0231_2-40-solenoid-directional-valve-direct-operated-(used)-1

Utilisé

En stock1 unitéPrêt à être expédié

139,99$

VANNE DIRECTIONNELLE MÉCANIQUE Vanne directionnelle compacte ATOS avec une pression maximale de 350 bar et un débit de 50 l/min, adaptée aux systèmes hydrauliques haute performance dans des environnements industriels exigeants.

Fabricant

ATOS

SKU

1017982

Catégorie

Directional Control Valves

Condition

Utilisé

350 40 50 Atos bar Control DH-0231/2 Directional High Hydraulic l/min Mechanical Pressure sub-plate Valve

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

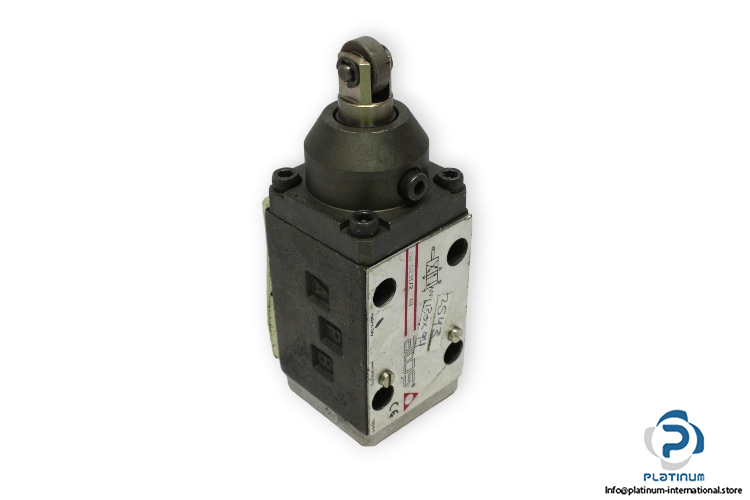

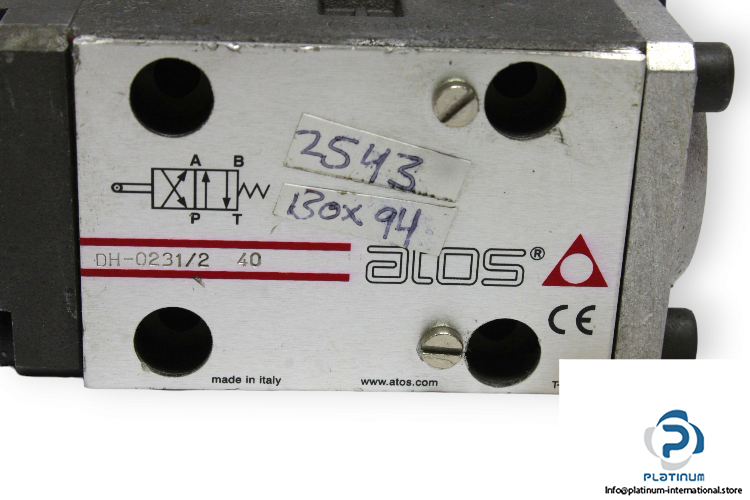

ATOS DH-0231/2 40 MECHANICAL DIRECTIONAL VALVE

The ATOS DH-0231/2 40 mechanical directional valve is designed for precision hydraulic control in demanding environments. Built with robust materials and reliable sealing, it ensures dependable performance across a wide temperature and pressure range. Ideal for industrial fluid power systems requiring compact and responsive directional flow control.

Manufacturer: ATOS

Type: Mechanical Directional Valve

Model: DH-0231/2 40

Size	06
Ambient Temperature Range	-30 / +70 °C
Maximum Operating Pressure Ports P, A, B	350 bar
Maximum Operating Pressure Port T	160 bar
Maximum Flow Rate	50 l/min
Hydraulic Fluid Temperature Range	-30 / +60 °C
Viscosity Range	15 / 100 mm²/s
Connection	Sub-plate
