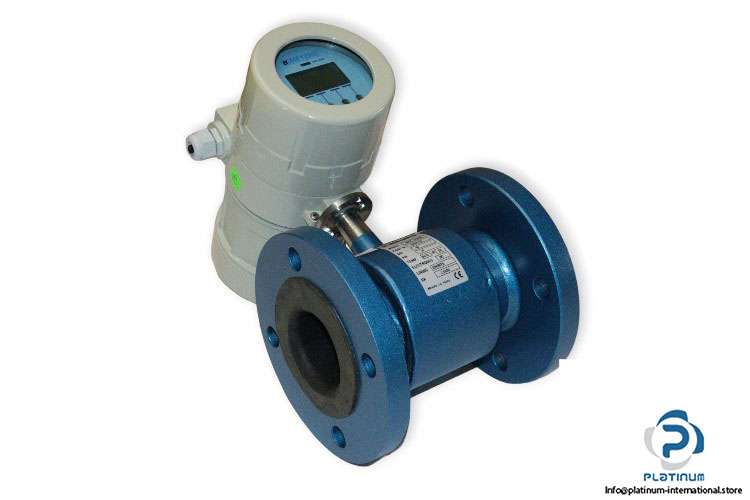

B METERS MUT 2200/EL FLOW METER Flow 39.26

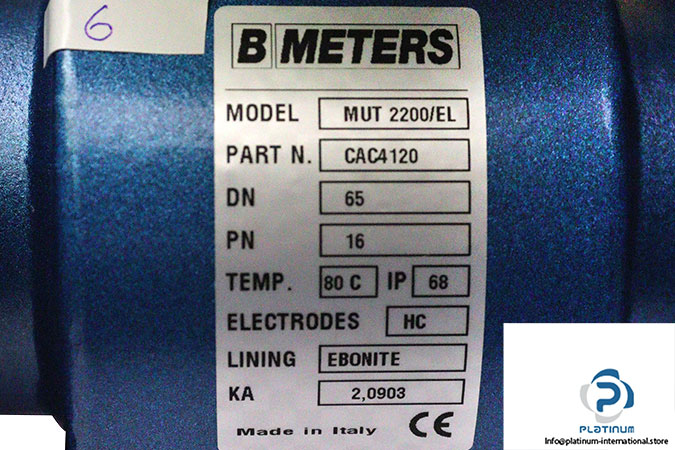

Manufacturer: BMeters
Type: Electromagnetic Flow Meters
Model: MUT2200/EL
Part Nr.: CAC4120

Diameter Nominal [mm]: DN 65
Nominal Pipe Size [In]: 2 1/2”
Rated Pressure [bar]: 16
Temperature [°C]: 80°
Electrodes: HC
Lining: Ebonite
Material: Cast Iron
KA-Factor: 2,0903
Enclosure Protection [IP]: 68

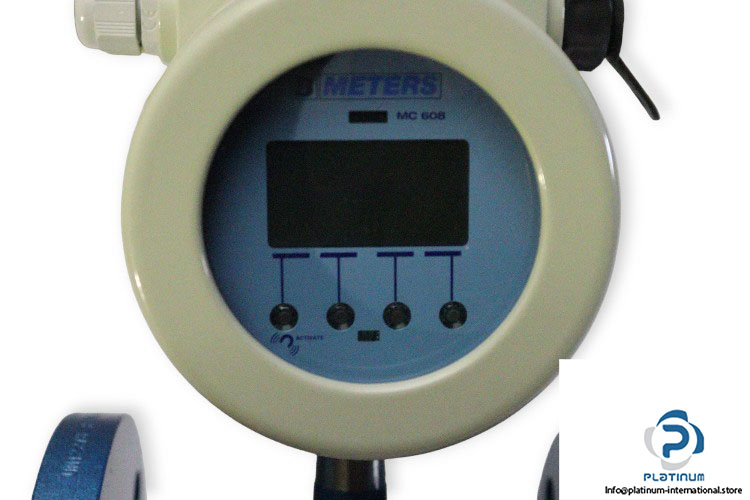

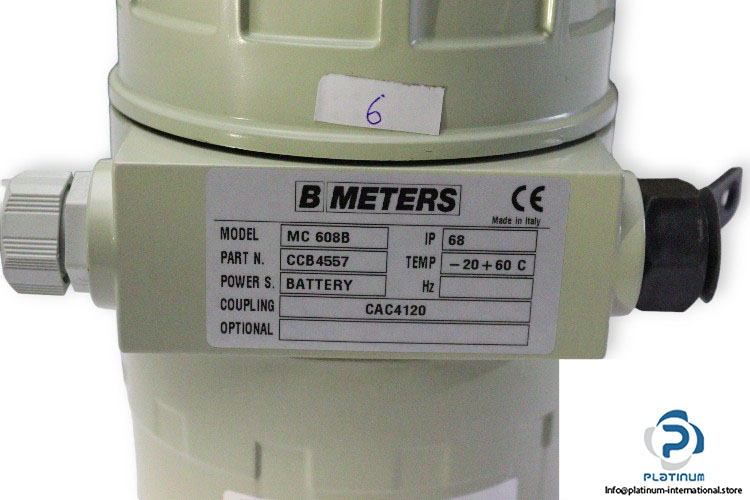

Attachment: B Meters MC 608B Converter
Manufacturer: BMeters
Type: Converter
Model: MC608B
Part Nr.: CCB 4557

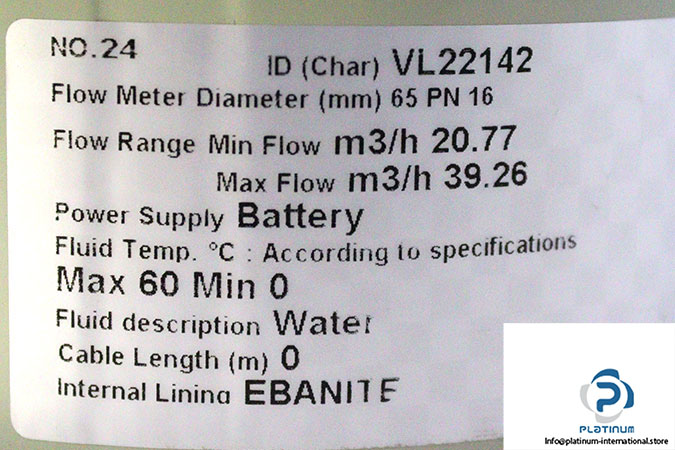

ID.: VL22142
Coupling: CAC4120
Rated Pressure [bar]: 16
Flow Meter Diameter [mm]: 65
Flow Range Min Flow [m³/h]: 20.77
Flow Range Max Flow [m³/h]: 39.26
Power Supply: Battery
Fluid Description: Water
Internal Lining: Ebonite
Temperature [°C]: -20…+60
Enclosure Protection [IP]: 68
