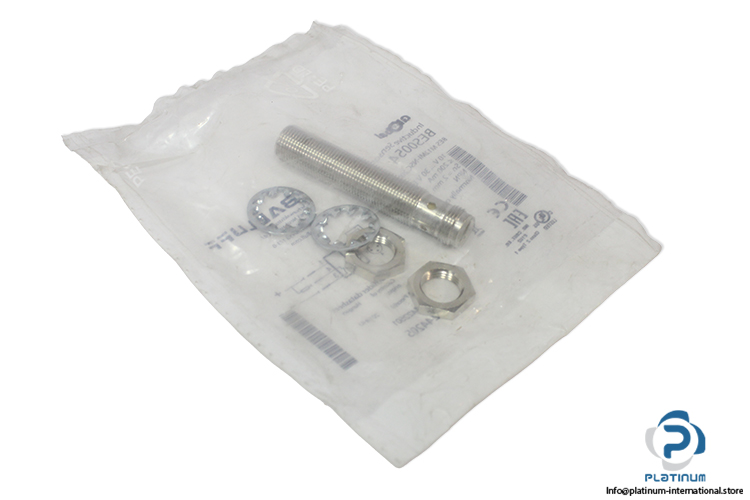

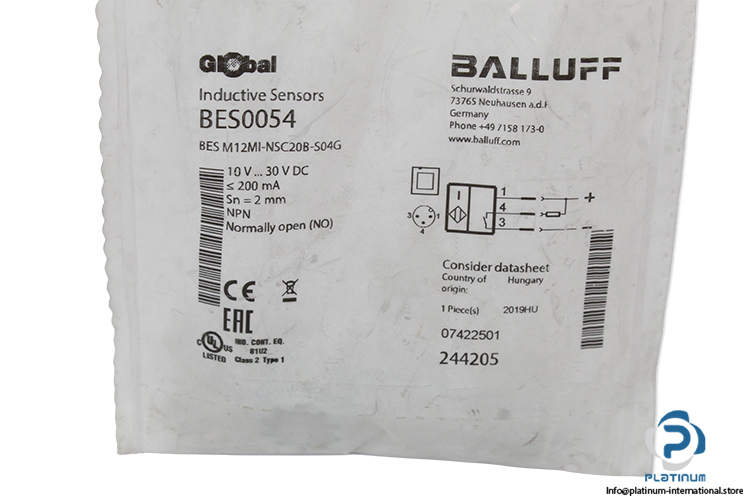

Balluff BES0054 BES M12MI-NSC20B-S04G Inductive Proximity Sensor
Capteur de proximité inductif Capteur de proximité inductif BALLUFF M12 avec une portée de détection de 2 mm, sortie NPN NO, protection IP68 et fonctionnement en 10-30 V DC pour les applications d'automatisation industrielle.
BALLUFF BES0054 BES M12MI-NSC20B-S04G Inductive Proximity Sensor
The BALLUFF BES0054 inductive proximity sensor is designed for precise, non-contact detection of metal objects in industrial automation environments. With a compact M12 housing and high switching frequency, it ensures reliable performance in demanding applications.
Manufacturer: BALLUFF
Type: Inductive Proximity Sensor
Model: BES0054 BES M12MI-NSC20B-S04G
Part No.: 244205 / 07422501
| Sensing Range | 2 mm |
| Housing Style | M12 x 1 |
| Rated Operating Voltage | 10 / 30 V DC |
| Rated Current | 200 mA |
| Contact Type | NPN Normally Open (NO) |
| Switching Frequency | 3500 Hz |
| Connection | Connector, M12 x 1 Male, 4-pin |
| Dimensions (Diameter x Length) | 12 x 65 mm |
| Material | Brass, Nickel-Free Coated |
| Protection Class | IP68 |
| Ambient Temperature | -25 ... 70 °C |
