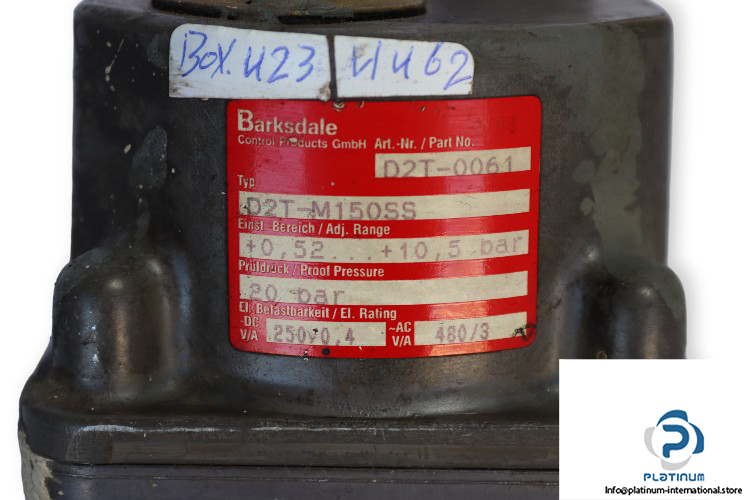

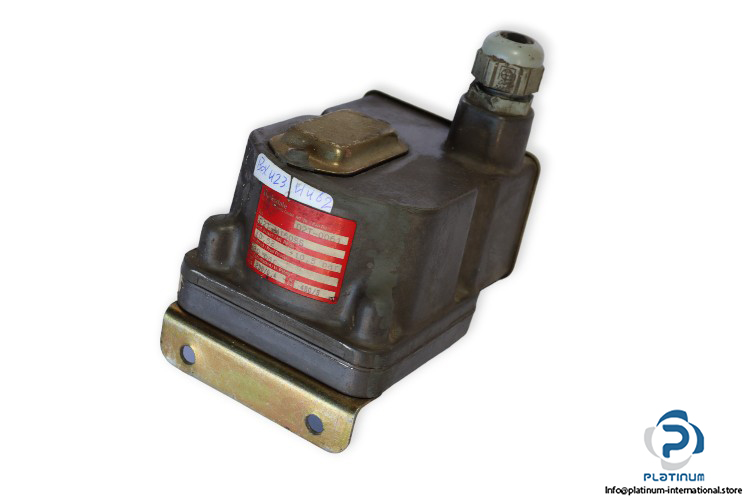

Barksdale D2T-M150SS Metal Diaphragm Pressure Switch
Manufacturer: BARKSDALE
Type: Metal Diaphragm Pressure Switch
Model: D2T-M150SS
Part No.: D2T-0061
Pressure Measuring Range: 0.52 …. 10.5 bar
Proof Pressure: 20 bar
Connection: G 1/4
Electrical Connection: M20 X 1.5 Cable Gland
Voltage contacts Ratings: 250 V DC,480 V AC
Materials: Top part: aluminium powder coated ,bottom part:
aluminium anodized
Fluid Temperature Range: -40 … 75°C
