Baumer Ifrm 12P1702/L/0500 Inductive Proximity Sensor
Nouveau
En stock1 unitéPrêt à être expédié

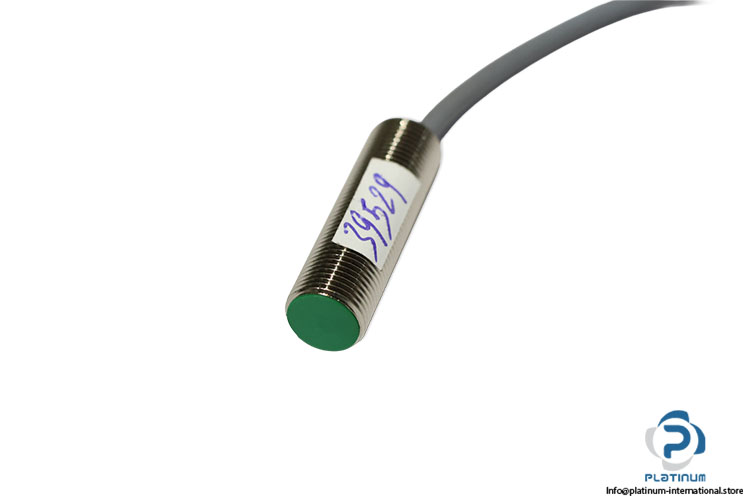

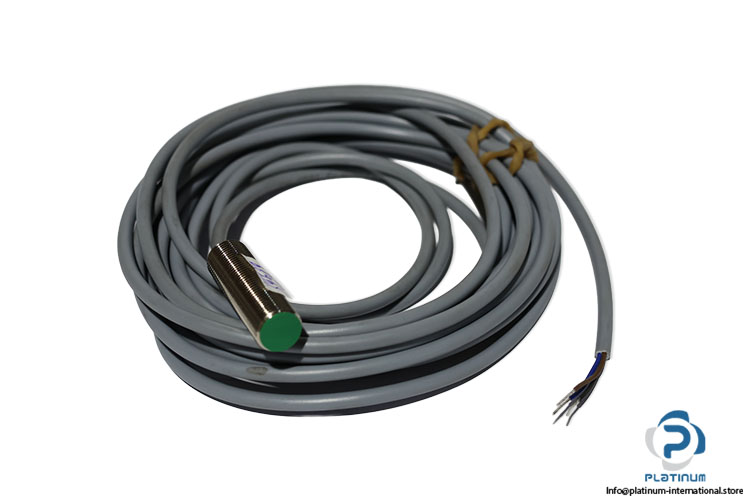

Inductive Proximity Sensor BAUMER IFRM 12P1702/L/0500 sensor with PNP output, infrared light source, adjustable sensitivity, and IP67 protection for industrial automation applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Art No | 10167094 |
| Mounting type | Flush |
| Nominal sensing distance Sn | 4 mm |
| Hysteresis | 3 … 20 % of Sr |
| Switching frequency | 2 kHz |
| Operating Voltage | 6… 36 V DC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | 2 VDC |
| Current Rating | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 12 mm |
| Housing length | 40 mm |
| Connection types | Cable ,2m |
| Operating Temperature | -25 … +75 °C |
| Protection class | IP 67 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100946 |
| Weight | 0,14 |
