Hydraulic System Filter Elements

BCGP-0155-0592/0592/0296-4V-00 AIR Filter

Name: BCGP-0155-0592/0592/0296-4V-00 AIR FILTER
SKU: 1081524
Availability: LimitedAvailability

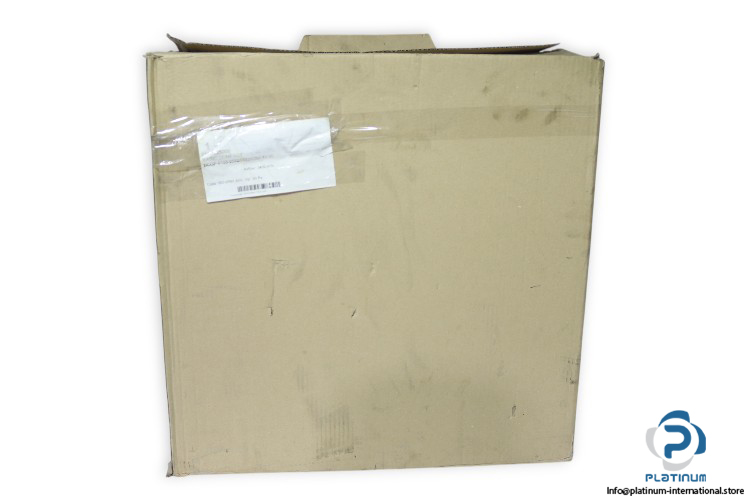

BCGP-0155-0592_0592_0296-4V-00-air-filter-(new)-(carton)

BCGP-0155-0592_0592_0296-4V-00-air-filter-(new)-(carton)-1

BCGP-0155-0592_0592_0296-4V-00-air-filter-(new)-(carton)-2

BCGP-0155-0592_0592_0296-4V-00-air-filter-(new)-(carton)-3

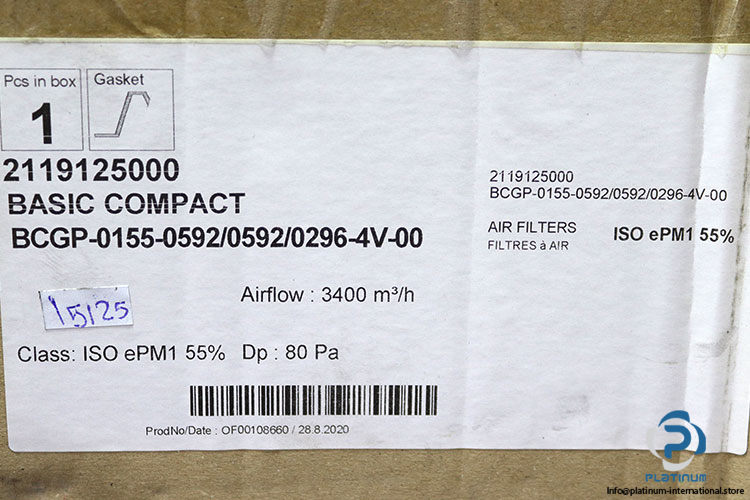

BCGP-0155-0592_0592_0296-4V-00-air-filter-(new)-(carton)-4

Nouveau

En stock3 unitésPrêt à être expédié

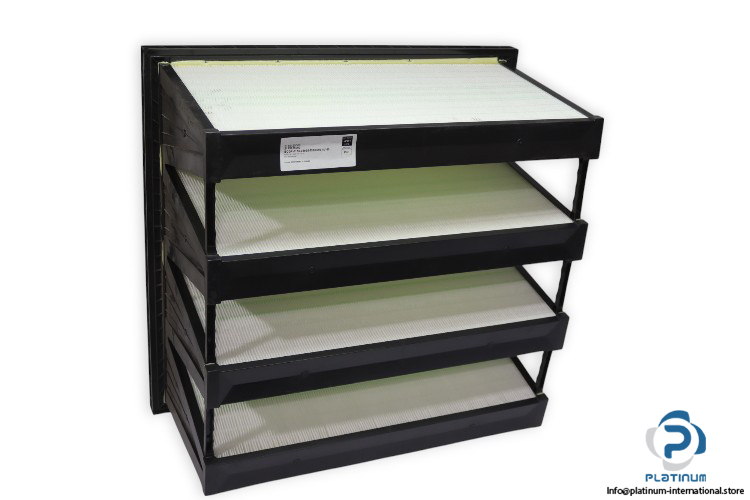

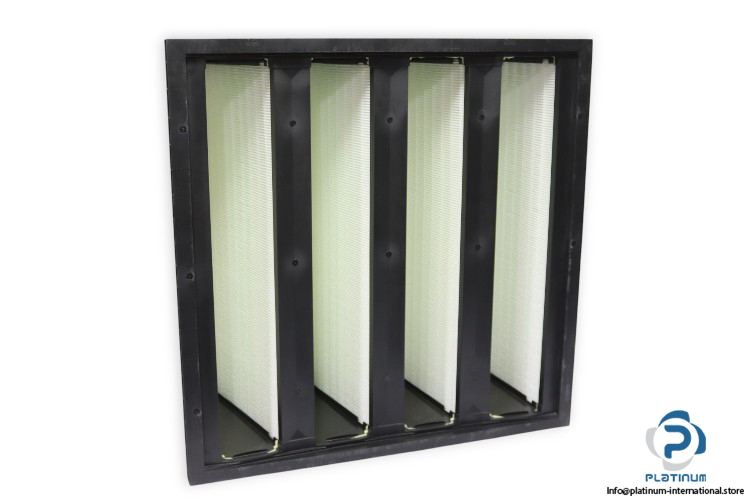

AIR FILTER

High-efficiency compact air filter for AHUs, rated at 3400 m³/h with ISO 16890 certification. Durable fiberglass media and ABS frame ensure reliable, energy-efficient operation.

SKU

1081524

Catégorie

Filter Elements

Condition

Nouveau

16890 3400 592x592x296 ABS AHU Air Basic BCGP01550592 C Class Compact Energy Fiberglass filter flow frame High Hvac ISO m3h Polyurethane Seal

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

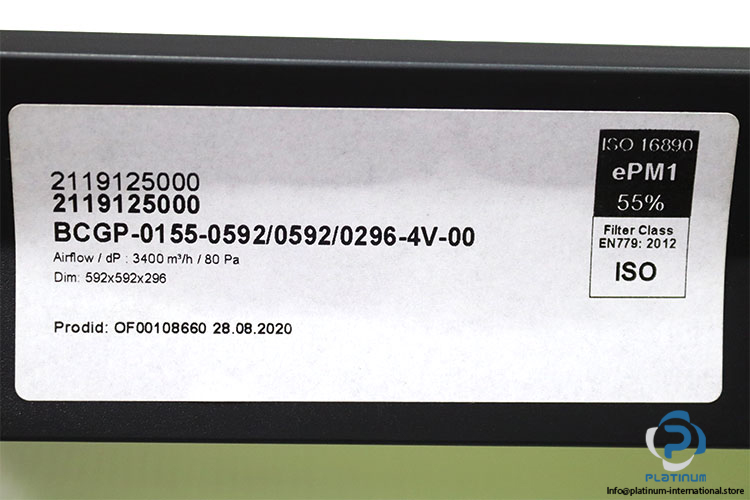

BASIC COMPACT AIR FILTER “ BCGP01550592/0592/02964V00

Designed for optimal air filtration efficiency, this compact filter ensures reliable performance in air handling units (AHUs). Its fiberglass media and polyurethane sealant provide durability, while the ABS frame supports structural integrity under demanding flow rates. Type: Basic Compact AIR Filter

Model: BCGP01550592/0592/02964V00

Part No.: 2119125000

Nominal Flow Rate / dP	3400 / 80 m³/h/Pa
Maximum Flow Rate	1.25 x nominal flow rate
Surface	12 m²
Energy	1337 kWh/year
Energy Class	C
Application	Air filtration in AHUs
Frame	ABS
Media	Fiberglass
Sealant Material	Polyurethane
Maximum Temperature	70°C
Mounting System	Frames/housings with front and side access
Certificate	ISO 16890 epm1 55 percent
Dimension	592 x 592 x 296 mm
