Becker SV300/1 Side Channel Blower
Nouveau
En stock2 unitésPrêt à être expédié
1 699,99$

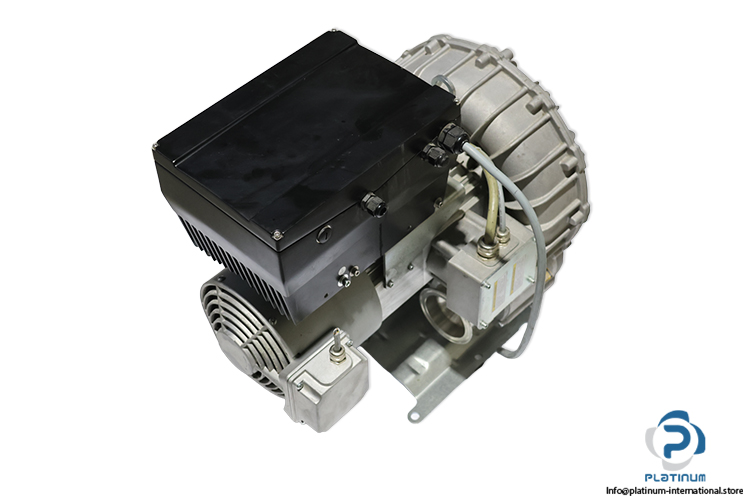

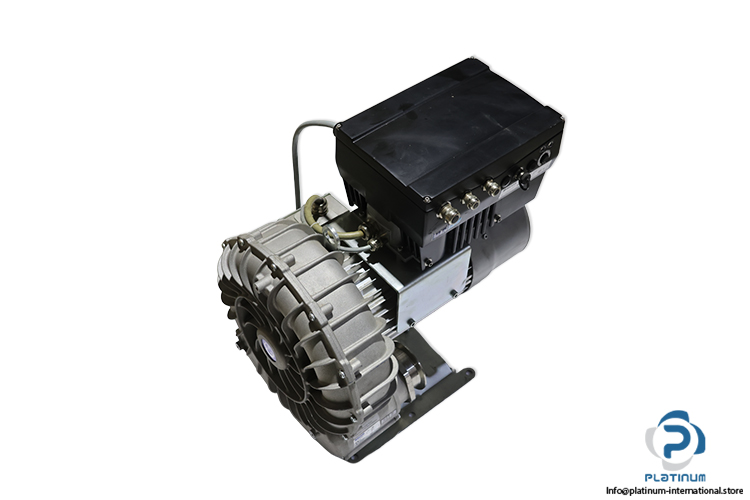

Side Channel Blower BECKER SV 300/1 side channel blower with 600 m³/h inlet capacity and 5870 rpm speed, attached with BECKER VAU 7,5/3_L frequency converter.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

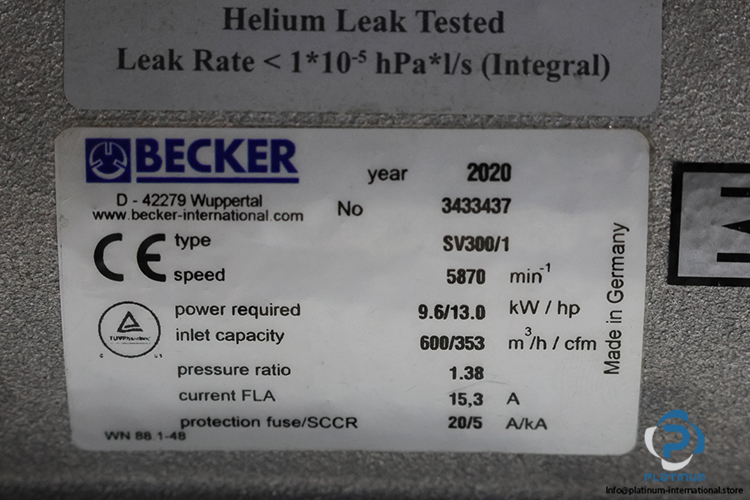

| Part No. | 3433437 |
| Speed | 5870 rpm |
| Power | 9.6/13.0 kW/hp |
| pressure ratio | 1.38 |
| current FLA | 15,3 A |
| protection fuse/SCCR | 20/5 |

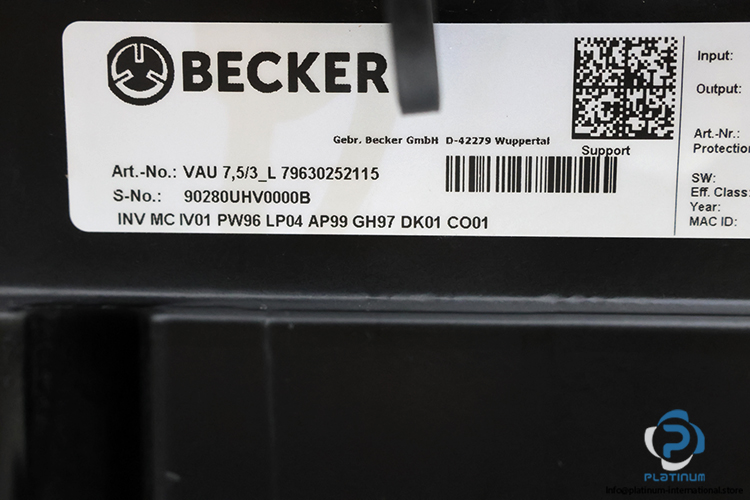

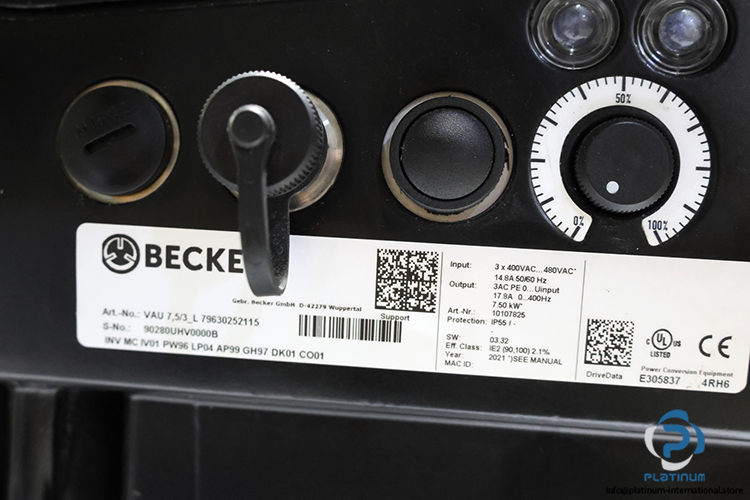

| Attached with | BECKER VAU 7,5/3_L 79630252115 FREQUENCY CONVERTER |
| Article Number (Art.-Nr.) | 1010107825 |

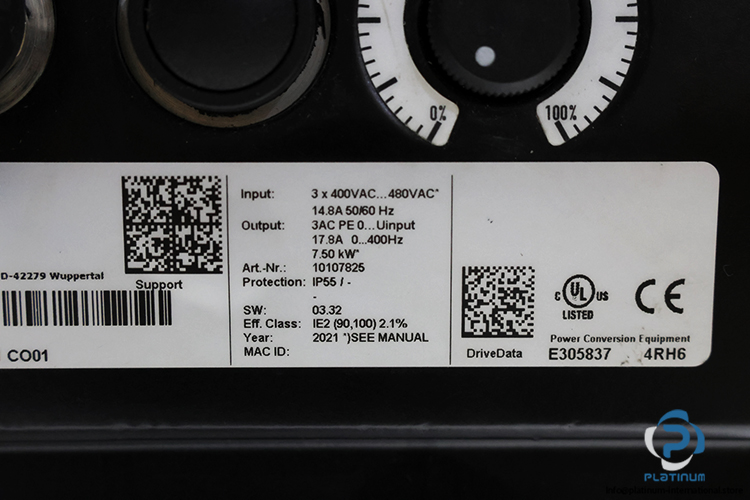

| Input Power | 3-Phase, 400V AC to 480V AC, 14.8 A, 50/60 Hz |
| Output Power | 3-Phase AC + PE, 0V up to Input Voltage, 17.8 A, 0 to 400 Hz |
| Power Rating | 7.50 kW |
| Efficiency Class | IE2 (90,100) 2.1% |
| Enclosure Rating | IP55 (Dust-protected, water jet-resistant)Software Version (SW): 03.32 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101343 |
| Weight | 67,6 |
