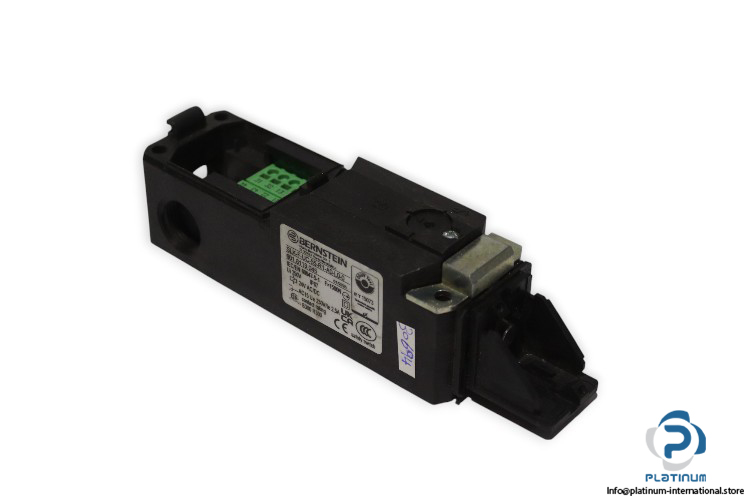

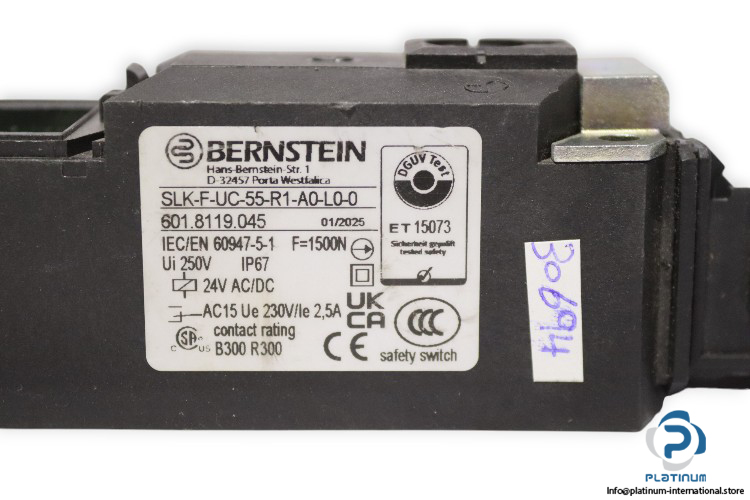

BERNSTEIN SLK-F-UC-55-R1-A0-L0-0 Safety Switch
The BERNSTEIN SLK-F-UC-55-R1-A0-L0-0 is a robust safety switch designed for reliable machine safety and industrial applications. Built with reinforced thermoplastic housing and actuating head, it ensures durability, high protection, and compliance with international safety standards.
Manufacturer: BERNSTEIN
Type: Safety Switch
Model: SLK-F-UC-55-R1-A0-L0-0
Part No.: 601.8119.045
Series: SLK
| Standards | IEC/EN 60947-5-1 |
| Contact Type | 2 NC, 2 NO |
| Insulation Voltage Ui | 250 V |
| Operating Voltage | 24 V AC/DC |
| AC15 | 230 V / Ie 2.5 A |
| Contact Rating | B300 / R300 |
| Rated F | 1500 N |
| Connection | Spring-clamp connection |
| Cable Entrance | 3 x M20 x 1.5 |
| Body Material | Thermoplastic, glass fiber reinforced |
| Actuating Head Material | Thermoplastic, glass fiber reinforced |
| IP Rating | IP67 |
| Operating Temperature | -25 to 70 °C |
| Body Dimensions | 184 x 45 x 42.5 mm |
