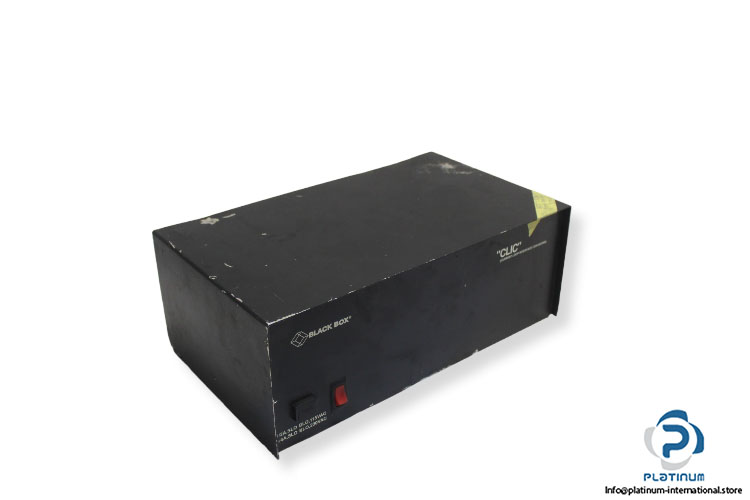

Black BOX CL216AE Current Loop Interface Converter

Manufacturer: Black Box

Type: Current Loop Interface Converter

Model: CL216AE

Voltage Drop Transmitter (Passive): 0.5 V min/ 2 V max

Voltage Drop Receiver (Passive): 1.2 V min/ 2.7 V max

Voltage Source Receiver/Transmitter (Active, Half Duplex): 11.3 V min/ 14.3 V max

Current: 20-mA current loop

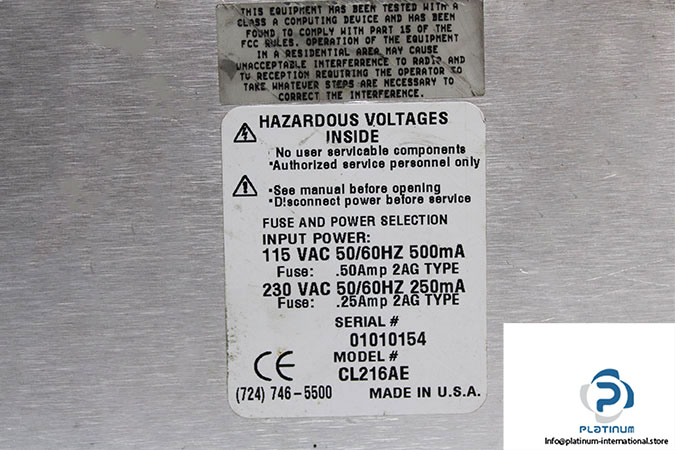

Input Voltage: 115/230 V AC

Input current: 500/250 mA

Speed: Up to 9600 bps

Interface: RS-232, unipolar

Controls: Power ON/OFF, 10-position DIP switches for options

Current Loop: Connector: 4-position terminal block

Frequency: 50 … 60 Hz

No. of channel: CLIC 16-Channel

Material: Aluminum

Consist of

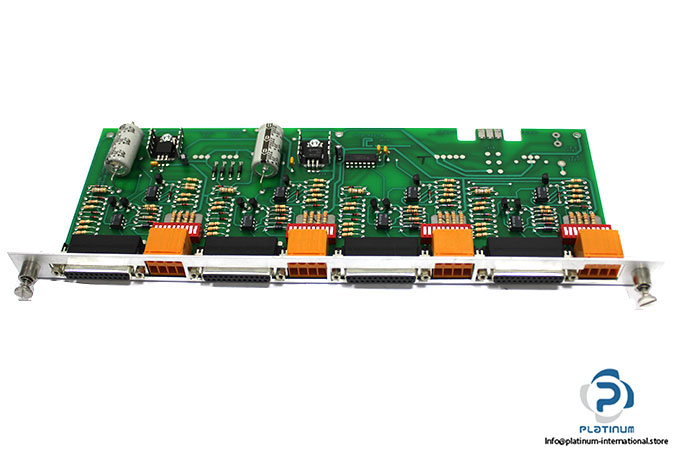

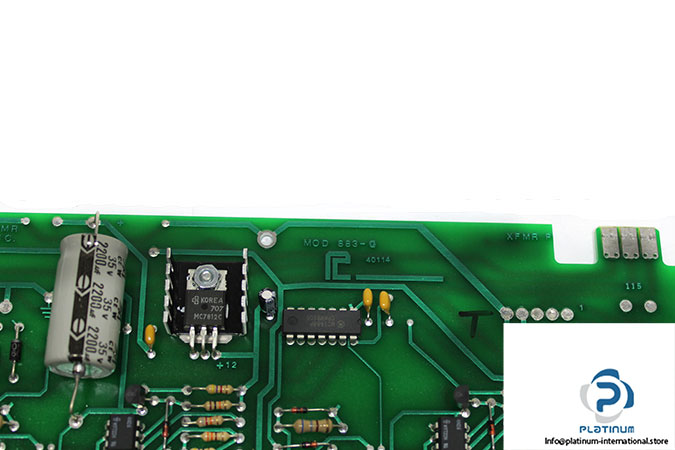

BLACK BOX MOD 883-G CIRCUIT BOARD

Dimensions: 127 x 325 x 191 mm
