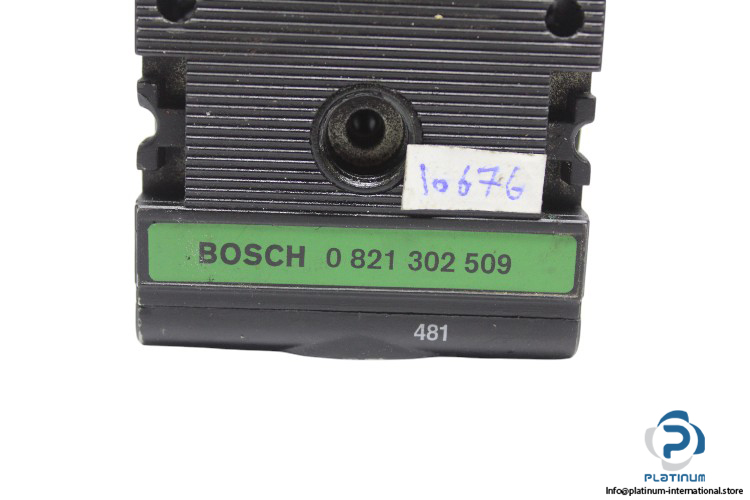

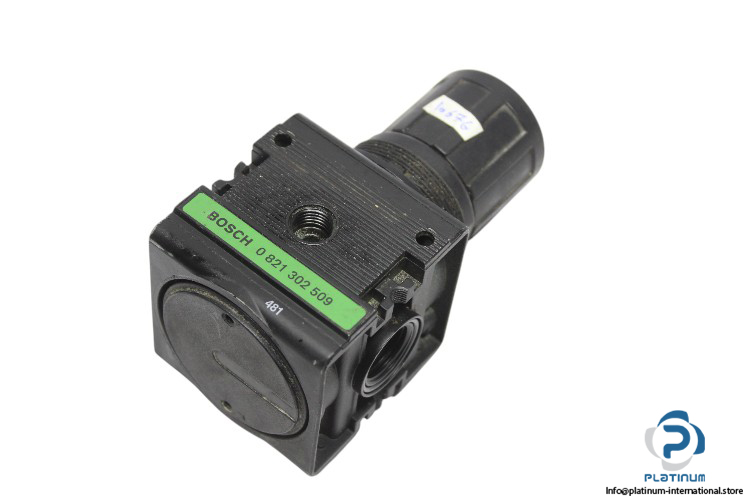

Bosch 0 821 302 509 Pressure Regulator
Utilisé
En stock1 unitéPrêt à être expédié
régulateur de pression Le régulateur de pression Bosch 0821302509 assure une régulation efficace de la pression d’air avec un débit de 9500 l/min et une plage de pression de travail de 0,5 à 16 bar.
+GF+0.10.51639500AirAluminumbarconnectiondie-castflowg1/2Industriall/minPneumaticPressureRangeRateregulatorworking
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
BOSCH PRESSURE REGULATOR
The Bosch Pressure Regulator (Model: 0821302509) is designed to maintain consistent pressure in pneumatic systems. With a flow rate of 9500 l/min and a working pressure range of 0.5 to 16 bar, this pressure regulator provides reliable performance for air systems in various industrial applications. The die-cast aluminum body ensures durability and long-lasting use, while the wide regulation range (0.1 to 3 bar) offers precise control over pressure levels.
Manufacturer: BOSCH
Type: Pressure Regulator
Model: 0821302509
Technical Specifications
- Fluid: Air
- Max. Pressure Gauge Diameter (Blocked State): 63 mm
- Flow Rate: 9500 l/min
- Body Material: Die-cast aluminum
- Working Pressure Range: 0.5 “ 16 bar
- Pressure Regulation Range: 0.1 “ 3 bar
- Temperature of Medium: -10 to 60 °C
- Pneumatic Connection: G1/2
