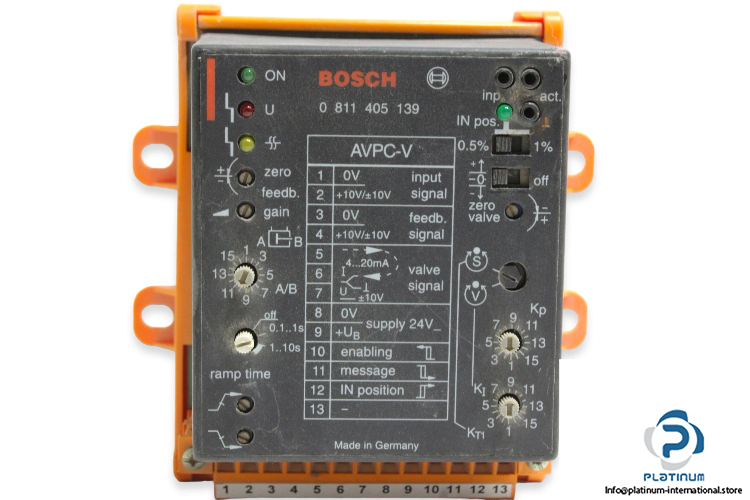

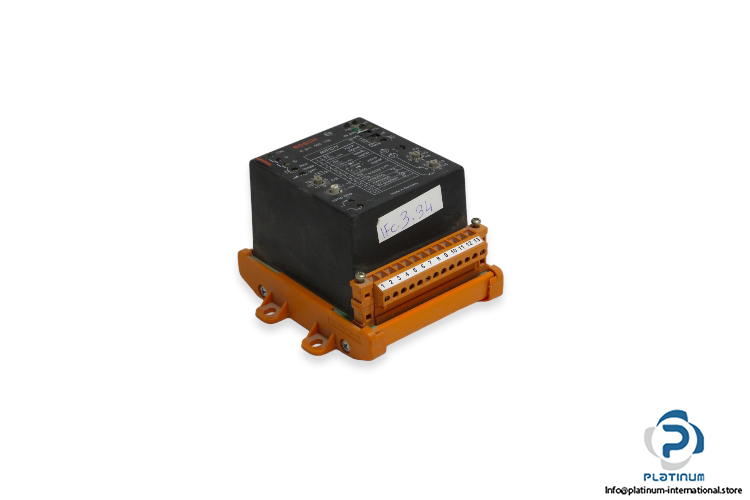

Bosch Avpc-V Analog Position Controller

Manufacturer: Bosch

Type: Analog position controller

Model: AVPC-V

Order No.: 0811405139



Power supply voltage: 24 V DC (21 … 28 V DC)

Current rating: 200 mA (max)

Signal input: U set: ±10 V, difference amplifier, I set: 4 … 20 mA

Feedback signal: U feed: ±10 V, difference amplifier, I feed: 4 … 20 mA

Valve signal: UV = ±10 V (max. 10 mA) or (5), (6), (7) IV = 4 … 20 mA (average 12 mA)

Ramp ranges: I: 0.1 … 1s , II: 1 … 10s

Connection: DIN rail/connector + terminals

Operating Temperature: 0 … 70 ºC

Dimensions: 86 x 110 x 95 mm
