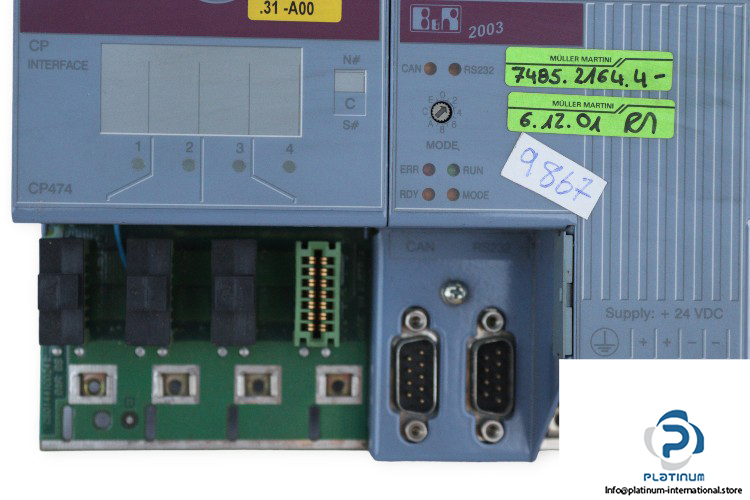

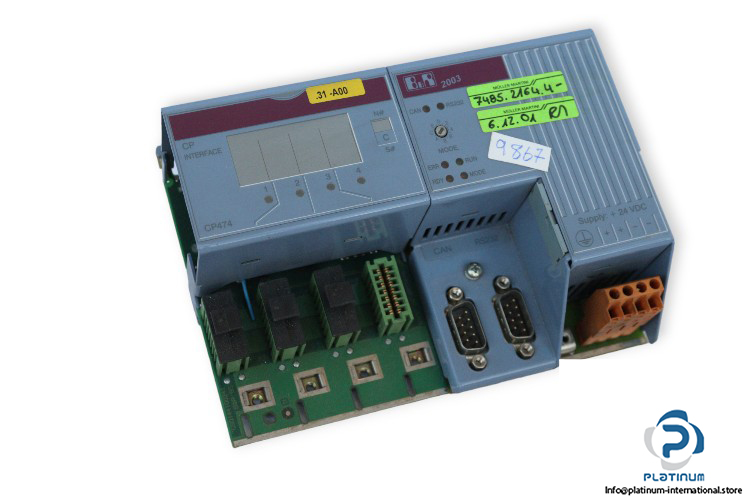

B&R 7CP474.60-2 CPU MODULE

Manufacture: B&R Automation
Type: Cpu Module

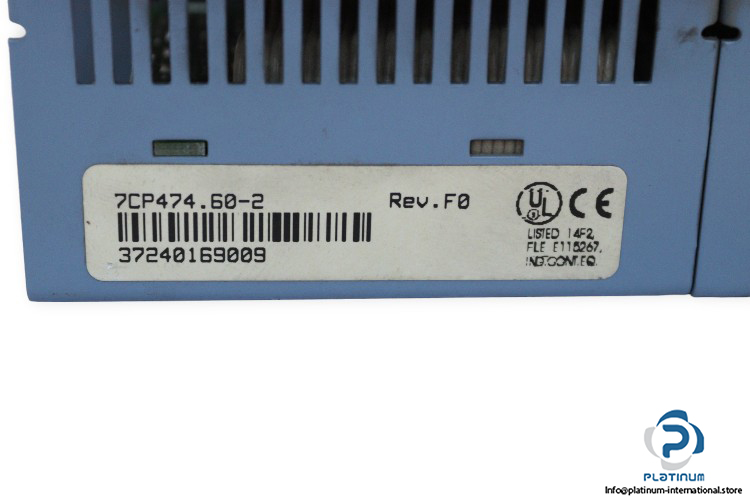

Model: 7CP474.60-2
Part No.: 37240169009

Typical instruction cycle time: 0.8 µs
Power supply: 24 V DC (18 … 30 V DC)
Power consumption: max. 20 W
Output power for I/O ports: 14/12.6 W
Interfaces: 1x RS232, 1x CAN bus
I/O bus interface: 9-pin DSUB socket
Standard memory:
User RAM: 750/100 KB SRAM
System PROM: 512 KB Flash PROM
User PROM: 512 KB Flash PROM
No. of Logical module slots: Max. 12
No. of analog module slots: Max. 4
Protection type: IP20
Operating temperature: 0 … +60°C
