B&R X20DC1198 DIGITAL COUNTER MODULE
Nouveau
En stock1 unitéPrêt à être expédié
Module compteur numérique B&R X20 avec interface encodeur absolu SSI, compteur 32 bits, alimentation 24 V DC, et transfert de données à haute vitesse pour systèmes d'automatisation industrielle.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

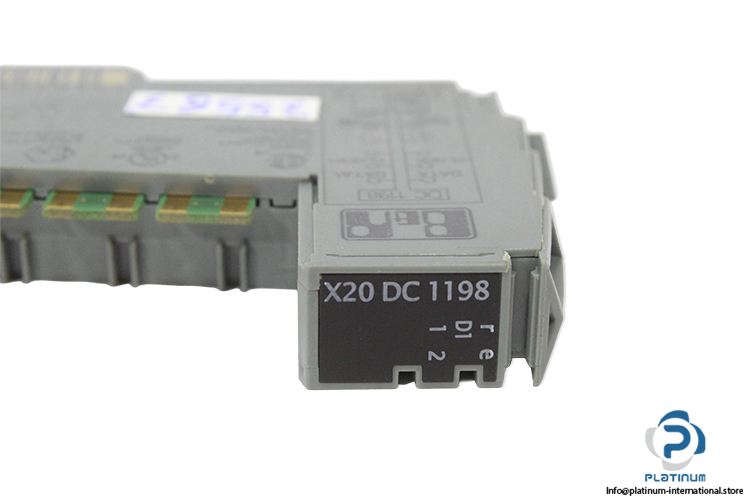

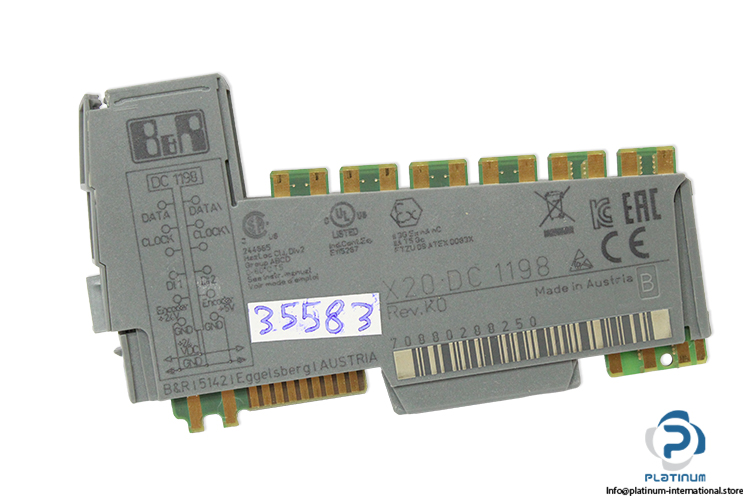

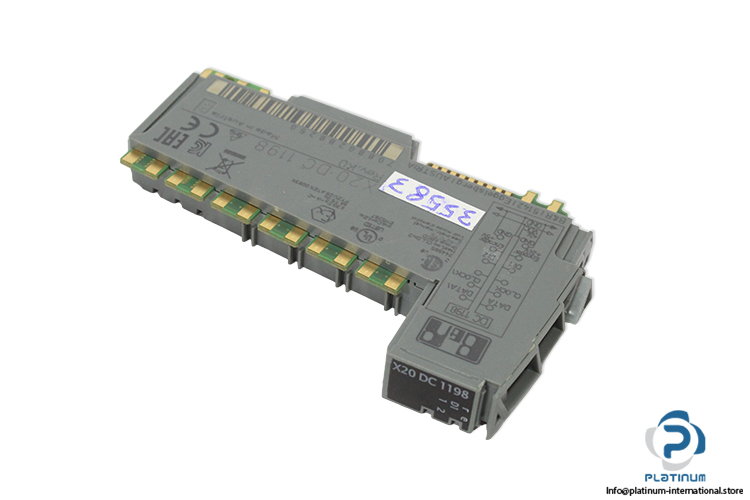

B&R X20DC1198 Digital Counter Module / SSI Absolute Encoder
The B&R X20 DC 1198 is a high-performance digital counter module with SSI absolute encoder interface, designed for precise position and speed acquisition in industrial automation systems. As part of the X20 series, it offers reliable data processing, fast transfer rates, and stable operation in control cabinets and automation environments.
Manufacturer: B&R
Type: Digital Counter Module / SSI Absolute Encoder
Model: X20 DC 1198
Revision: KO
| Series | X20 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.42 W |
| Input Current | 3.3 mA |
| Encoder Inputs | 5 V, Symmetrical |
| Counter Size | 32-Bit |
| Maximum Transfer Rate | 1 Mbit/s |
| Protection Class | IP20 |
| Operating Temperature | -25 / 60 °C |
