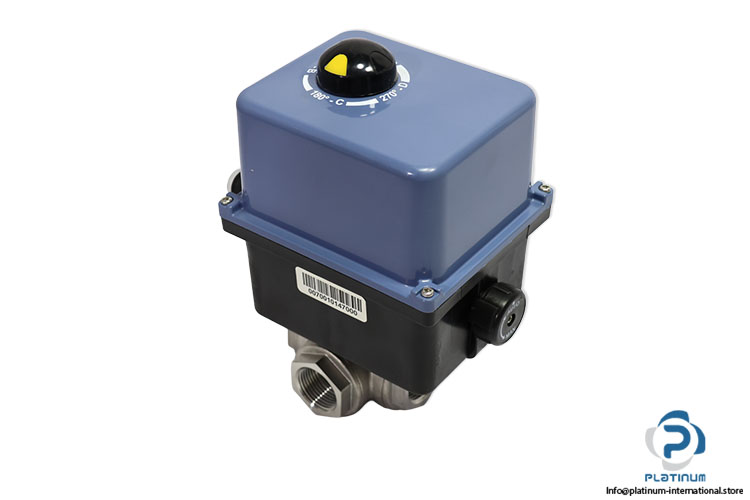

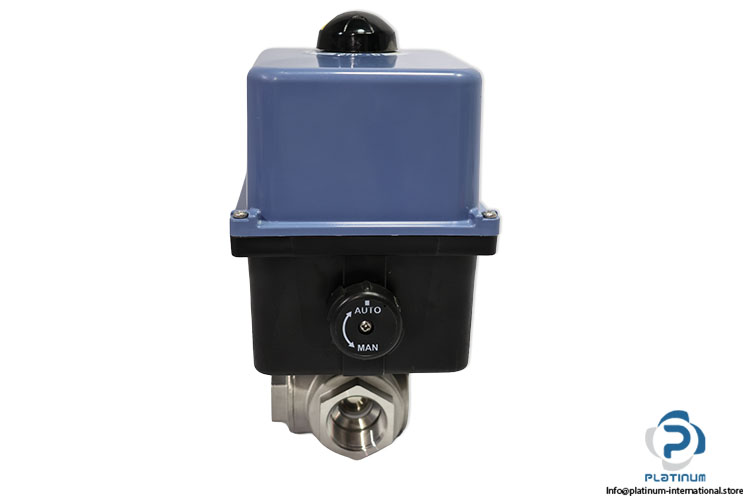

Burkert 3003-225194 Electrical Rotary Actuator
Nouveau
En stock2 unitésPrêt à être expédié
Electrical Rotary Actuator Industrial BURKERT electrical rotary actuator with 90° rotation, 35 Nm torque, IP66 protection, and analog control input for accurate valve automation and process control applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

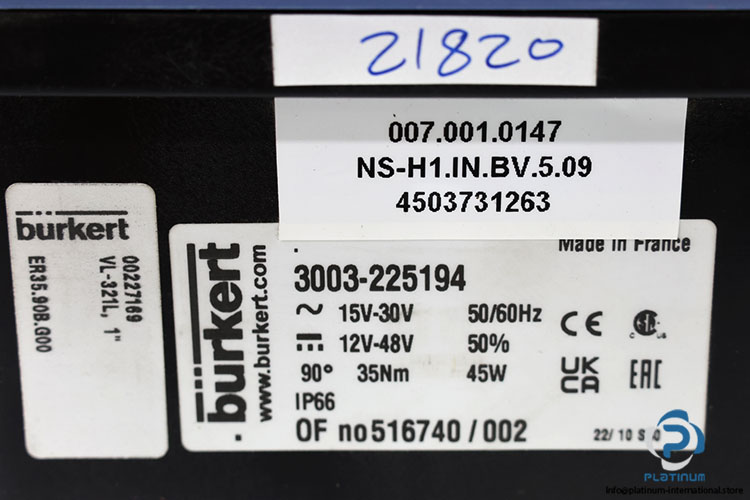

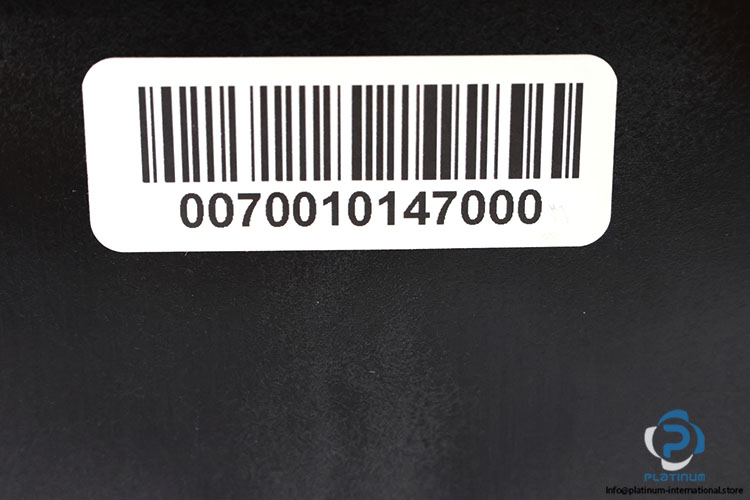

| Ref. No. | OF no516740 / 002 / 0070010147000 |
| Series | 3003 |
| Operating Pressure | 0.2 … 1 MPa |
| Rotation Angle | 90° |
| Operating Voltage | 15/30 V AC, 12/48 V DC |
| Frequency | 50 … 60 Hz |
| Power Consumption | 45 W |
| Analogue Signal | 0 … 10 V / 0/4 … 20 mA |
| Torque | 35 Nm |
| Pneumatic Connection | G1 |
| Protection Class | IP66 |
| Stock Key | AK-005 |
| Condition | New |
| SKU | 1102942 |
| Weight | 7,78 |
