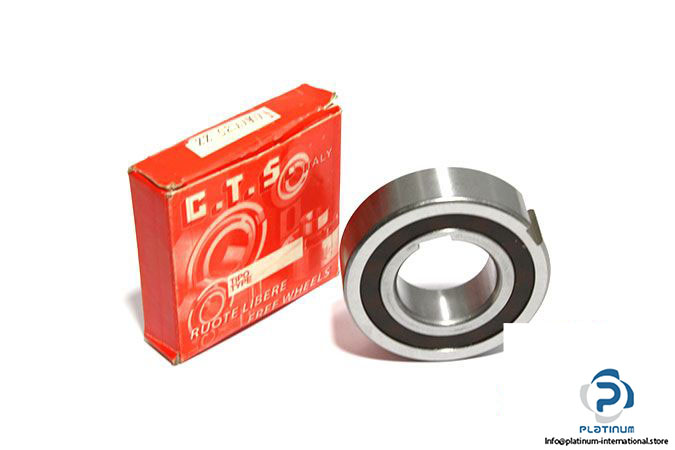

C.T.S Ukcc 25 ZZ ONE WAY Clutch Bearing

Manufacturer: C.S.T ITALY

Type: Freewheel Bearings

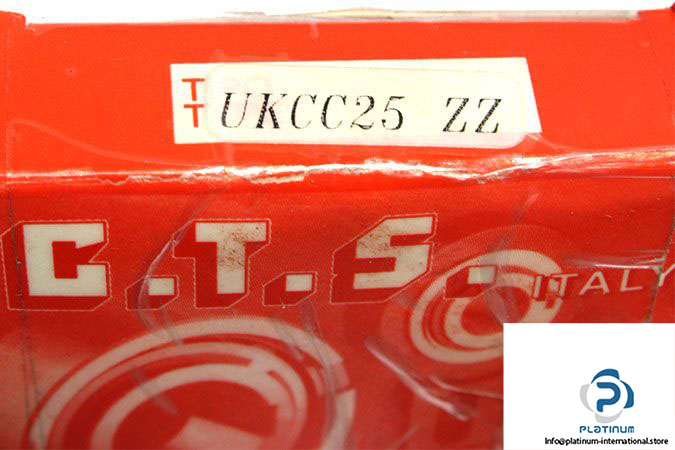

Model: UKCC25 ZZ

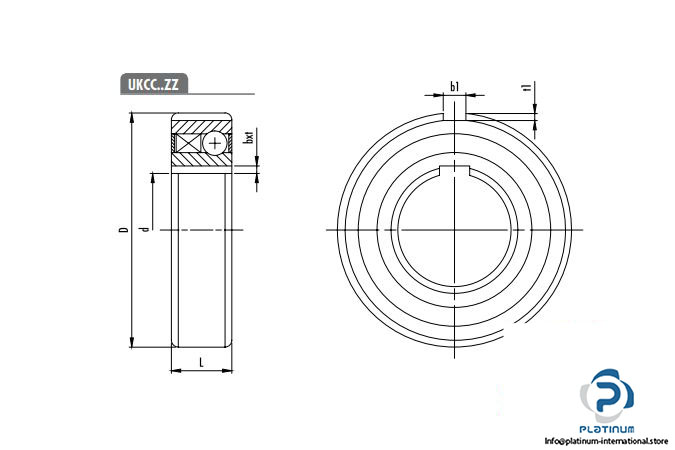

Dimensions

Bore Diameter d: 25 mm

Outer diameter D: 52 mm

Width L: 15 mm

Bore Keyway Width b: 8 mm

Bore Keyway Depth t: 2 mm

Outer Keyway Width b1: 6 mm

Outer Keyway Depth t1: 2 mm

Basic load ratings:

Dynamic: 10700 N

Static: 5450 N

Speed: 5200 rpm

Resistance torque: 0.02 Nm

Working temperature: -10°C ….+60°C
