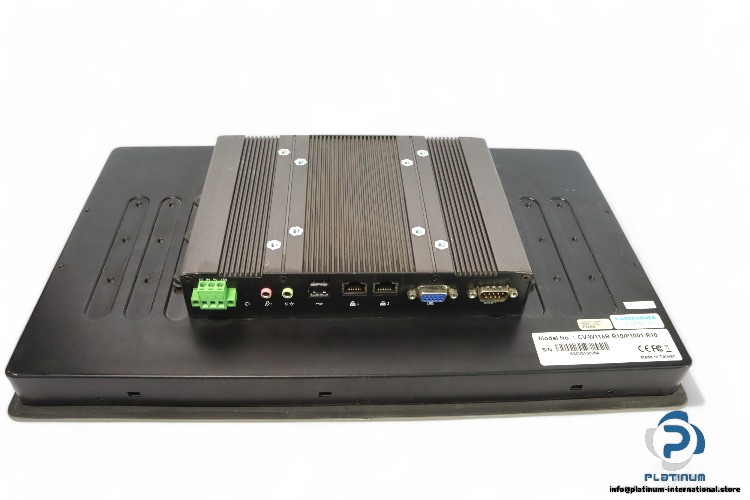

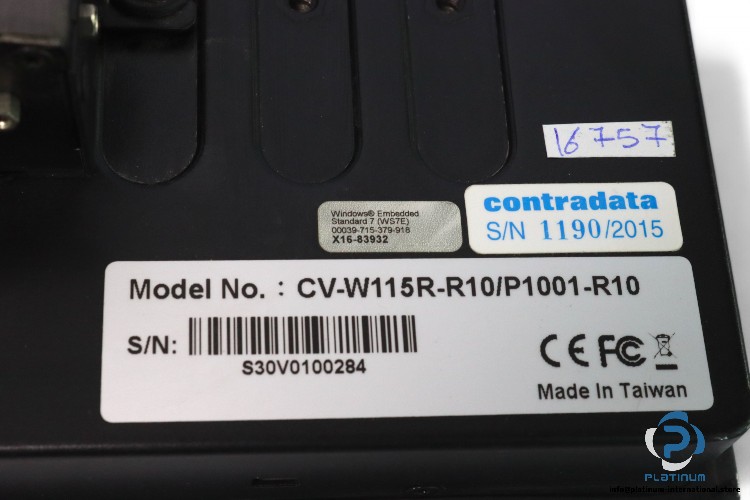

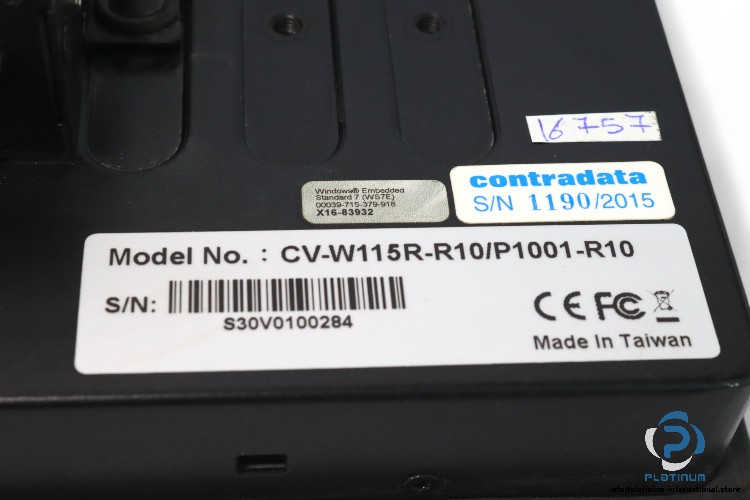

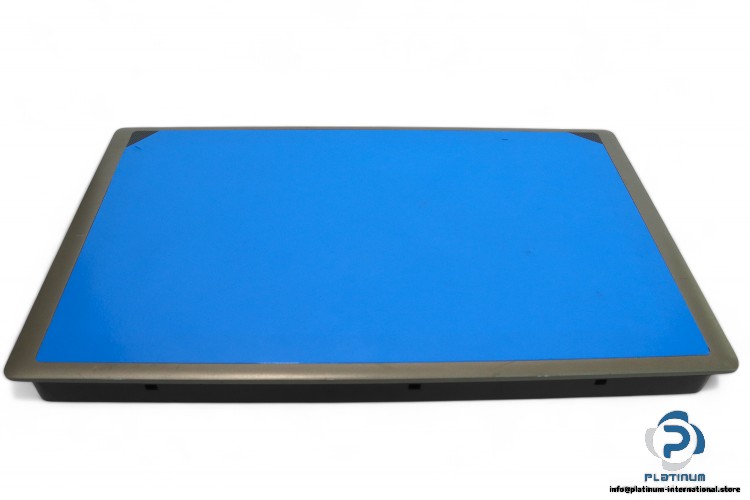

Cincoze CV-W115R-R10/P1001-R10 Touch Panel

Manufacturer: CINCOZE
Type: Touch Panel
Model: CVW115RR10P1001R10

Display Design: 15.6″ TFT
LCD Color: 16.2 M
Resolution: 1366 x 768 (WXGA)
Supply Voltage: 24 V DC
Power Consumption Max.: 11.5 W
Touch Type: Resistive 5-Wire
Graphics:
CDS: 1x Convertible Display System (CDS) Interface
VGA: 1x VGA Connector (1920×1080 60Hz)
DP: 1x DisplayPort Connector (1920×1080 60Hz)
Serial Port: 2x RS-232/422/485 with Auto Flow Control Support, DB9
USB Port: 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Protection Class: IP65
Ambient Temperature: 0 … 60 °C
Dimensions: 254 x 420 x 75 mm
