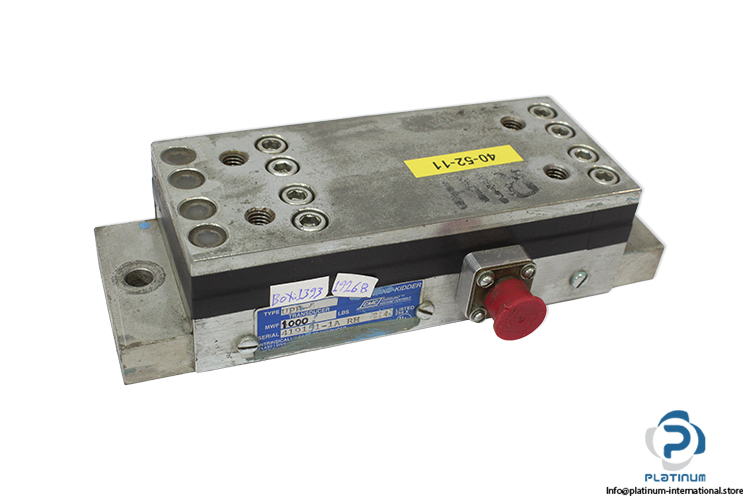

Cleveland-Kidder UPB-5 Load Cell

Name: CLEVELAND-KIDDER UPB-5 LOAD CELL
SKU: 1096661
Availability: LimitedAvailability


cleveland-kidder-upb-5-load-cell(used)-1


Utilisé

En stock1 unitéPrêt à être expédié

Cellule de charge CLEVELAND-KIDDER UPB-5 avec une capacité de 1000 LBS, signal de sortie stable et large plage de température pour les applications industrielles de pesage et de mesure de force.

Fabricant

CLEVELAND CONTROL

SKU

1096661

Catégorie

Load Cells

Condition

Utilisé

10 1000 5 Accuracy Capacity Cell Cleveland Controls Excitation Force High Industrial Kidder LBS Load Machine Measurement Sensor Series UPB VAC VDC weighing

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

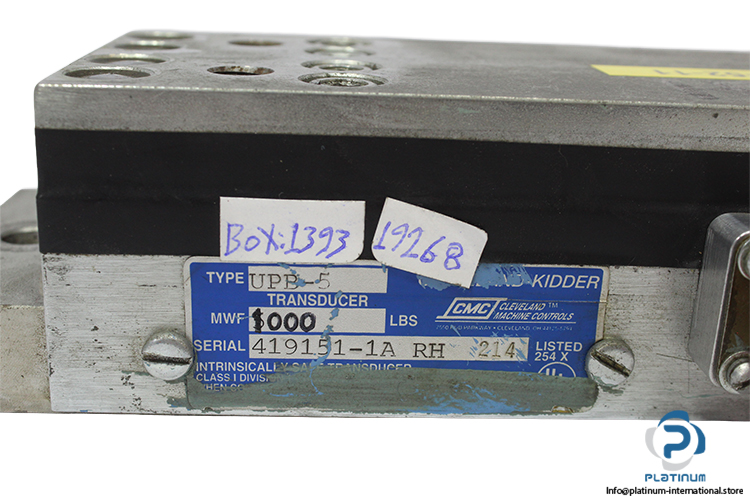

SERIAL no	419151-1A RH 214
code	40-52-11
Series	UPB
Maximum Working Force (MWF)/ Weighing Capacity	1000 LBS
Excitation Voltage	10 VDC or VAC (rms) maximum
Output Signal @ Rated M.W.F.	100 mV nominal / transducer 200 mV nominal / pair (With 10 VDC or VAC rms excitation voltage) Operating Temperature Range: 0°F to 200°F
Connection	g1/8
Condition	Used
SKU	1096661
Weight	4,7
