Festo 191278 Double Solenoid Valve

FESTO JMN2H-5/2-D-01 DOUBLE SOLENOID VALVE WITH COIL

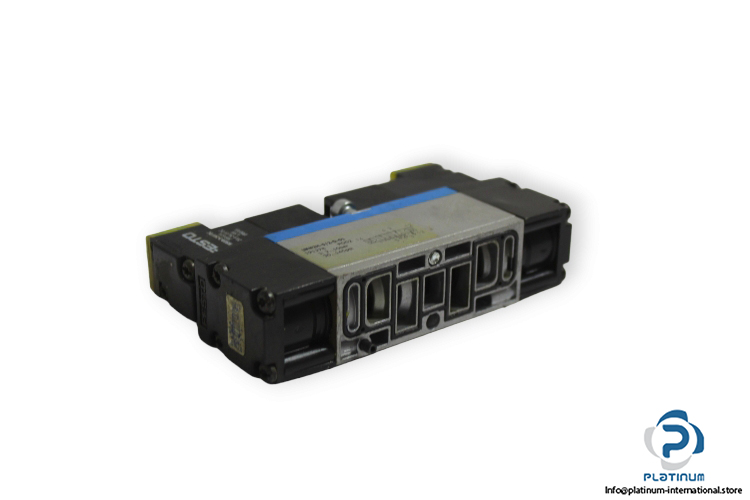

The FESTO JMN2H-5/2-D-01 is a high-performance double solenoid valve engineered for advanced pneumatic systems. Featuring a robust piston slide design and bistable 5/2 functionality, it ensures efficient directional control of air. This unit includes the FESTO MSEB-3-24V DC solenoid coil, delivering reliable electrical actuation with low power consumption.

Manufacturer: FESTO
Type: Double Solenoid Valve

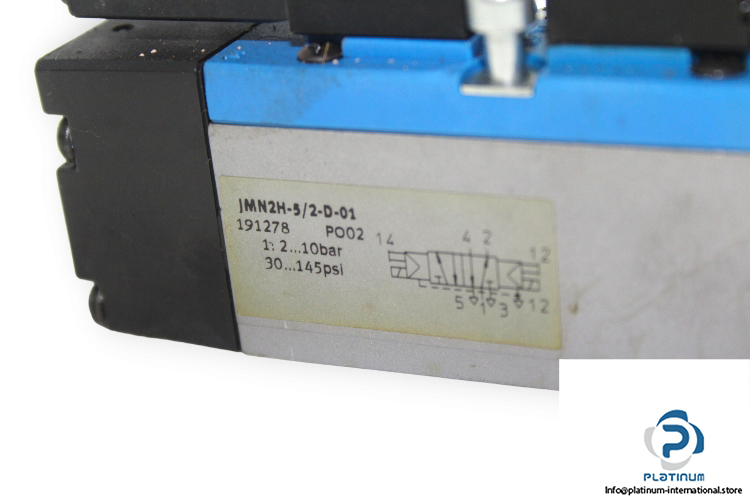

Model: JMN2H-5/2-D-01
Part No.: 191278

Valve Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 5/2 bistable
• Type of Actuation: Electrically
• Operating Pressure: 2 / 10 bar
• Nominal Flow Rate: 1000 l/min
• Pneumatic Connection: Connection plate size 26 mm
• Material: Die-cast aluminium
• Ambient Temperature: -10 / 50 °C

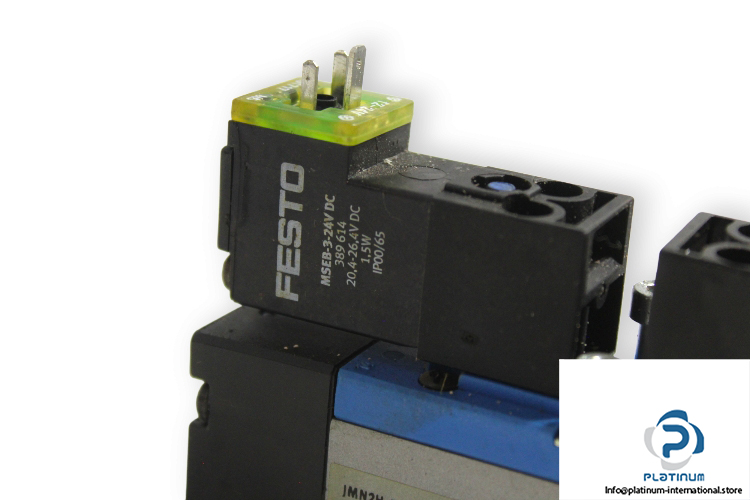

Solenoid Coil Attachment: FESTO MSEB-3-24V DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 389614

Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 1.5 W
• Protection Class: IP00 / IP65
