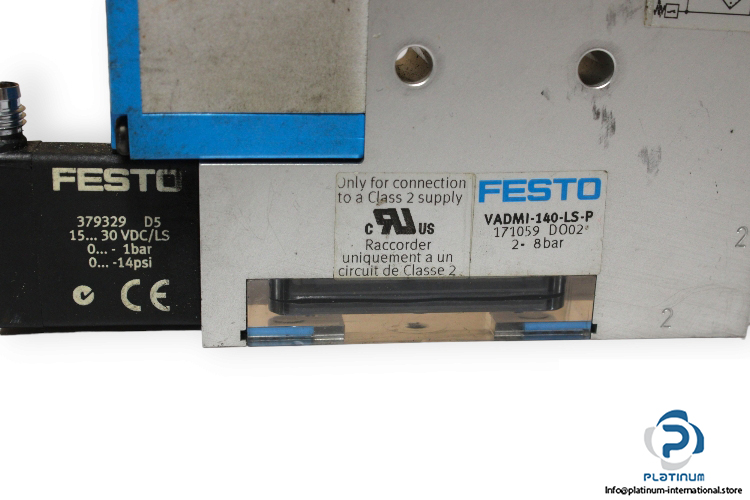

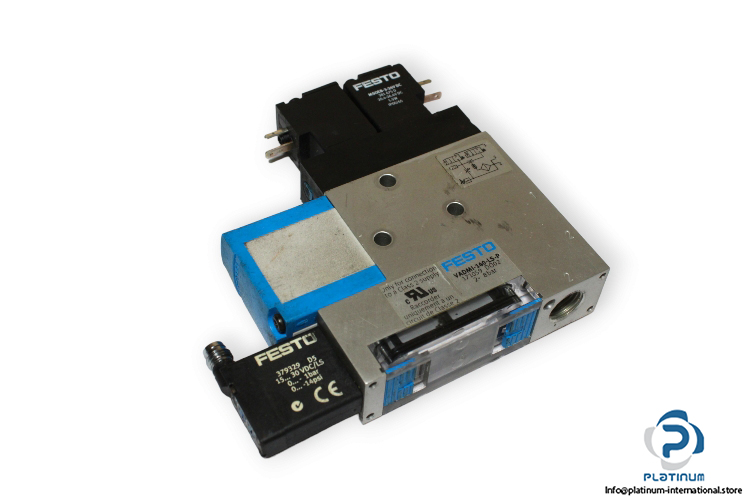

Festo 171059 Vacuum Generator
Nouveau
En stock4 unitésPrêt à être expédié
Vacuum Generator FESTO VADMI-140-LS-P vacuum generator with integrated control components, featuring high-performance vacuum generation, durable aluminum housing, and compatible solenoid coil and vacuum switch.
14024VDC3379329coilControlFestoGeneratGeneratorIndustrialLSMsoebpPneumaticPNPsolenoidSwitchSystemvacuumVadmiWith
Utilisé
En stock
Ce produit est également disponible en occasion
Voir la version utilisée →
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Part No. | 171059 |
| Width | 22 mm |
| Operating Pressure | 2 / 8 bar |
| Filtration Grade | 40 micron |
| Nominal Width of Laval Nozzle | 1.4 mm |
| Switching Contact | Normally Open (NO) |
| Valve function | Closed |
| Switching output | PNP |
| Housing material | Wrought aluminum alloy |

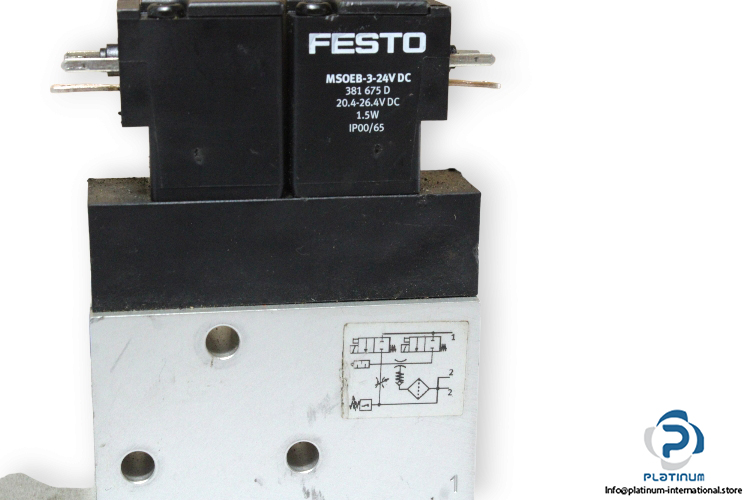

| Attachment 1 | FESTO 381675 Solenoid Coil |
| Model,Solenoid Coil | MSOEB-3-24VDC |
| Operating Voltage | 20.4 / 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
| Attachment 2 | FESTO 379329 Vacuum switch |
| Operating Voltage Range,Vacuum switch | 15 / 30 V DC |
| Operating Pressure,Vacuum switch | 0 / 1 bar |
| Port Size,Vacuum switch | G1/8 |
| Condition | New |
| SKU | 1008302 |
| Weight | 0,3 |
