Festo 115517 Double Solenoid Valve With Bridge
Utilisé
En stock3 unitésPrêt à être expédié
DOUBLE SOLENOID VALVE
FESTO MVH-5/3E-1/8 B-VI valve with 119807 solenoid coil offers 5/2 way control, 1000 l/min flow rate, and electrical actuation for reliable pneumatic automation.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

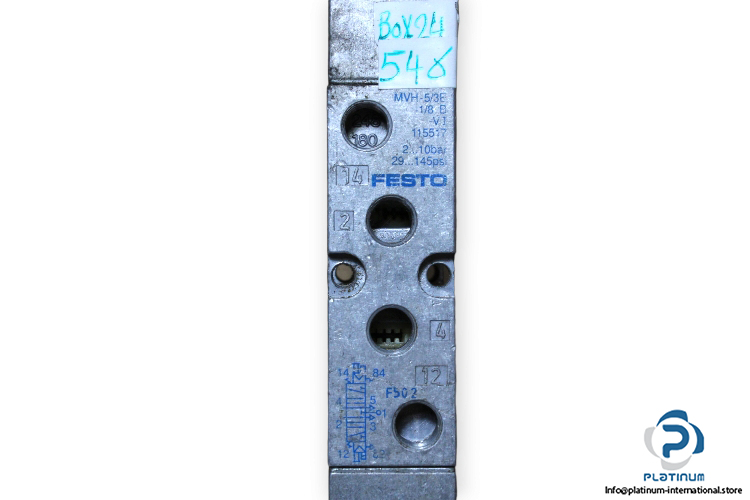

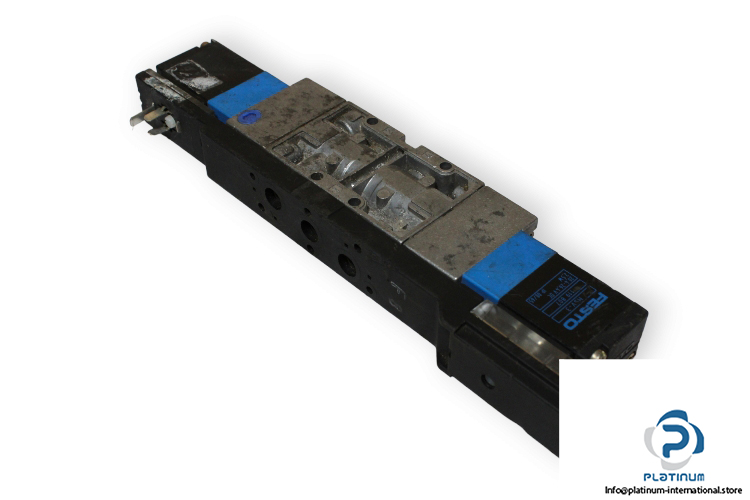

FESTO MVH-5/3E-1/8 B-VI DOUBLE SOLENOID VALVE WITH 119807 SOLENOID COIL
The FESTO MVH-5/3E-1/8 B-VI is a high-performance double solenoid valve engineered for precise pneumatic control. Designed with a piston slide mechanism and built from durable die-cast aluminum, it ensures reliable performance in industrial automation systems. This unit is paired with the FESTO 119807 solenoid coil for efficient electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MVH-5/3E-1/8 B-VI
Part No.: 115517
| Fluid | Air |
| Design | Piston slide |
| Function | 5/2 way |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

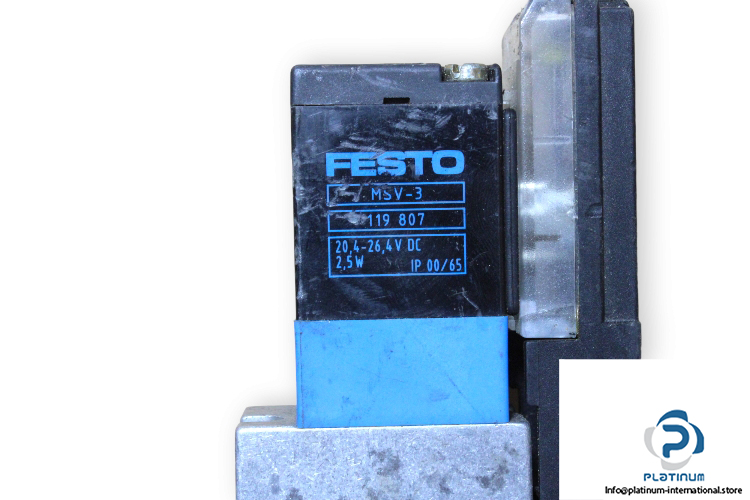

| Attachment | FESTO 119 807 Solenoid Coil |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
